Motor axle nut M12 with washers for KuKirin G2 Pro

M12 nut with three washers for motor axle

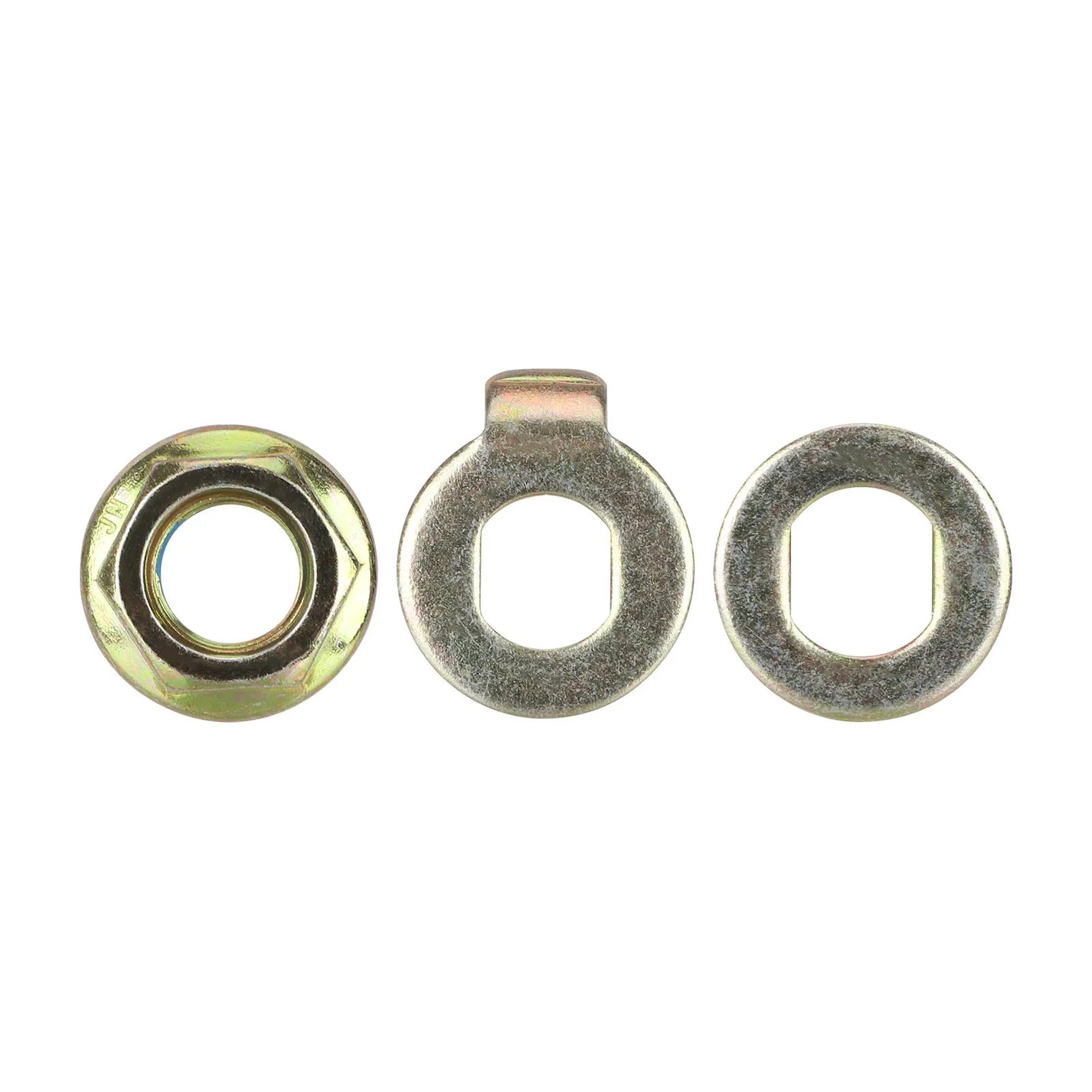

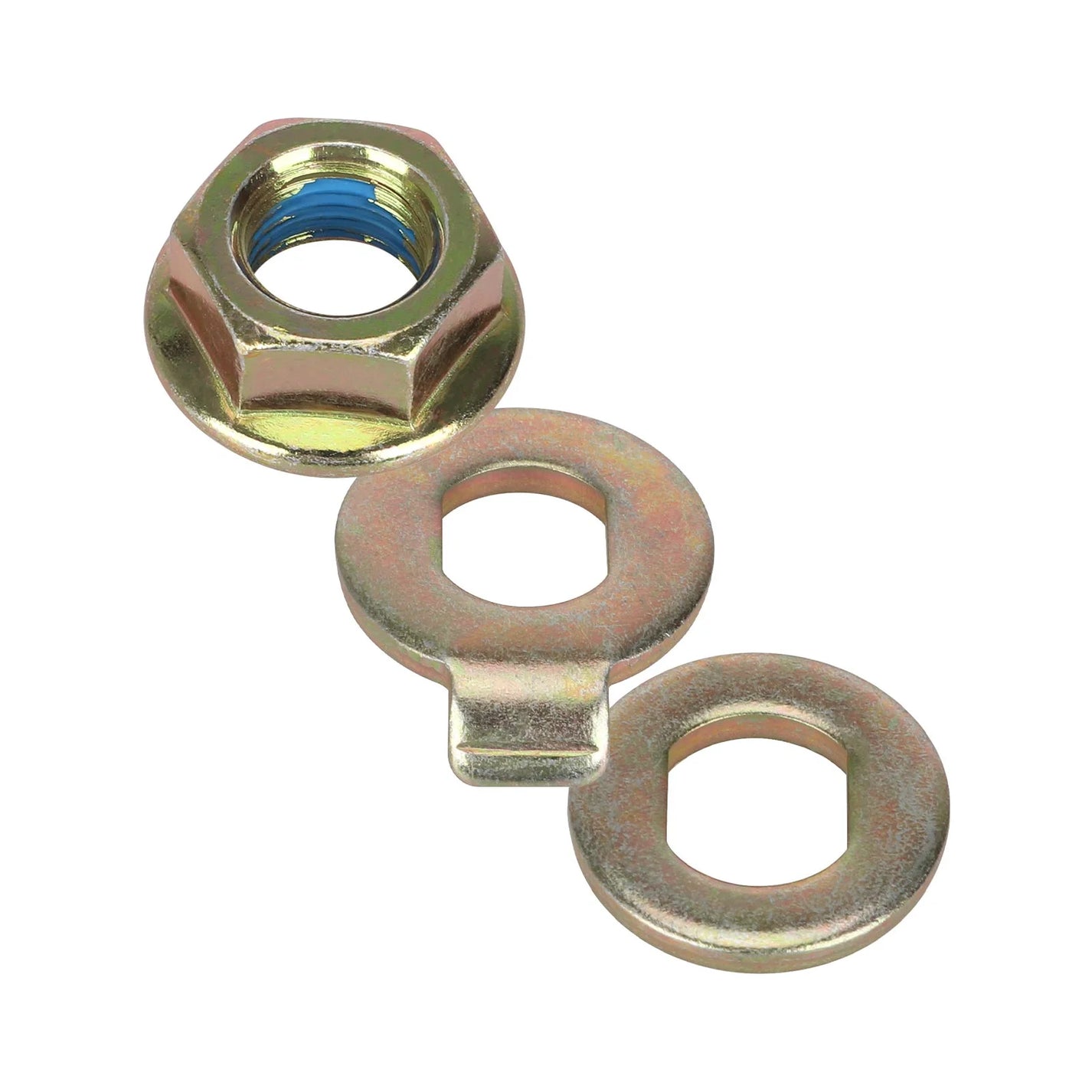

The set consists of a gold-colored M12 nut and three washers, including a tabbed washer. It is intended for securing a compatible M12-threaded motor axle.

Features and fitment

• Model: KuKirin G2 Pro.
• M12 motor axle nut and three washers.
• Gold-colored finish; tabbed washer included.

Approximate dimensions

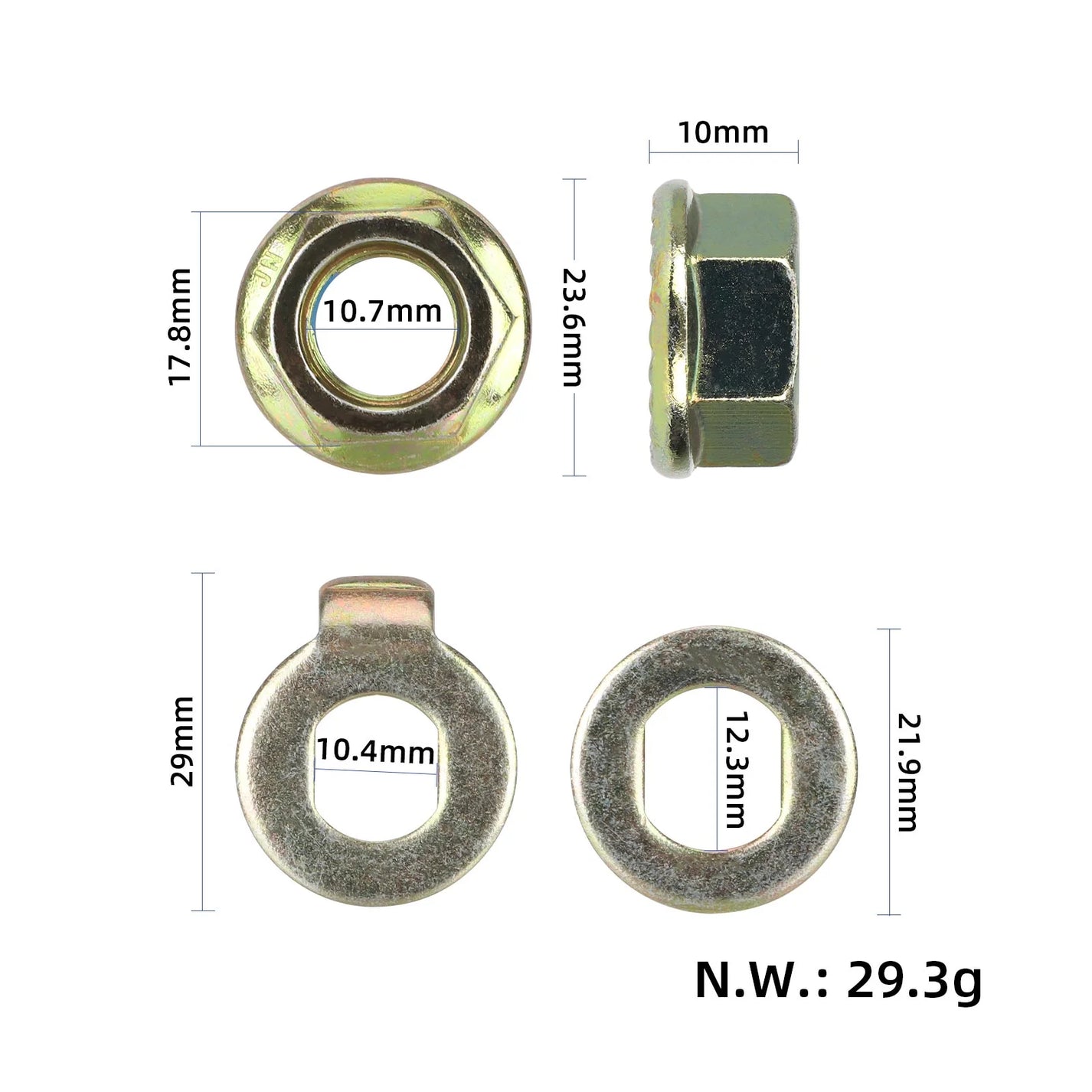

• M12 nut: wrench size 17.8 mm, flange diameter 23.6 mm, height 10 mm.
• Inner diameter at top of nut thread: 10.7 mm.
• Safety washer: height with tab 29 mm, width of flat part of opening 10.4 mm.
• Round washer: outer diameter 21.9 mm, inner diameter 12.3 mm.

Compare the M12 thread, the shape of the flattened part of the axle, and the position of the safety tab. Install the washers in the prescribed order and use the specified tightening torque for your assembly.

Correct order of mounting parts

• Note the order and position of parts before disassembly. Inspect the threads and use the appropriate tool that will not damage the head or nut.
• Tighten the screws or nut by hand first, then use the torque specified in the assembly manual. After assembly, check for secure mounting and free rotation of moving parts.
