Motor axle nut M14 with three washers for KuKirin G2 Master

M14 nut and three washers for motor axle

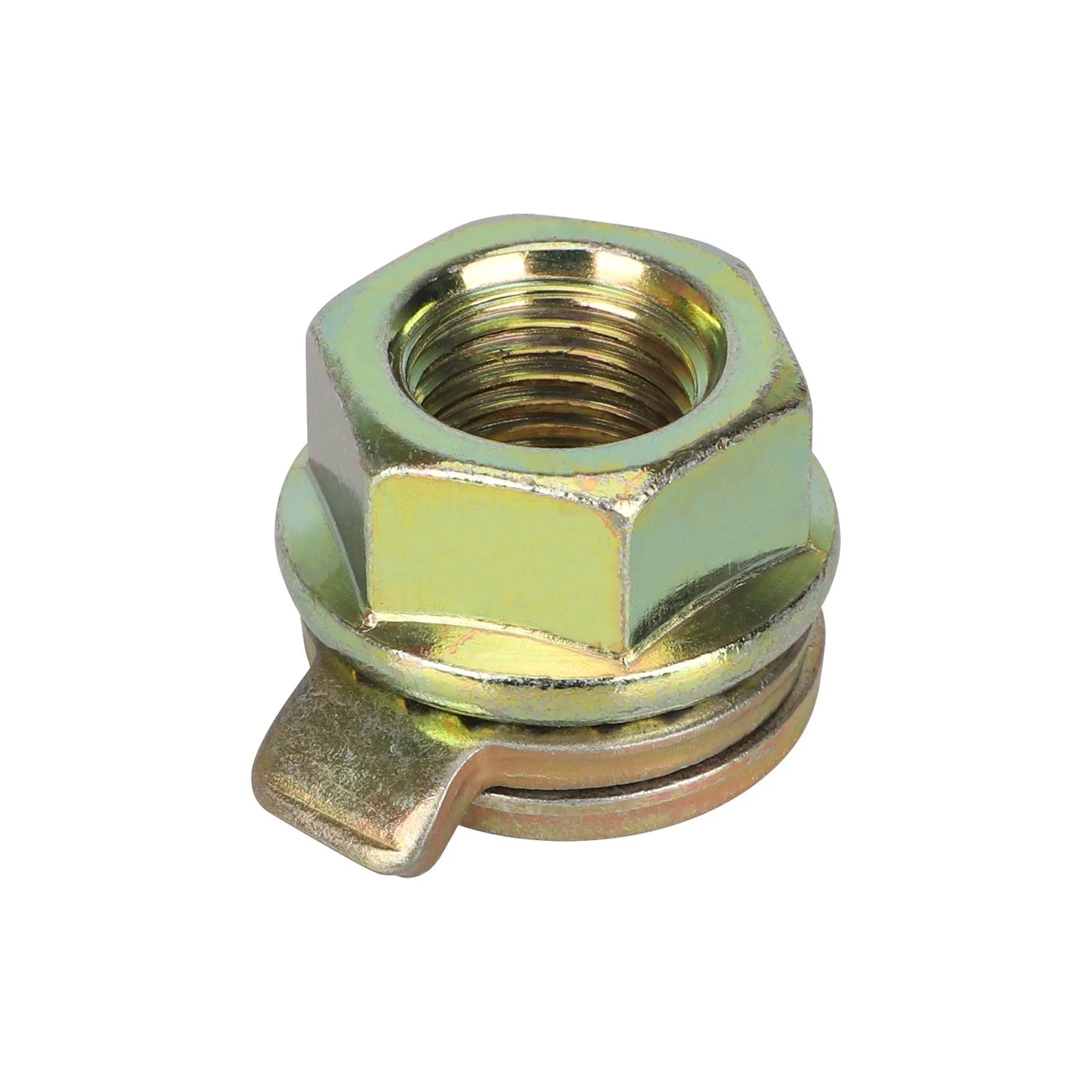

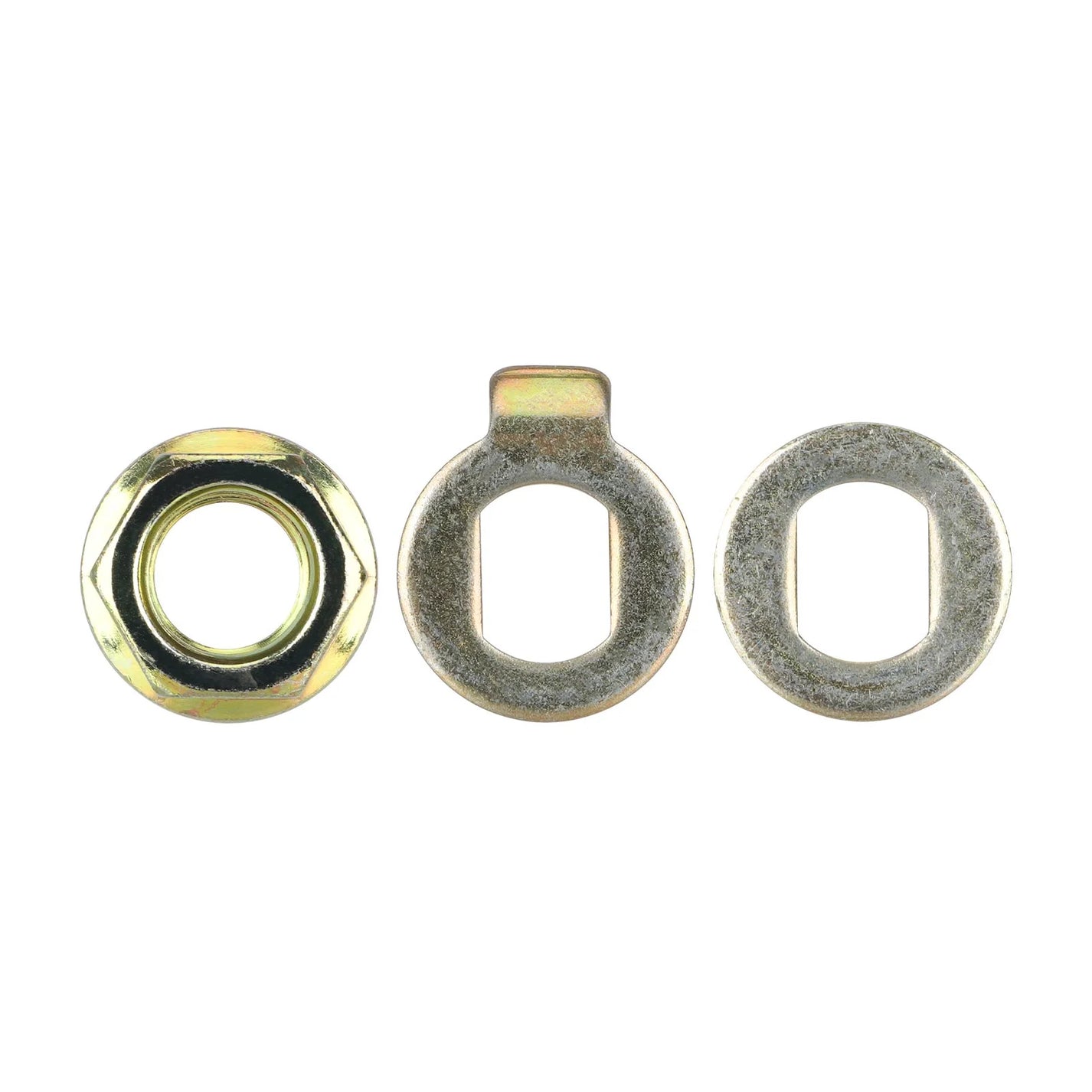

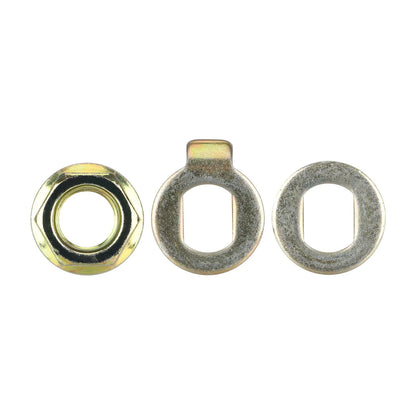

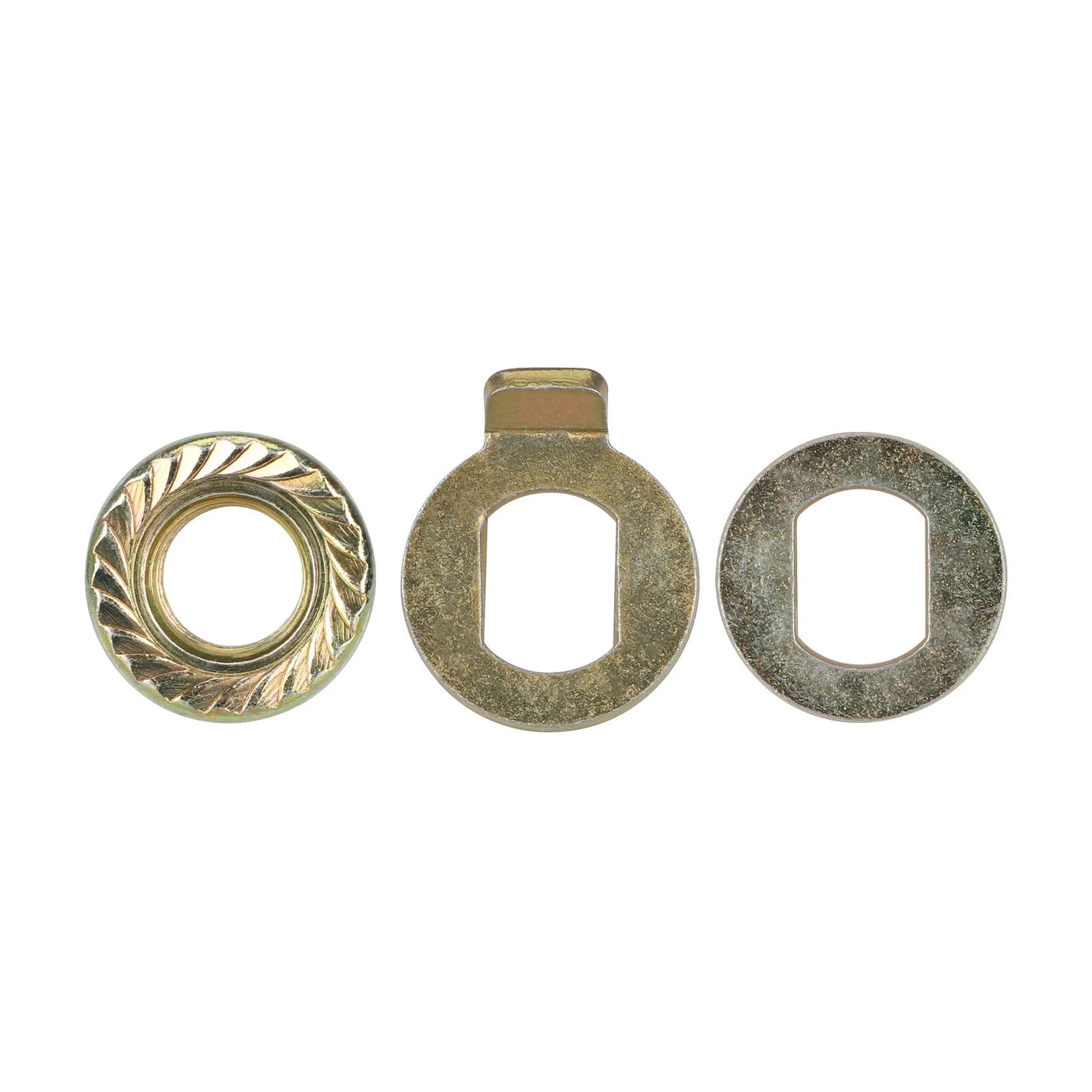

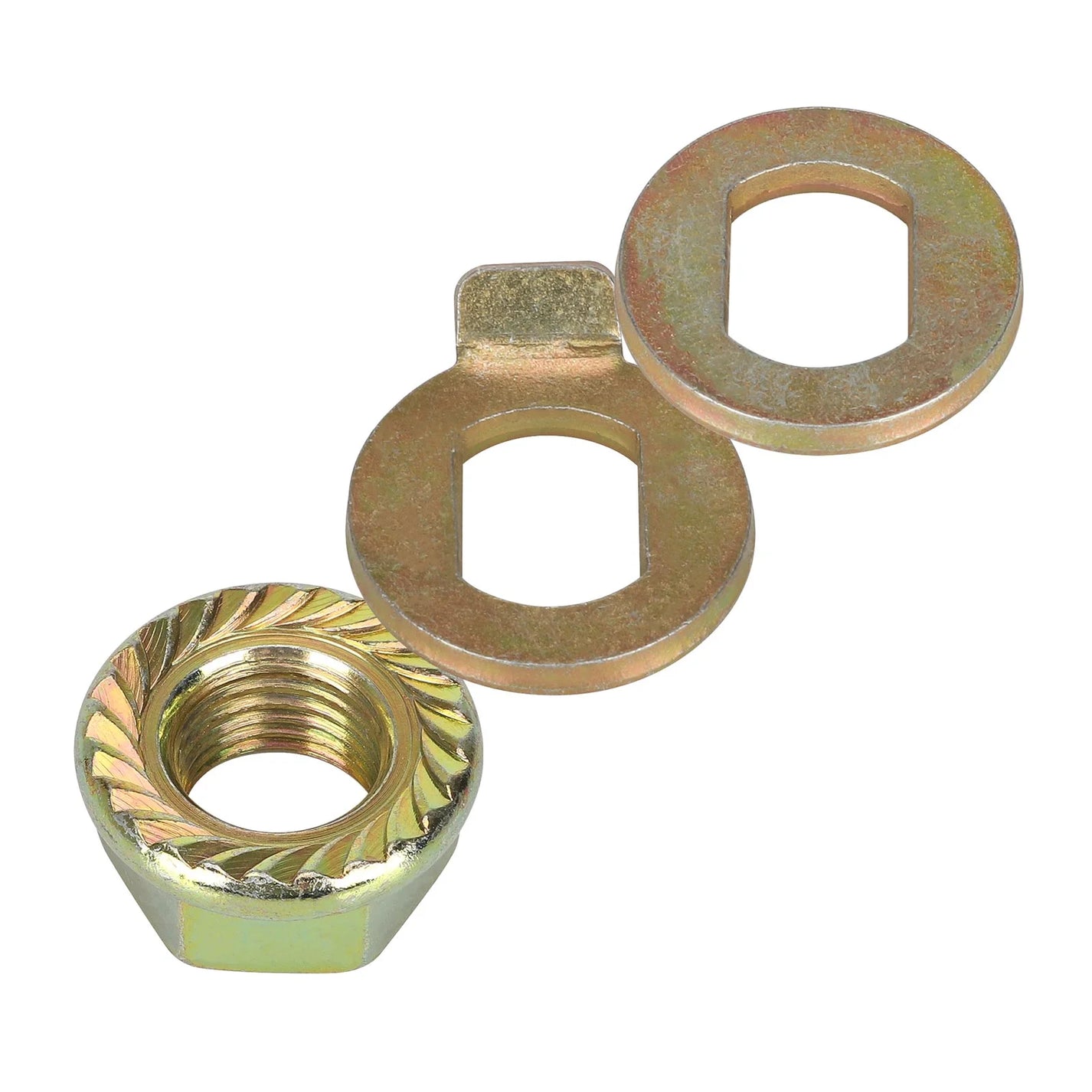

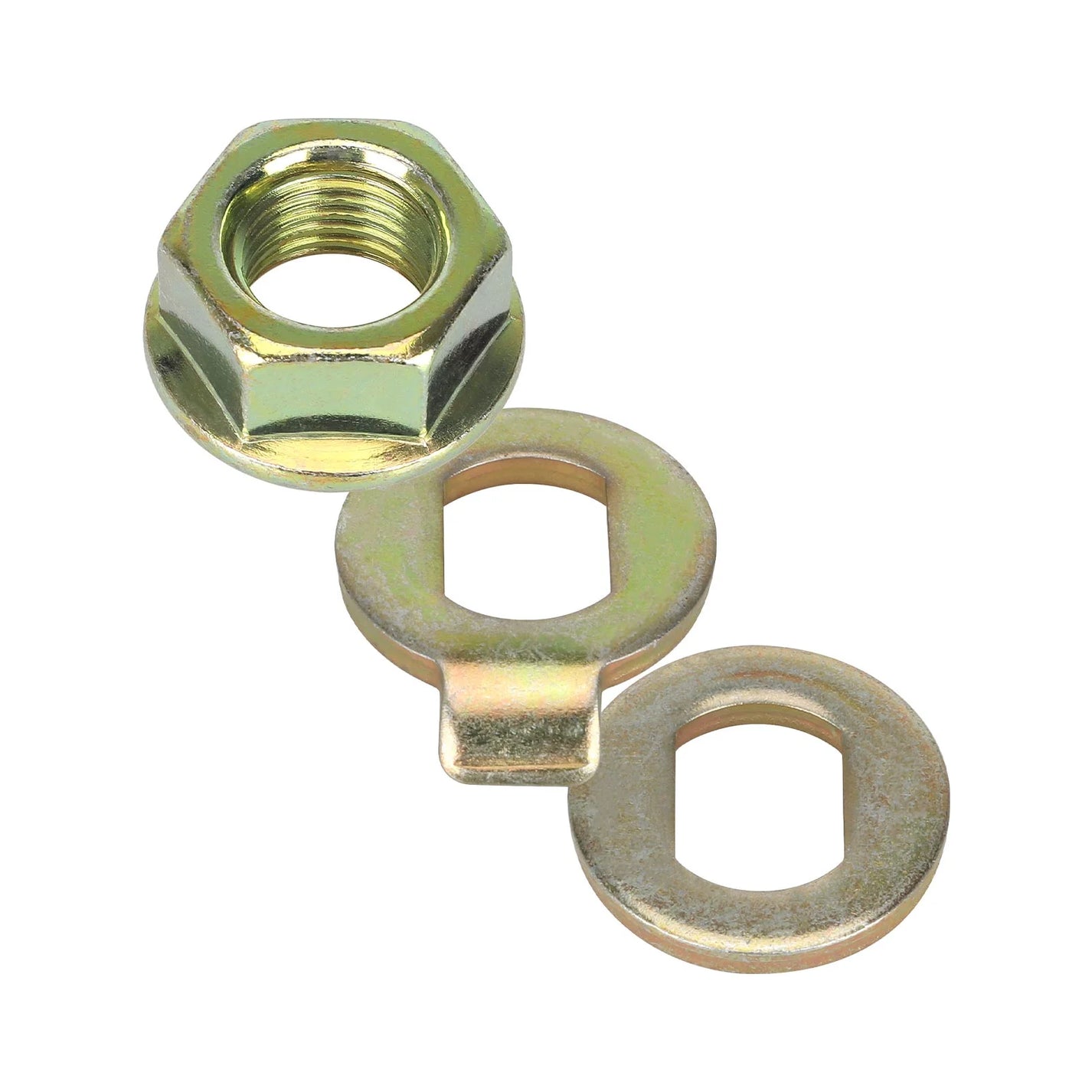

The kit contains a gold-colored M14 nut and three washers, one of which has a shaped tab. These parts are intended for the correct fastening of the corresponding motor axle.

Features and fitment

• Model: KuKirin G2 Master.
• Motor axle nut with three washers; yellowish metal finish; 14 mm nominal design.

Approximate dimensions

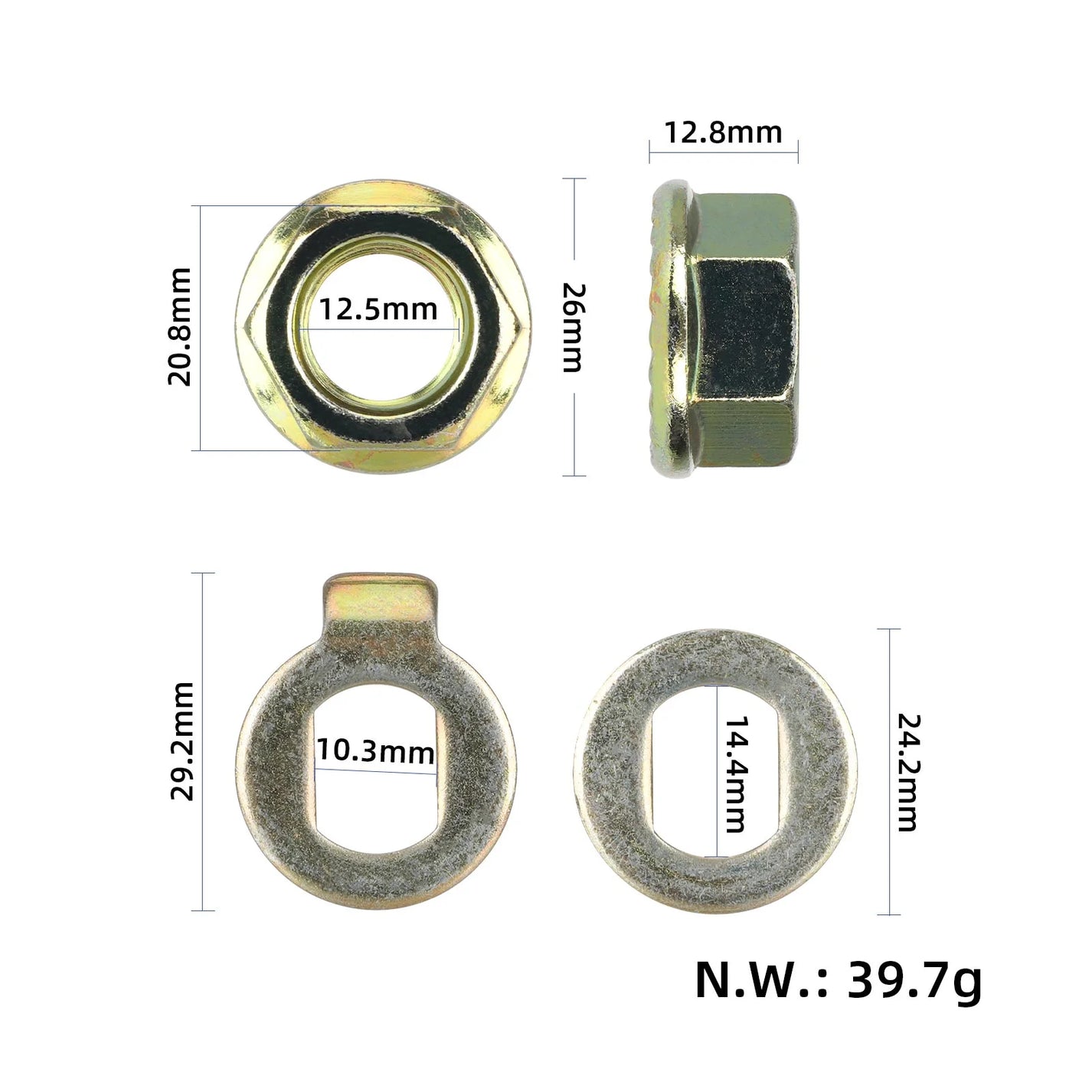

• M14 nut: width across flats 20.8 mm, flange diameter 26 mm, height 12.8 mm.
• Nut thread inner opening: 12.5 mm.
• Washer with tab: total height 29.2 mm, opening width 10.3 mm.
• Oval washer opening: height 14.4 mm.
• Outer diameter of washer without tab: 24.2 mm.

The washer tab must seat into the intended position, and the flat parts must sit flush without tilting. Check the axle thread and the order of existing washers before replacing; do not attempt to fix damaged threads by overtightening.

Correct order of fastening parts

• Before disassembling, note the order and position of the parts. Inspect threads and use appropriate tools that do not damage the head or nut.
• Tighten screws or the nut by hand first, then use the torque specified in the assembly manual. After assembly, check for secure fastening and free movement of moving parts.
