Original Front Headlight for Electric Scooter KuKirin G2 Max

Round headlight with four lighting segments

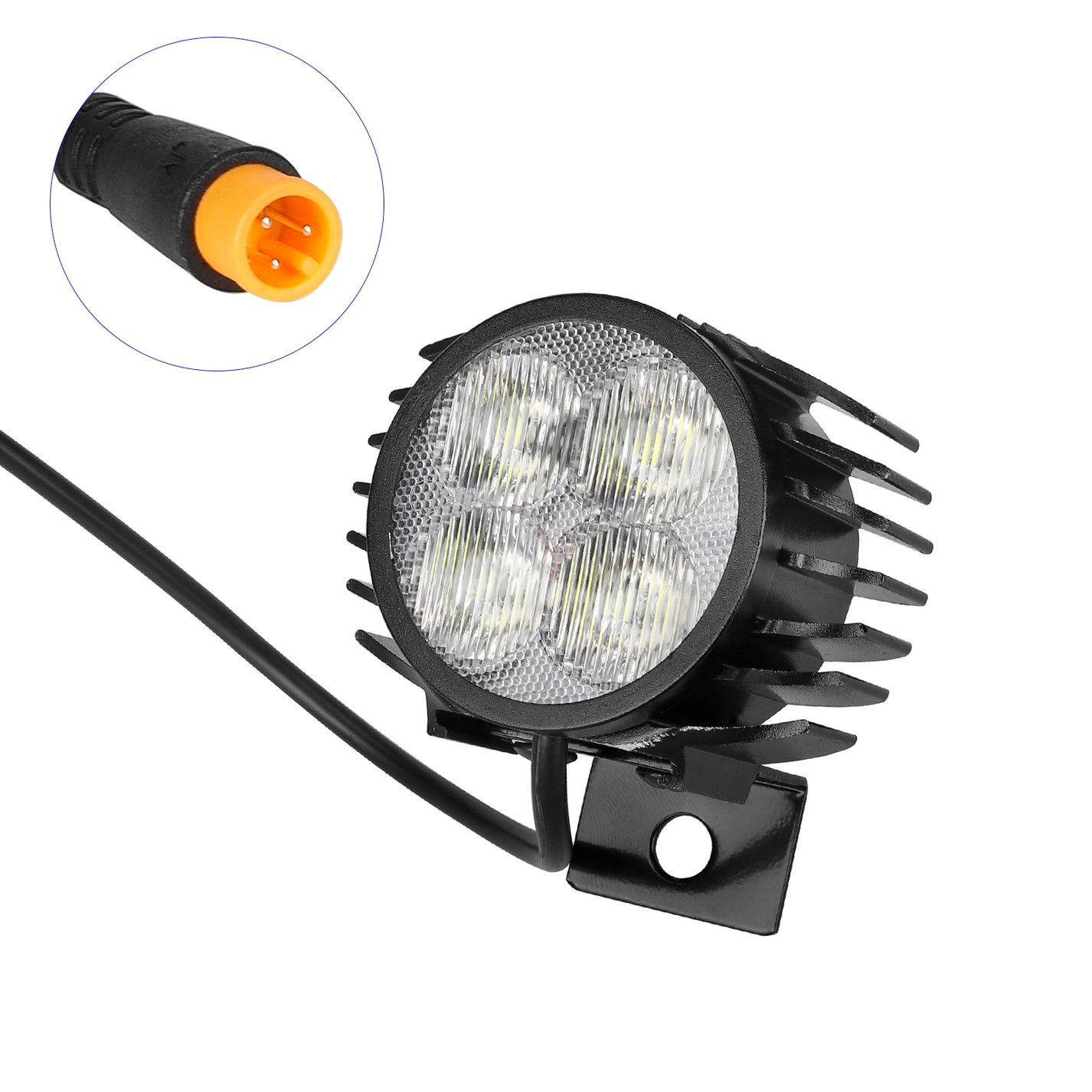

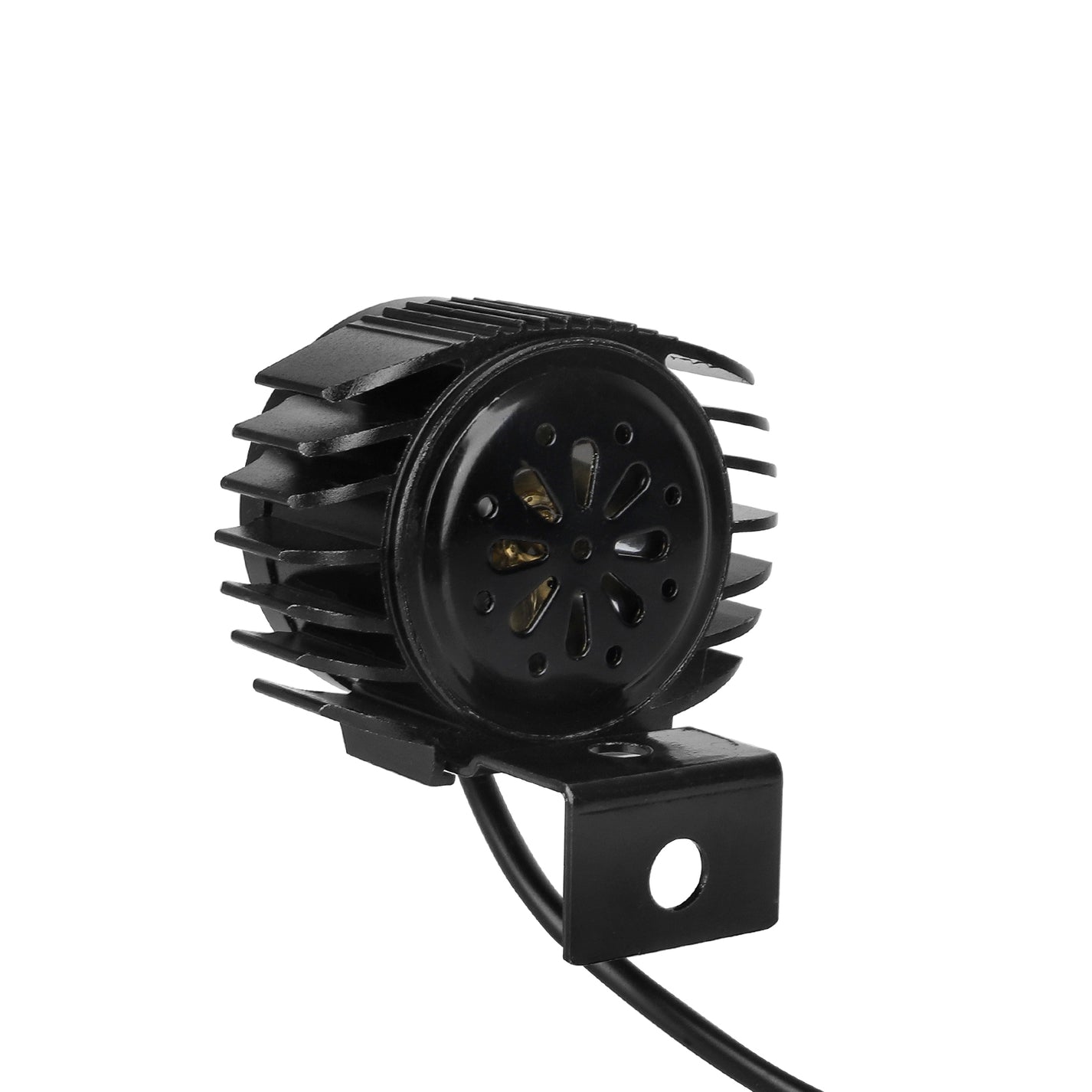

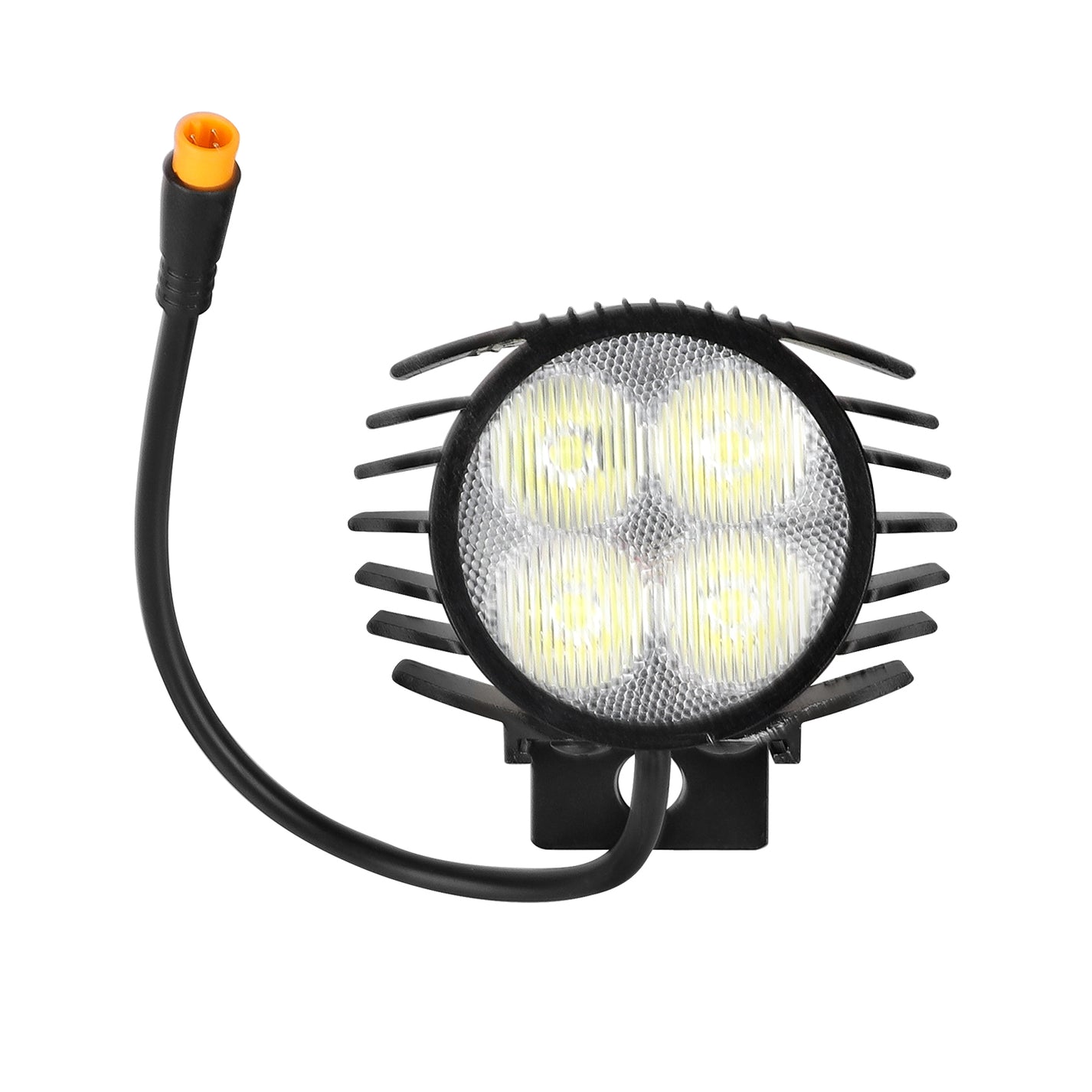

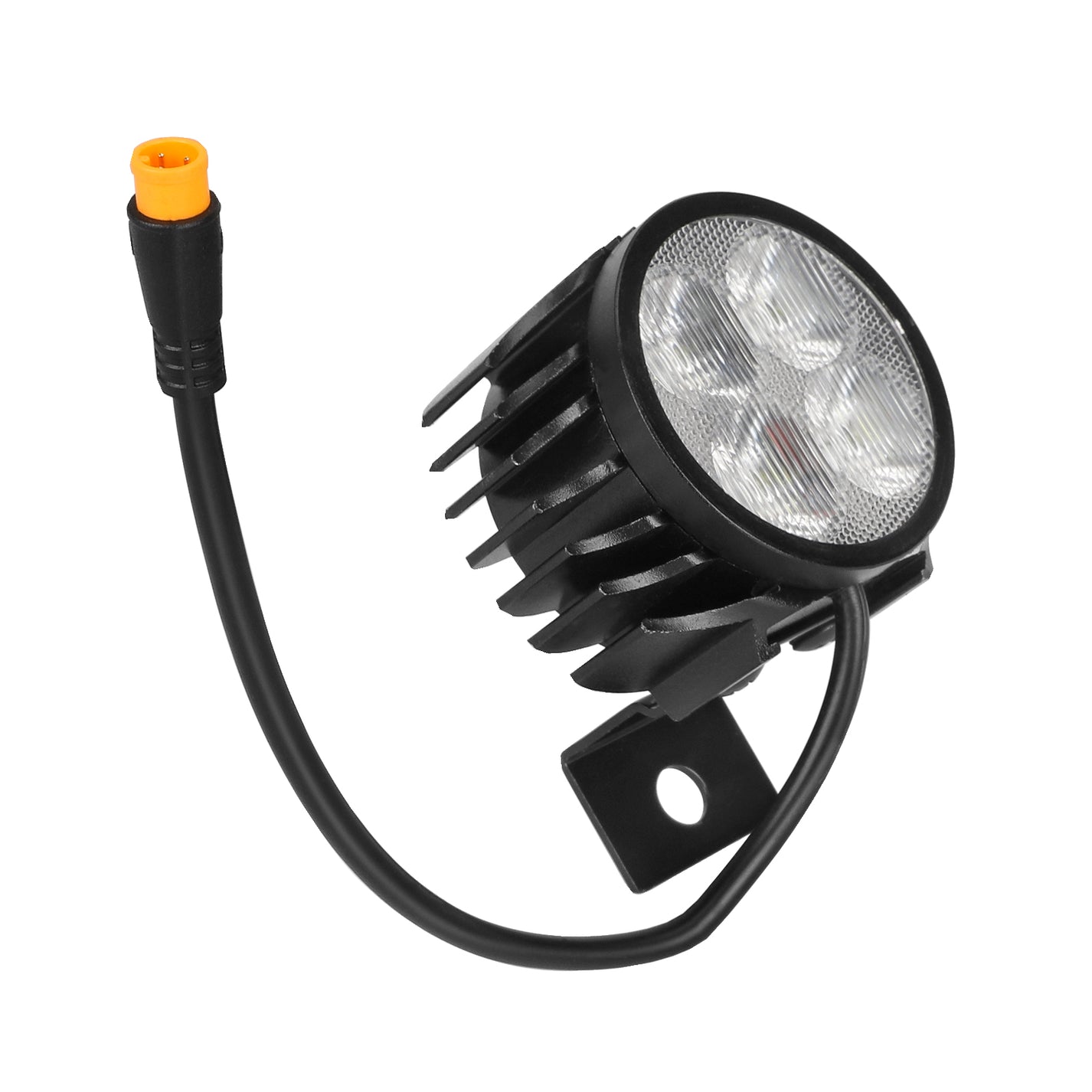

The front headlight features four lighting segments housed in a round black casing with cooling fins. The metal bracket beneath the light allows for mounting and angle adjustment, and the cable terminates in an orange connector.

Features and fitment

• Model: KuKirin G2 Max.
• Round front headlight with four lighting segments, bracket, and orange connector.

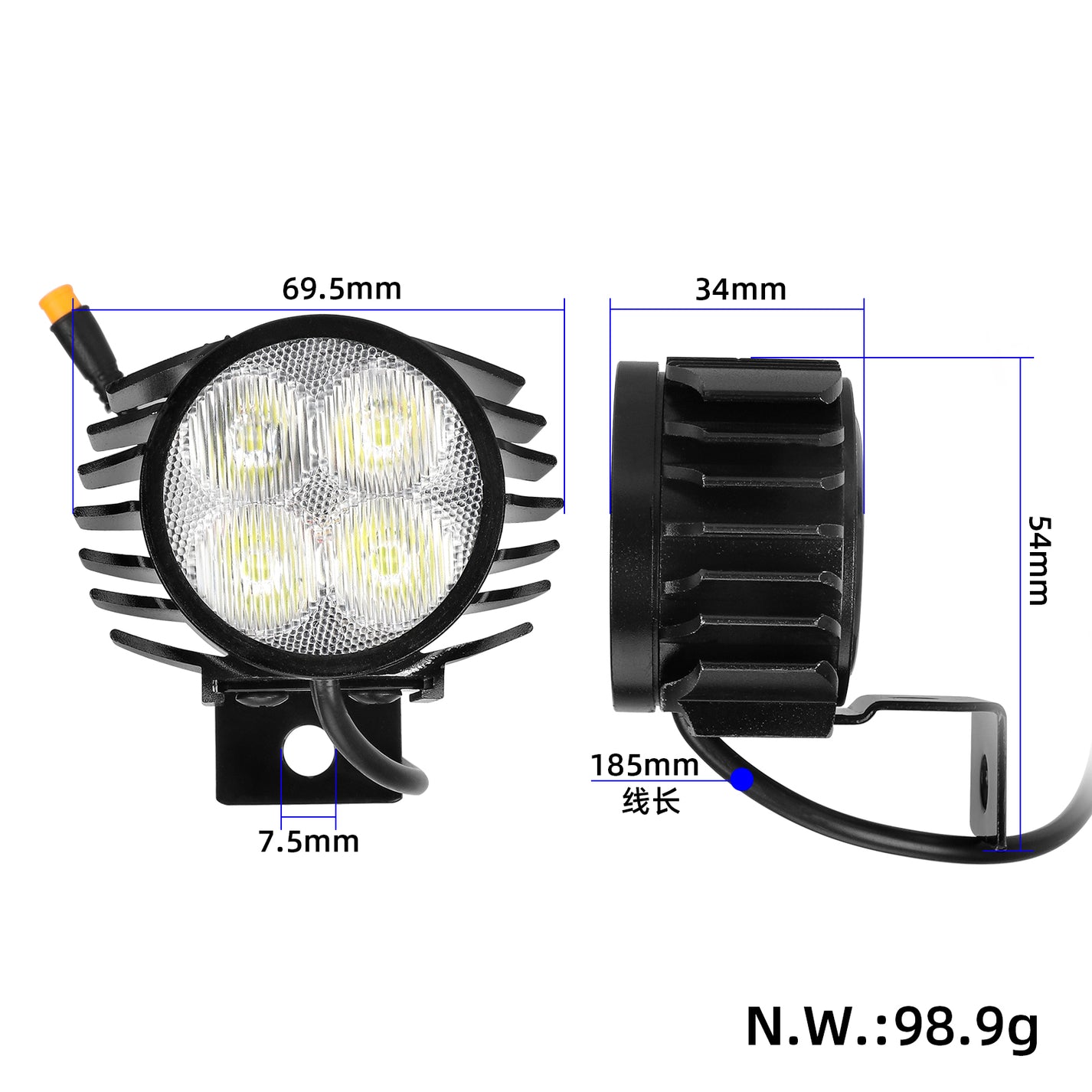

Approximate dimensions

• Light with bracket: 69.5 × 54 × 34 mm.
• Mounting hole diameter: 7.5 mm.
• Cable: 185 mm.

Check mounting, connector, and power supply. Adjust the beam towards the road to avoid blinding other traffic participants.

Installation and use

Attach the headlight to the appropriate bracket and connect it to the designated power output. Aim the beam at the road without blinding others. Check the operation while turning the handlebars to ensure the cable is not under tension.
