LCD display with front light, version B for KuKirin G4

LCD display with front light in version B

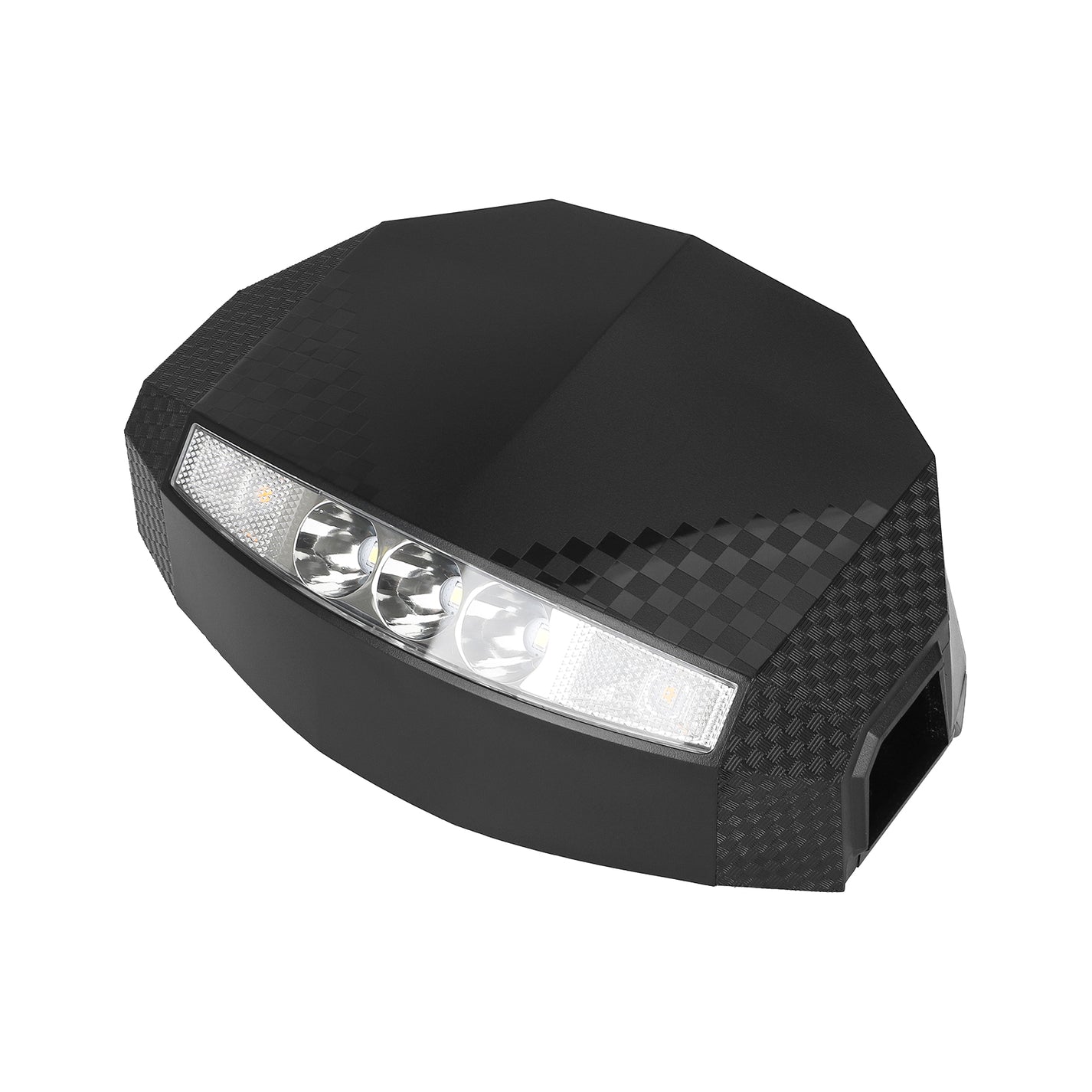

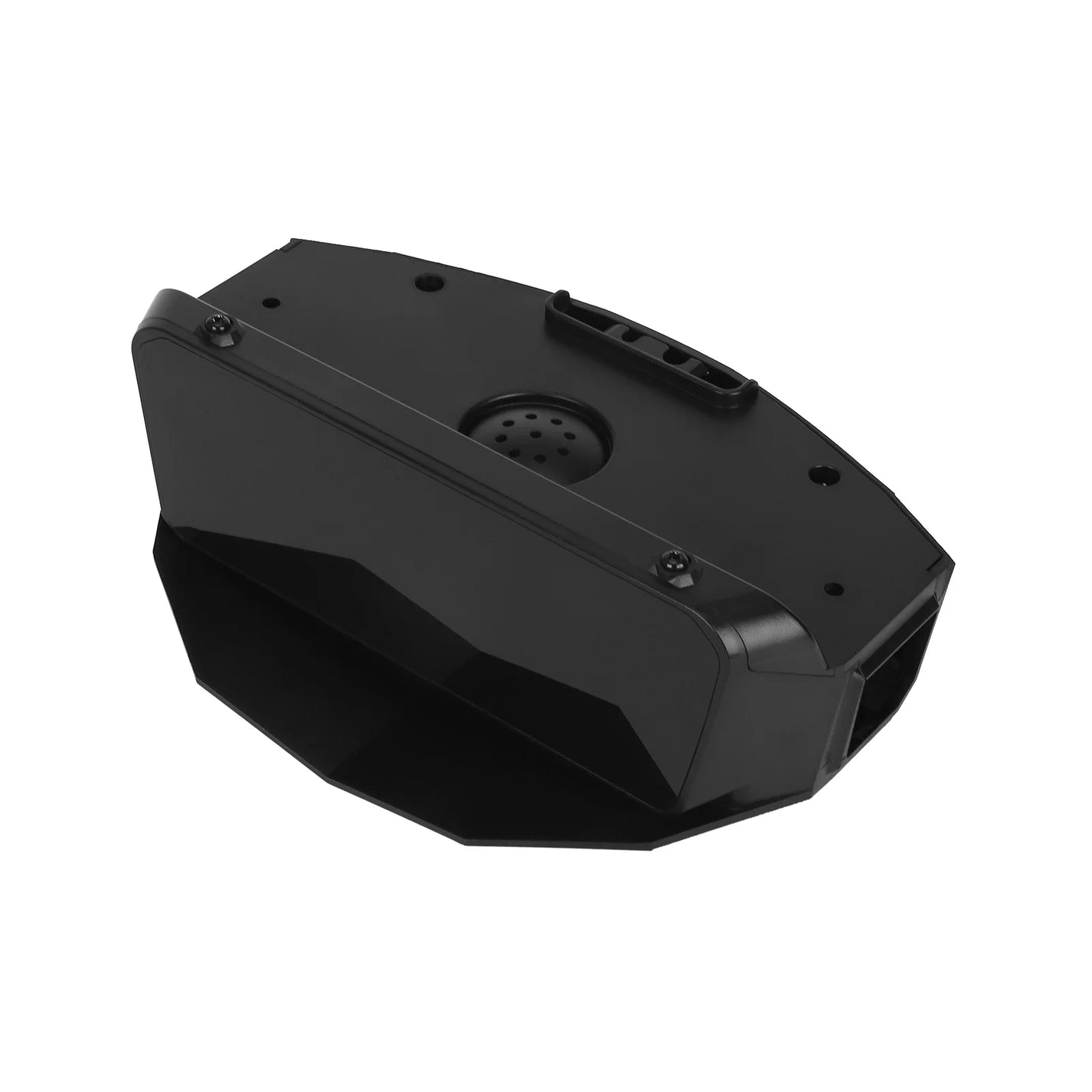

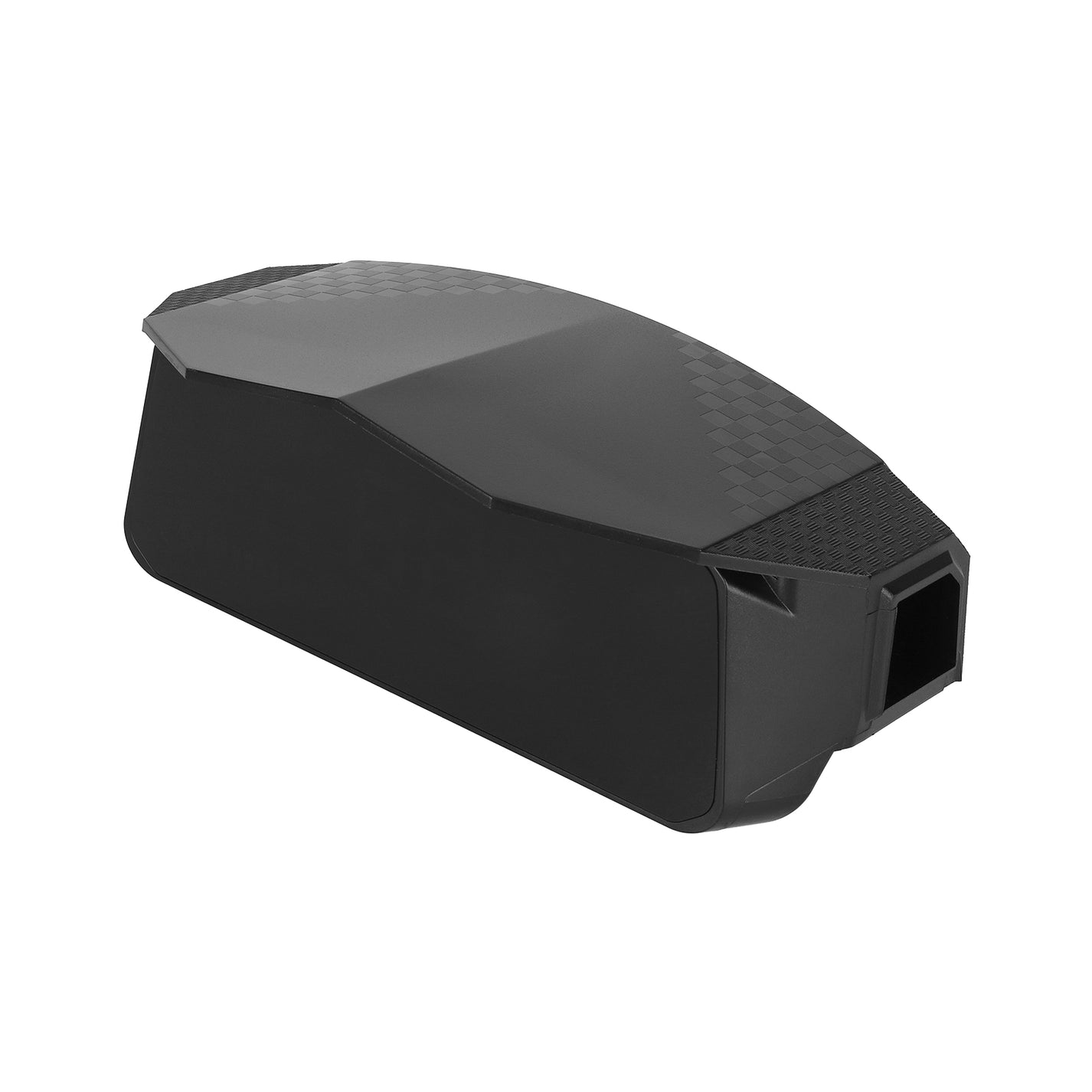

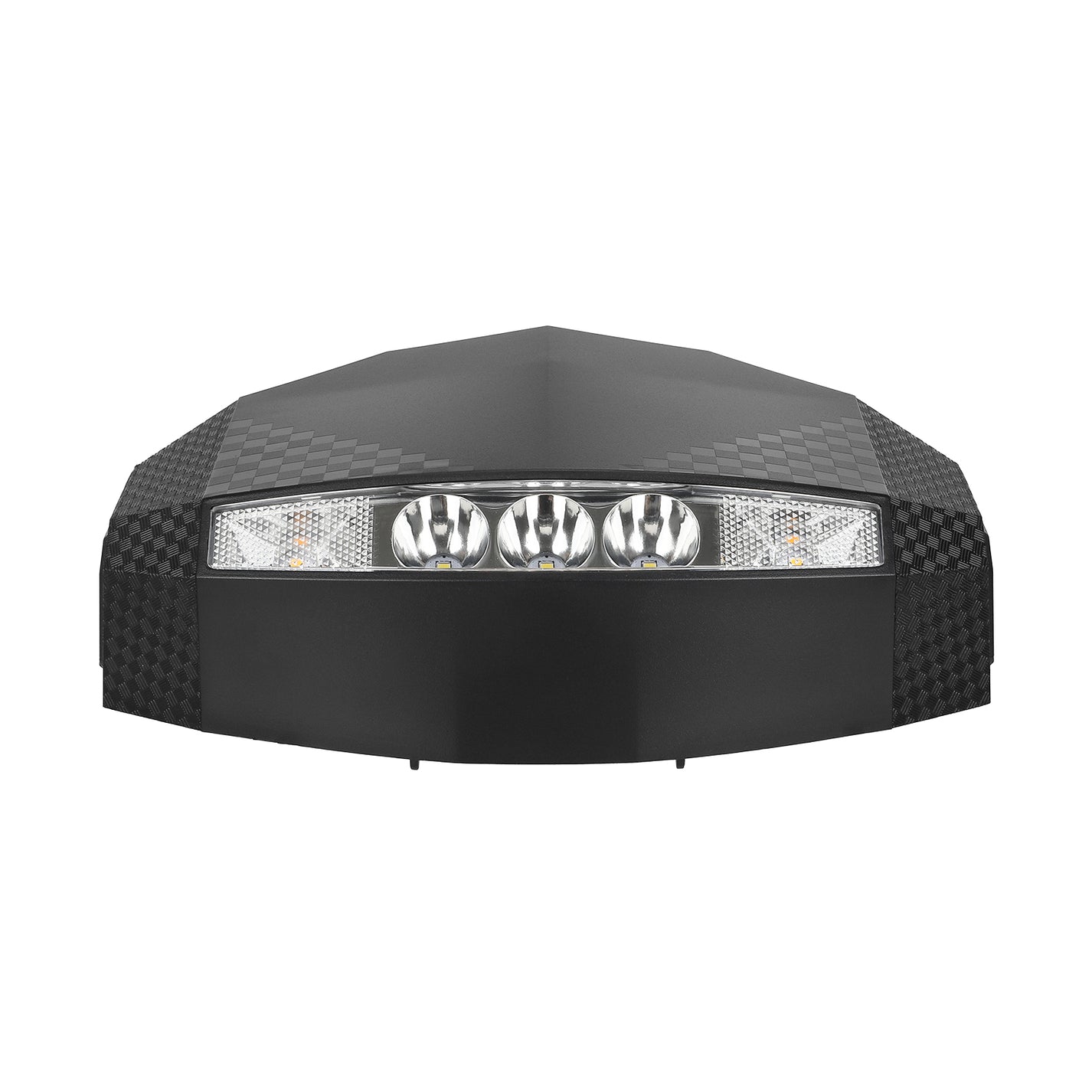

The replacement unit combines a wide LCD display and front light in a black housing with a carbon look. The entire assembly measures approximately 187 × 105 × 80 mm.

Features and fitment

• Model: KuKirin G4.
• Black display and front light assembly.
• Decorative carbon pattern; width approximately 187 mm.

Approximate dimensions

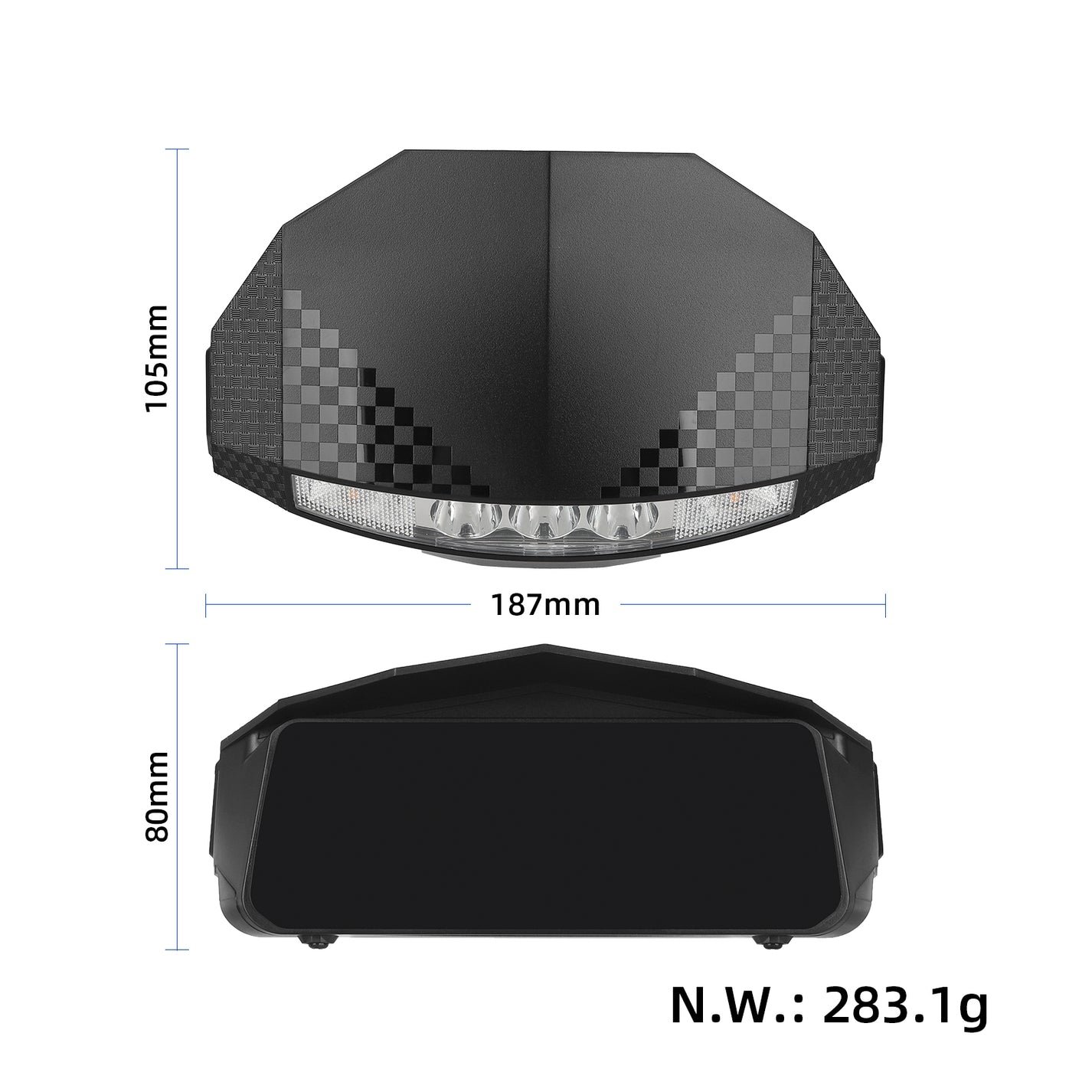

• Display with light: 187 × 105 × 80 mm.

Compare version B with the label and connector of the old display. The unit must be compatible with the controller to display data correctly and manage the intended functions.

Electronic assembly replacement

• Before servicing, switch off the vehicle and disconnect the battery according to the prescribed procedure. Record the position of each connector before removing the old unit.
• Attach the new assembly to the designated places, protect the connections, and maintain cable routing without pinching. Align the settings with the actual vehicle version.
• Before loading, check the display, drive response, and brake detection. In case of non-matching connectors or communication errors, have a technician verify compatibility.
