Original LED Headlight KuKirin M4 Max

Front light with four lighting elements

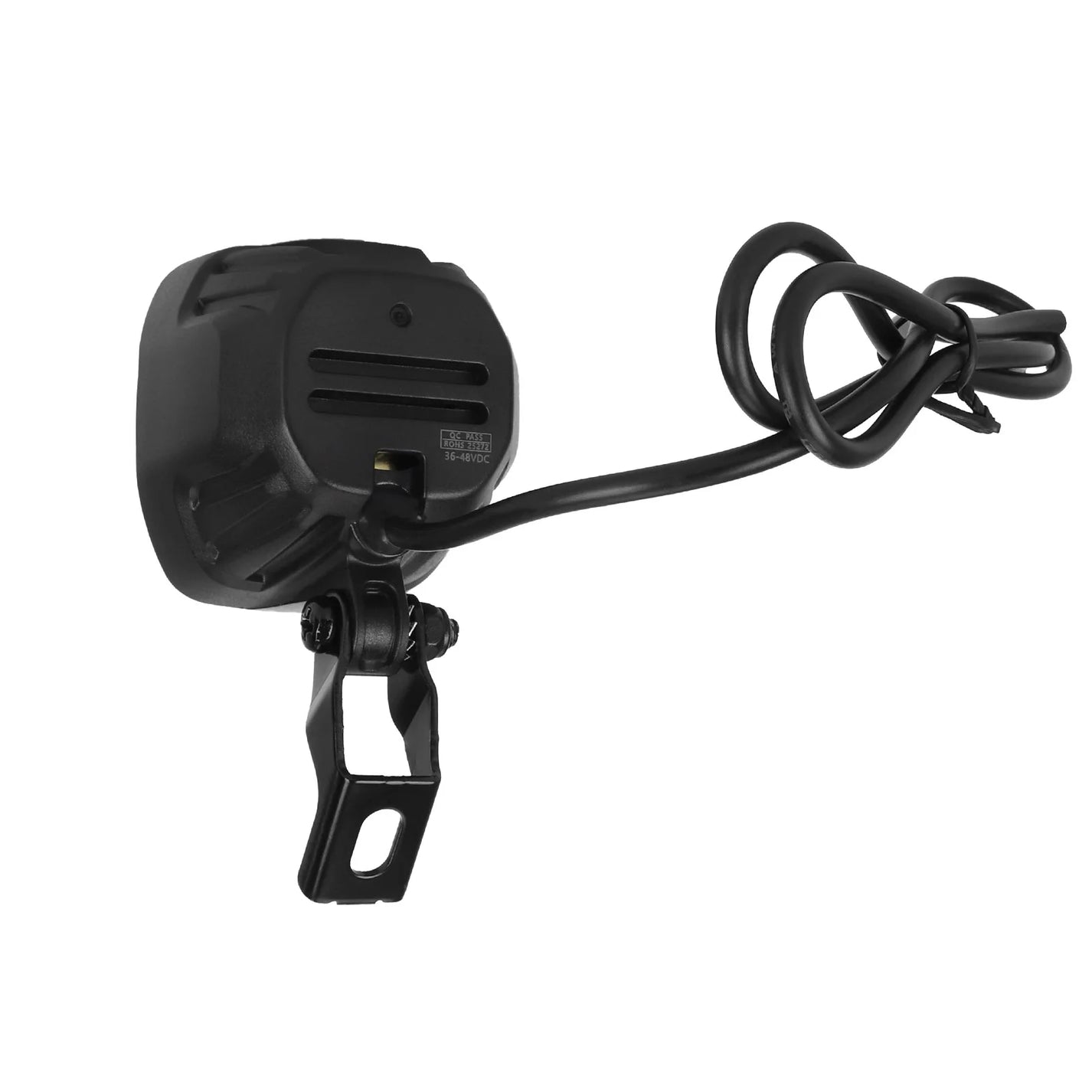

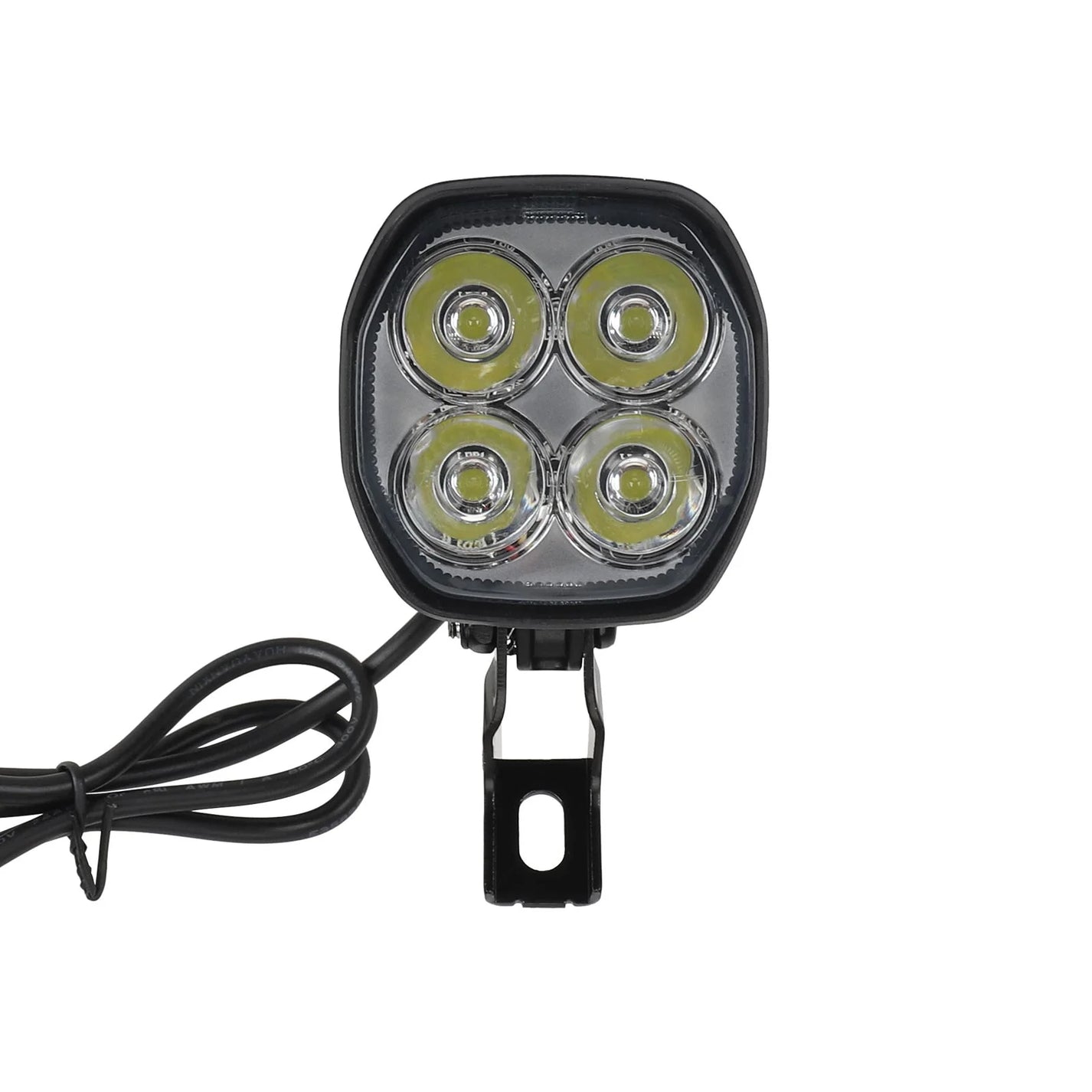

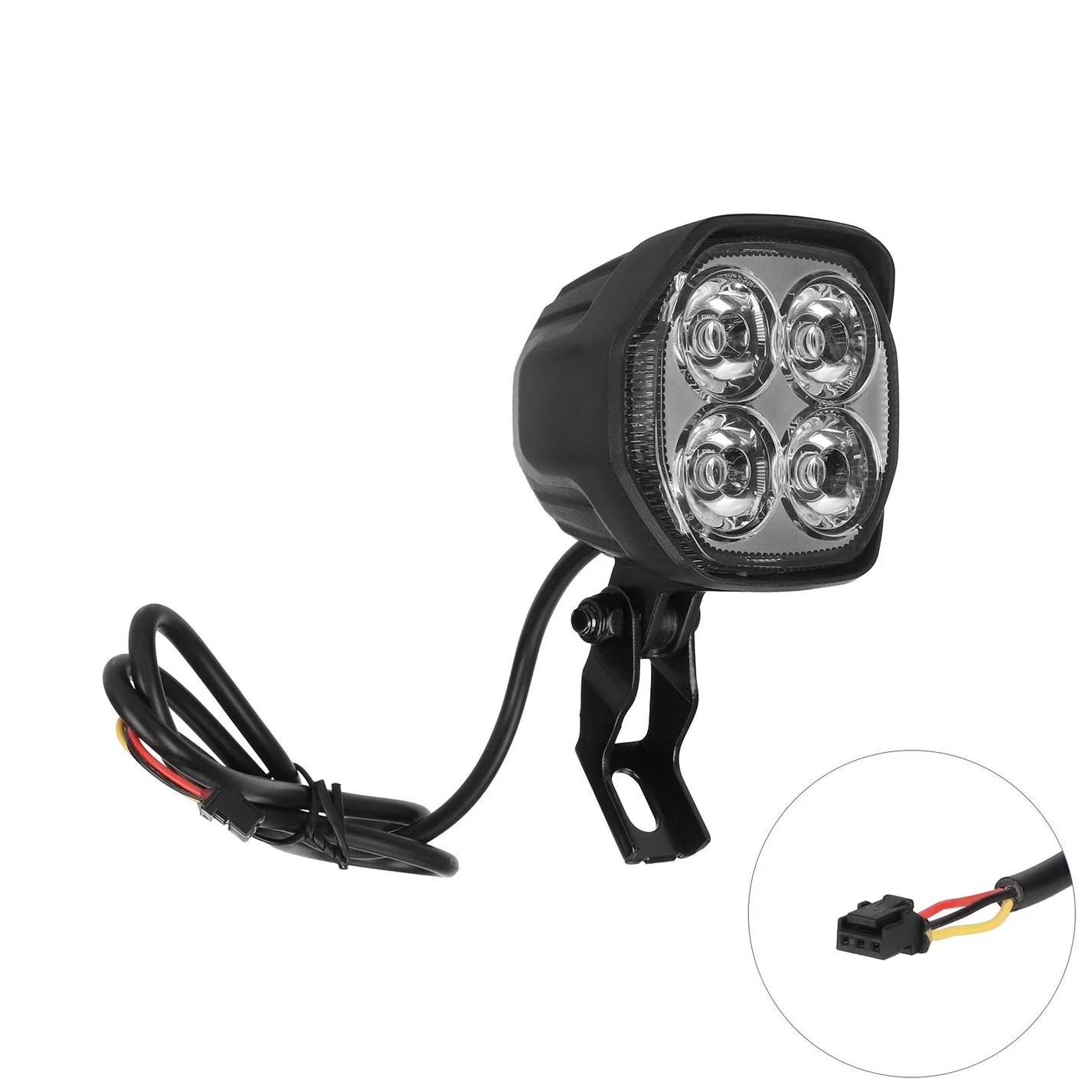

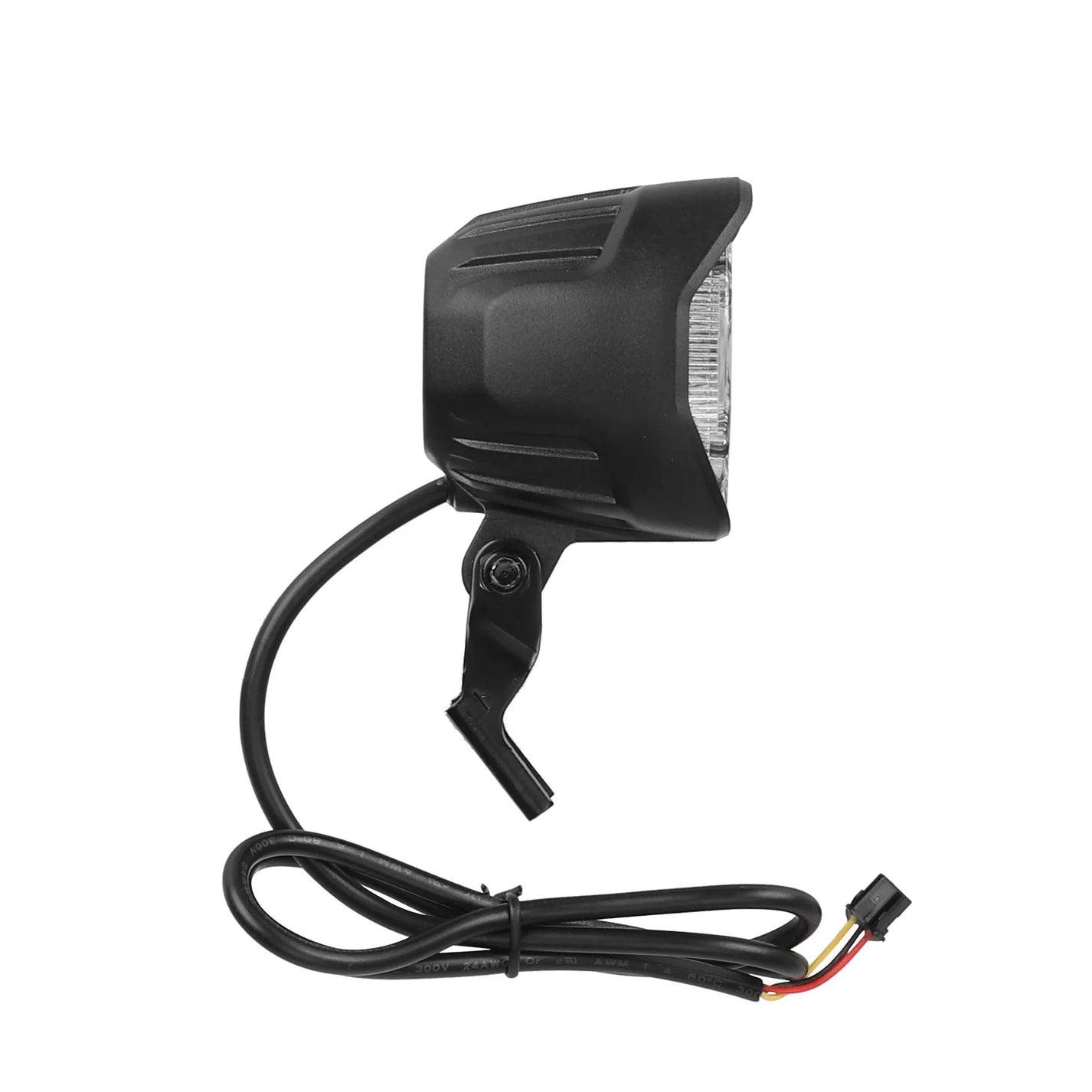

The black front light features four round lighting elements, a metal bracket, and an approximately 61 cm long cable. At the end is a black 3-pin connector.

Features and fitment

• Model: KuKirin M4 Max.

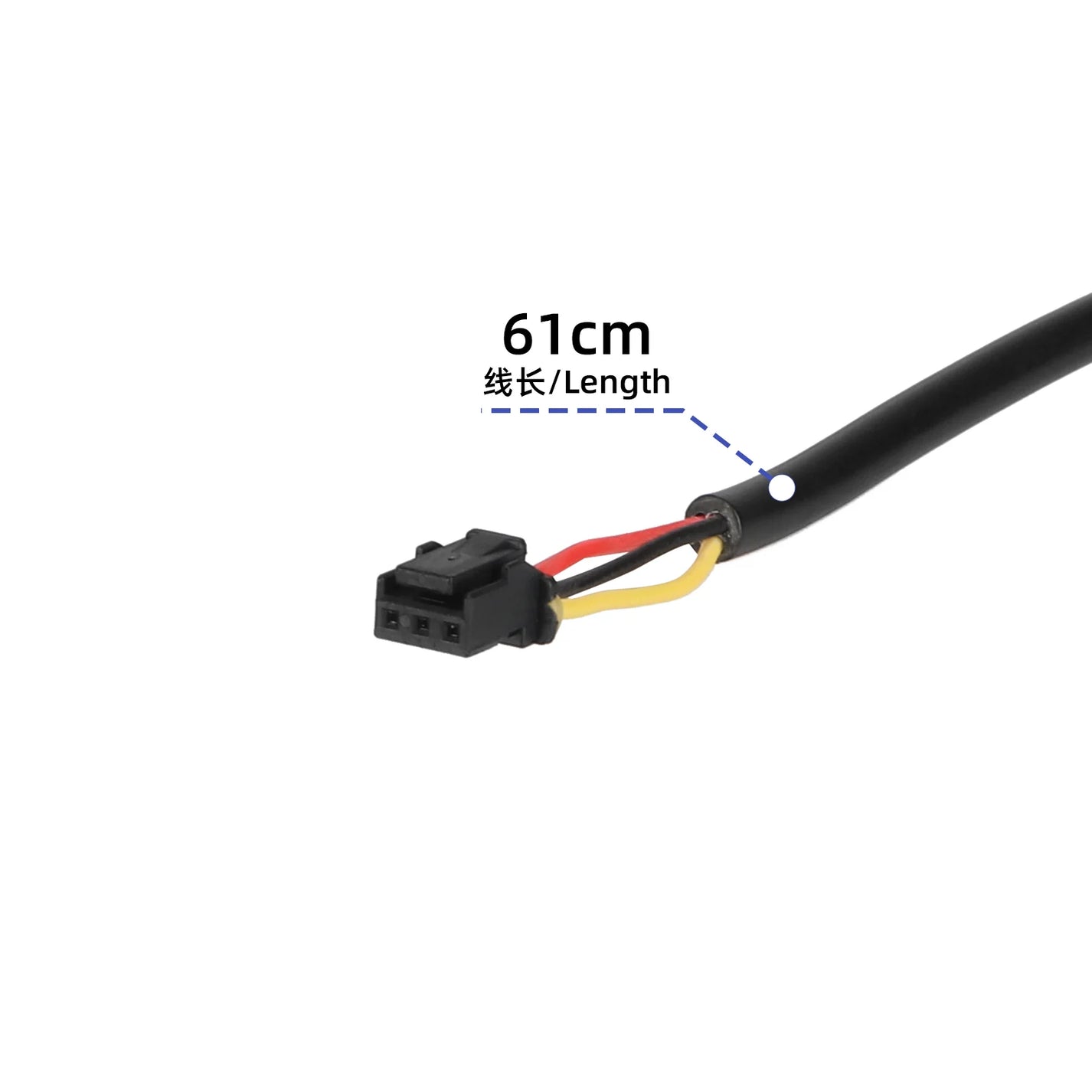

• Front LED headlight with four optical elements, metal bracket, and 3-pin connector; cable approximately 61 cm.

Approximate dimensions

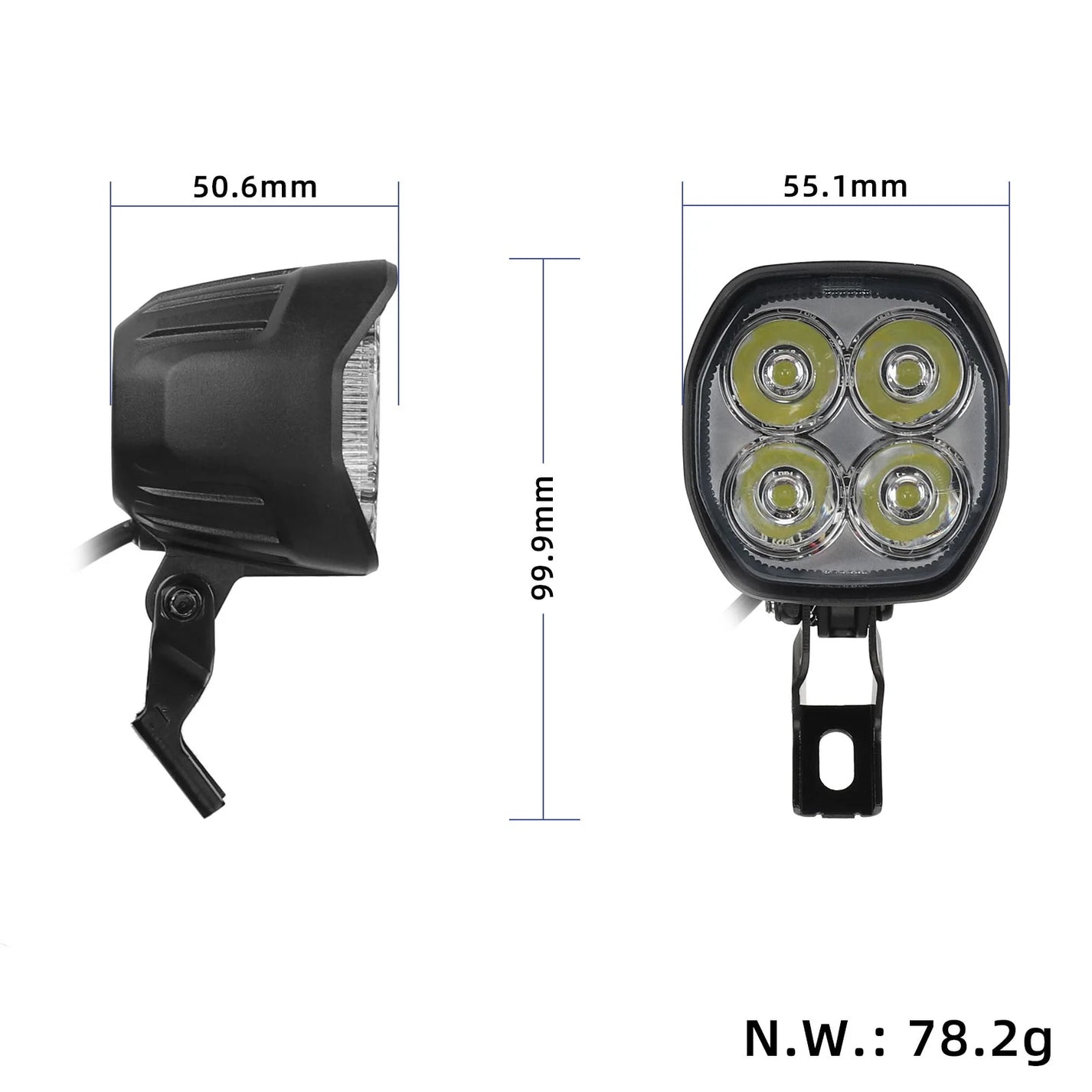

• Light with bracket: 99.9 × 55.1 × 50.6 mm.
• Cable: 61 cm.

The housing is approximately 55 mm wide, and the entire assembly with the bracket is approximately 100 mm high. Before replacing, check the voltage of the existing light, the connector, and the pin layout, then adjust the beam towards the road.

Installation and usage

Attach the headlight to the designated spot and check the cable routing. After connecting to the appropriate voltage, adjust the beam direction and check all functions. Replace a damaged bracket, as a loose light will not hold its direction.
