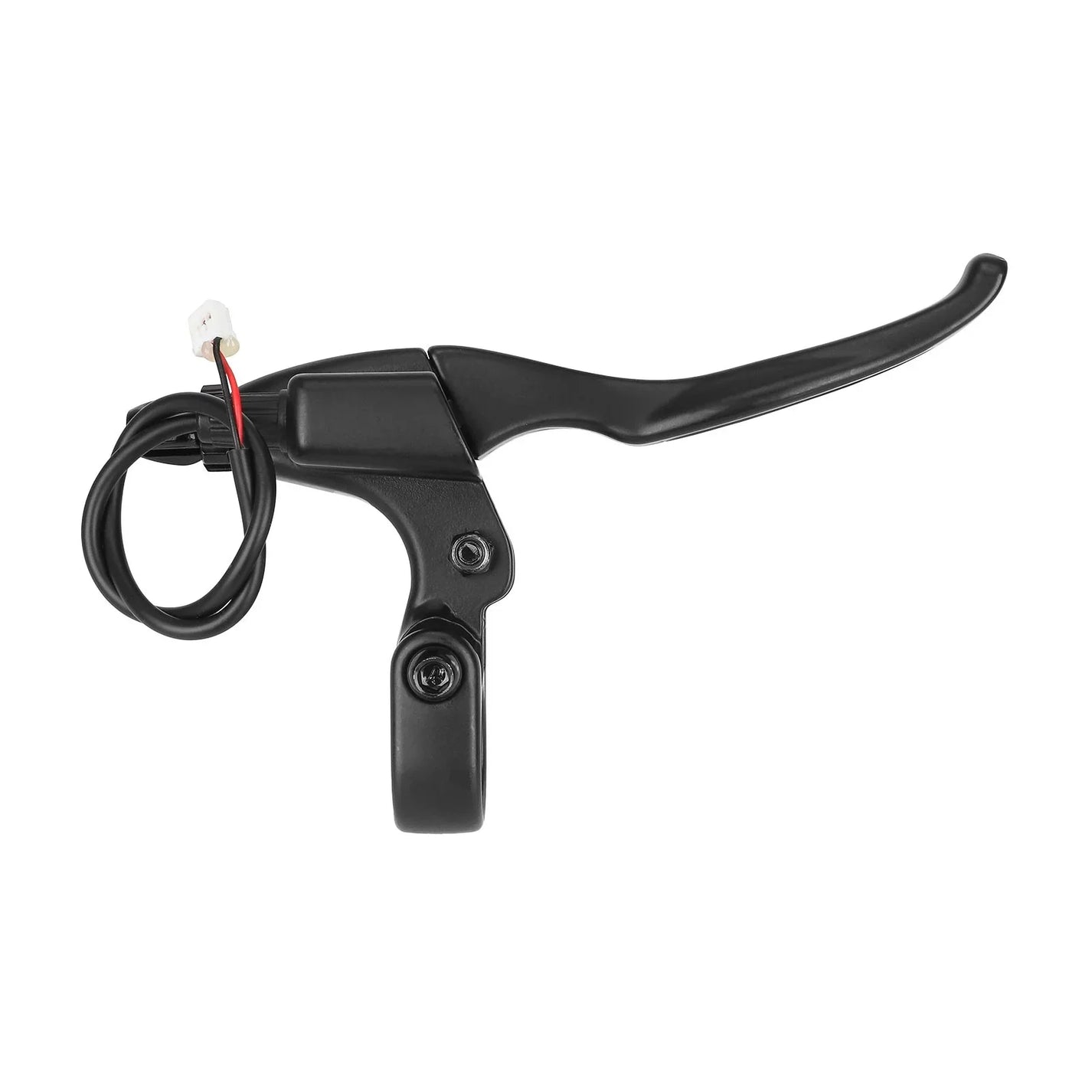

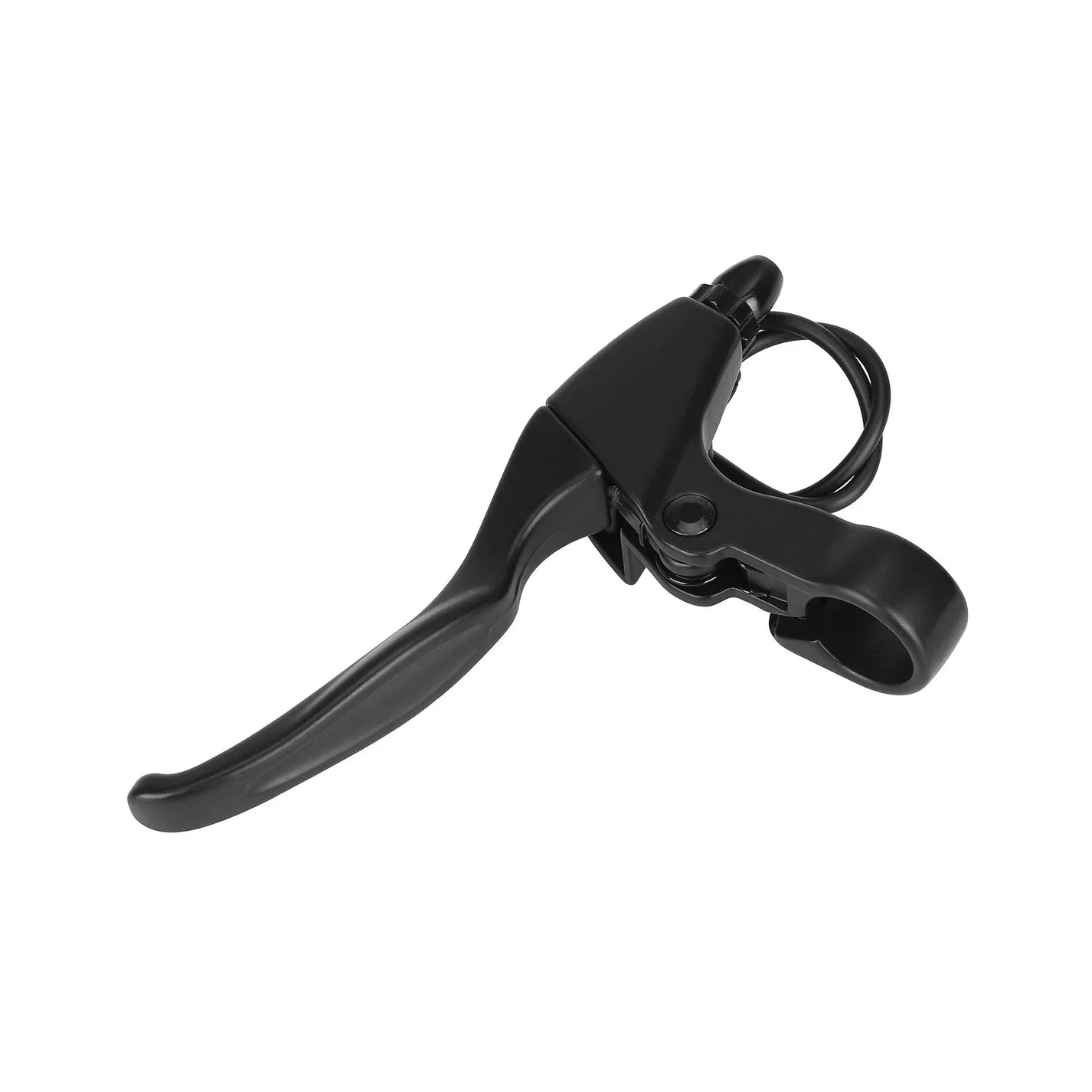

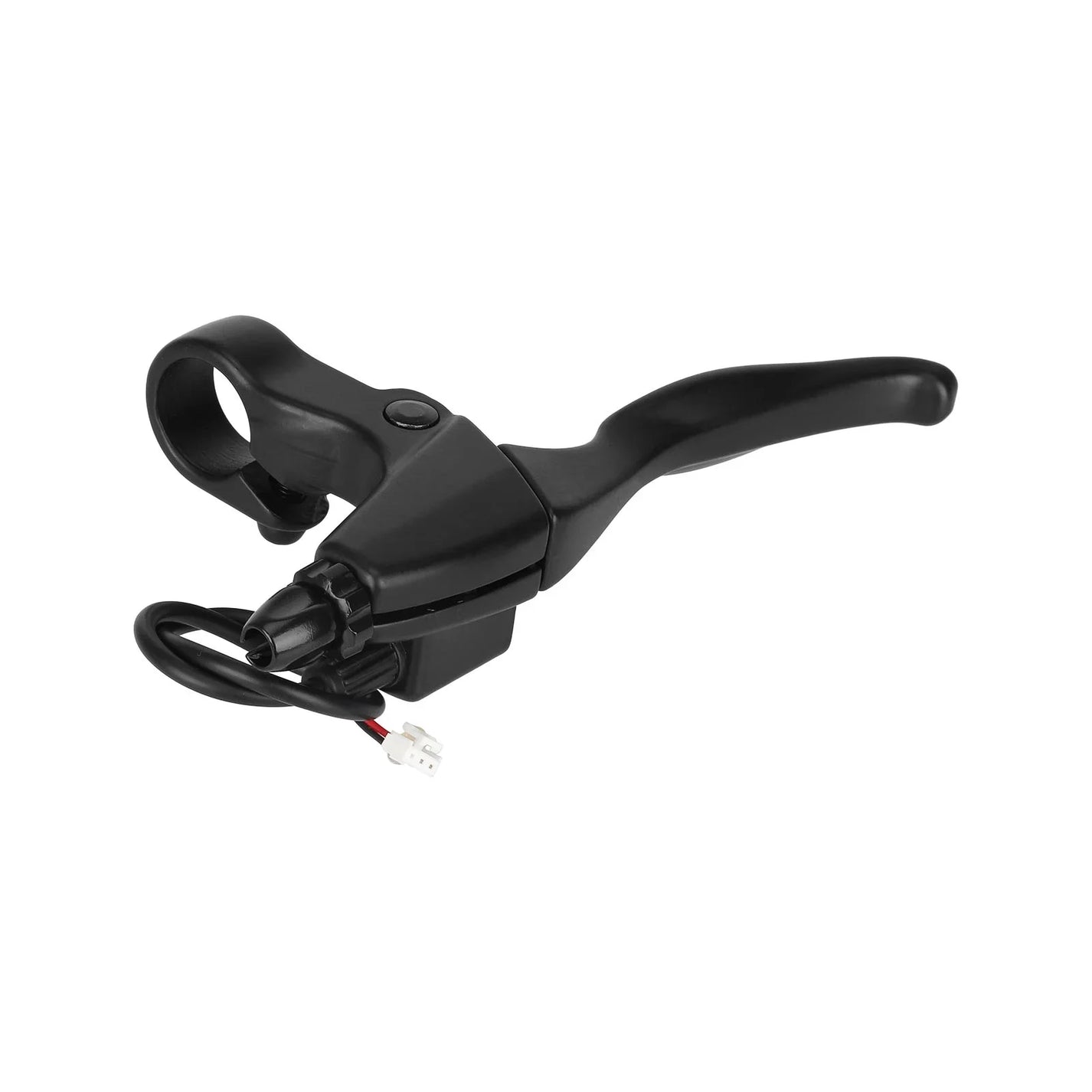

Original left brake lever for KuKirin G3

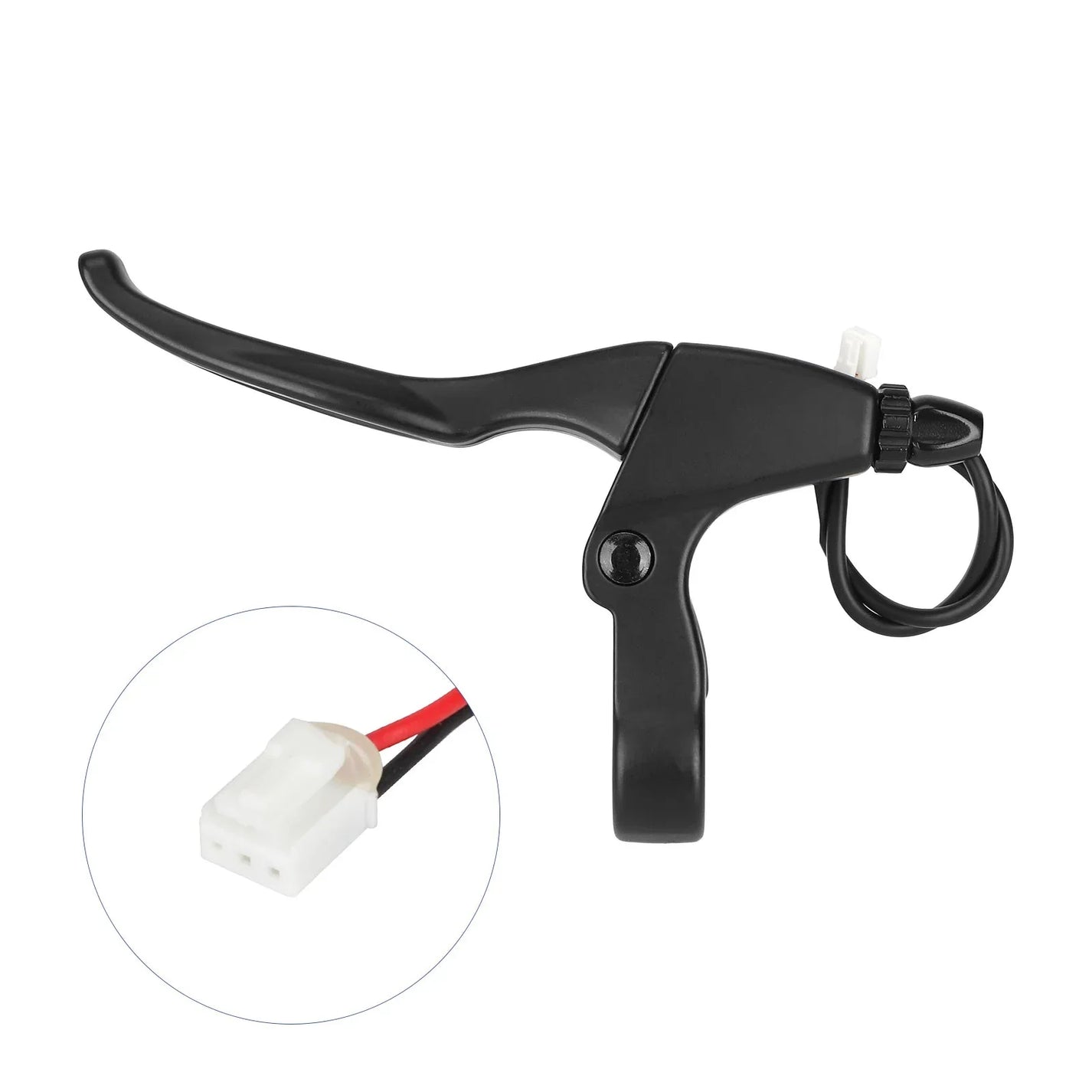

Left brake lever with electric cutoff connector

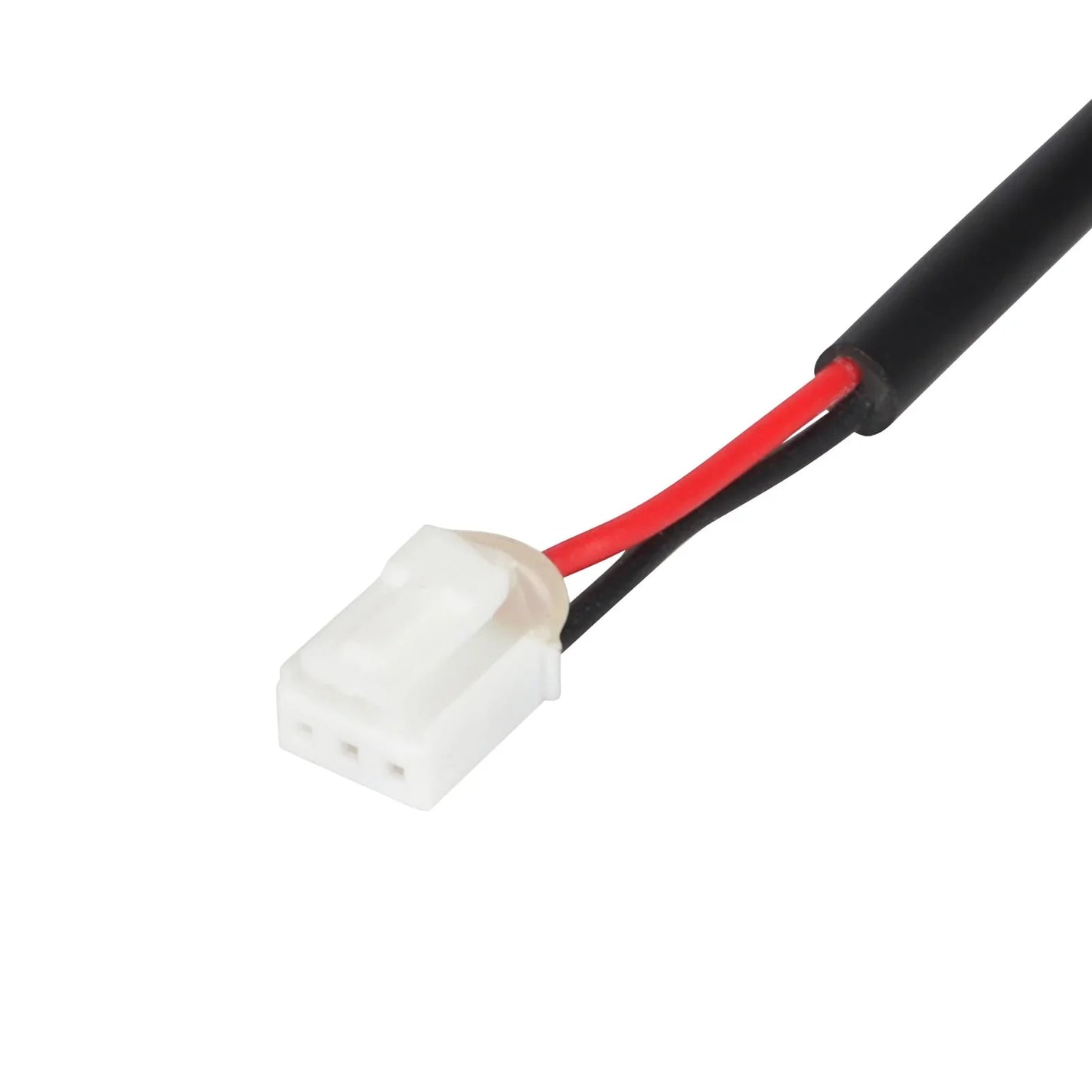

The black left lever operates with a mechanical brake cable. An additional cable approximately 25 cm long with a white two-pin connector connects the brake switch to the scooter's electronics.

Features and fitment

• Model: KuKirin G3.
• Left black lever for mechanical brake.
• Electric cable with white connector; approximately 25 cm.
• Brake cable seat and handlebar clamp.

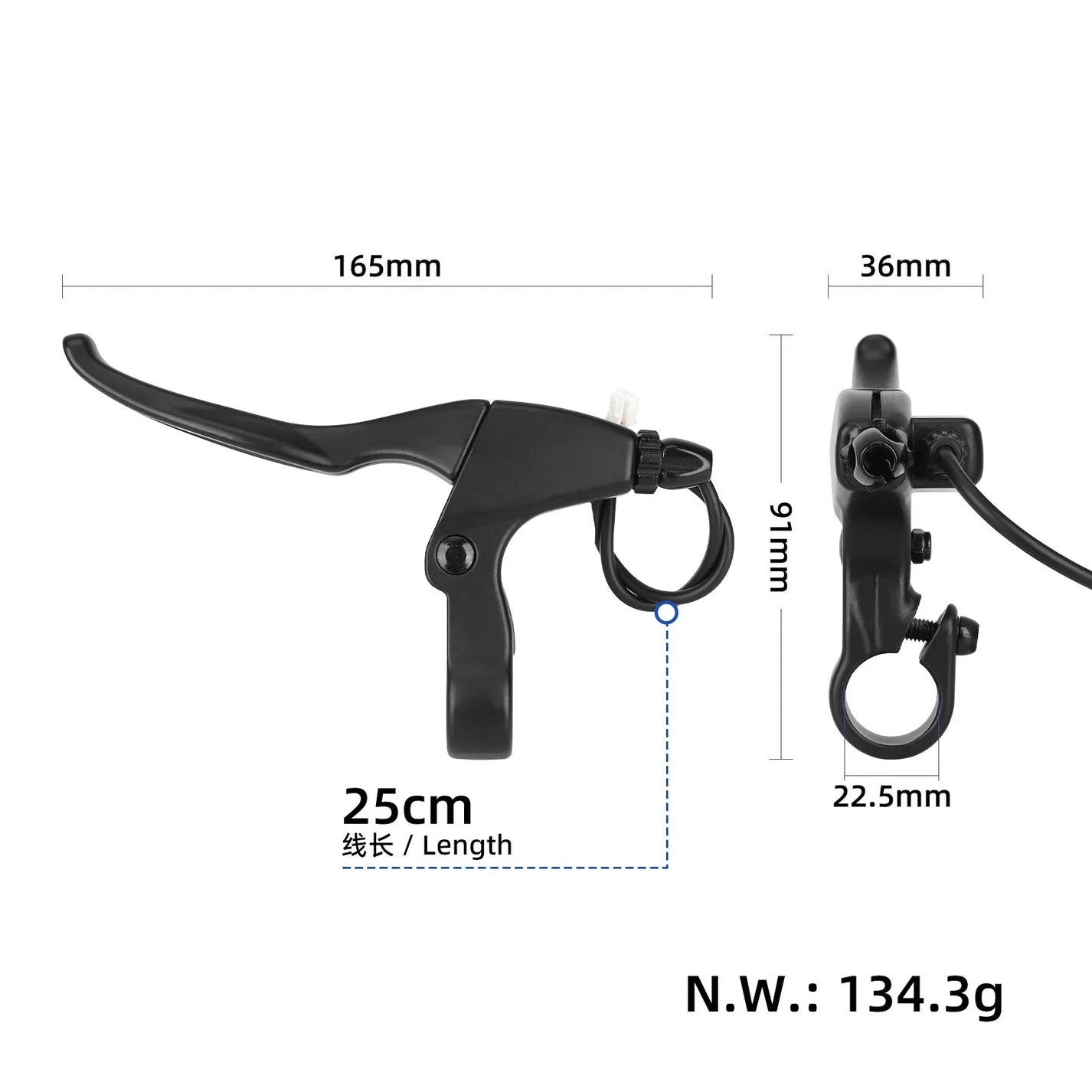

Approximate dimensions

• Lever: 165 × 91 × 36 mm.
• Clamp diameter: 22.5 mm.
• Cable length: 25 cm.

The lever measures approximately 165 mm, and the mounting diameter is 22.5 mm. During installation, connect the mechanical cable and the electric brake switch; then check the braking and the detection of the lever being pressed.

Correct lever position

• Replace a damaged or bent lever and check the cable and housing as well. Before disconnecting the electric connector, switch off the power.
• Install the lever in an accessible position, attach the cable, and adjust the pull. Route the electric cable so that it does not strain when the handlebar is turned.
• Check mechanical braking and electric brake detection separately. The lever must return freely, and the wheel must not remain braked when the brake is not pressed.
