Original right brake lever for KuKirin G2 Max

Right mechanical brake lever with electrical signal

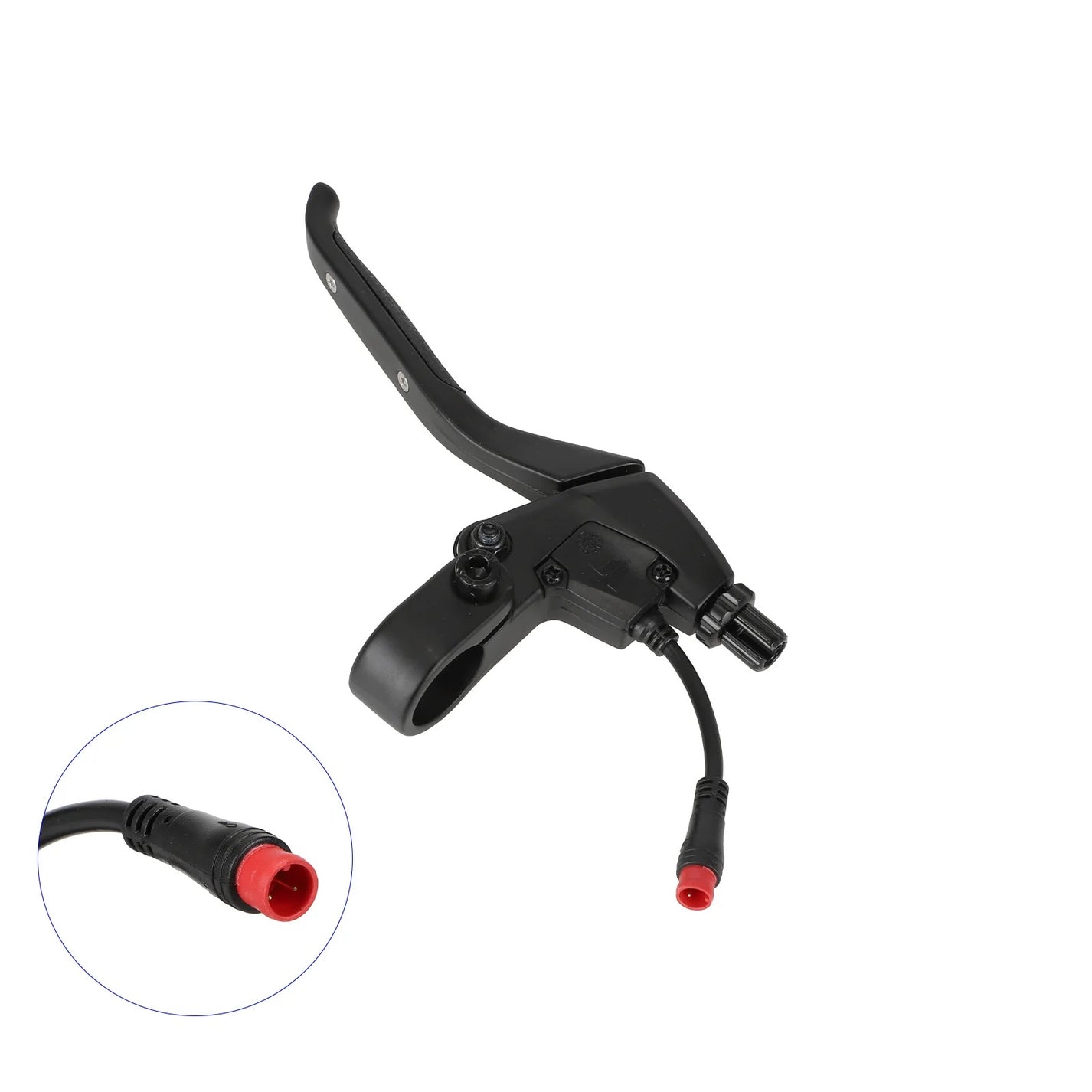

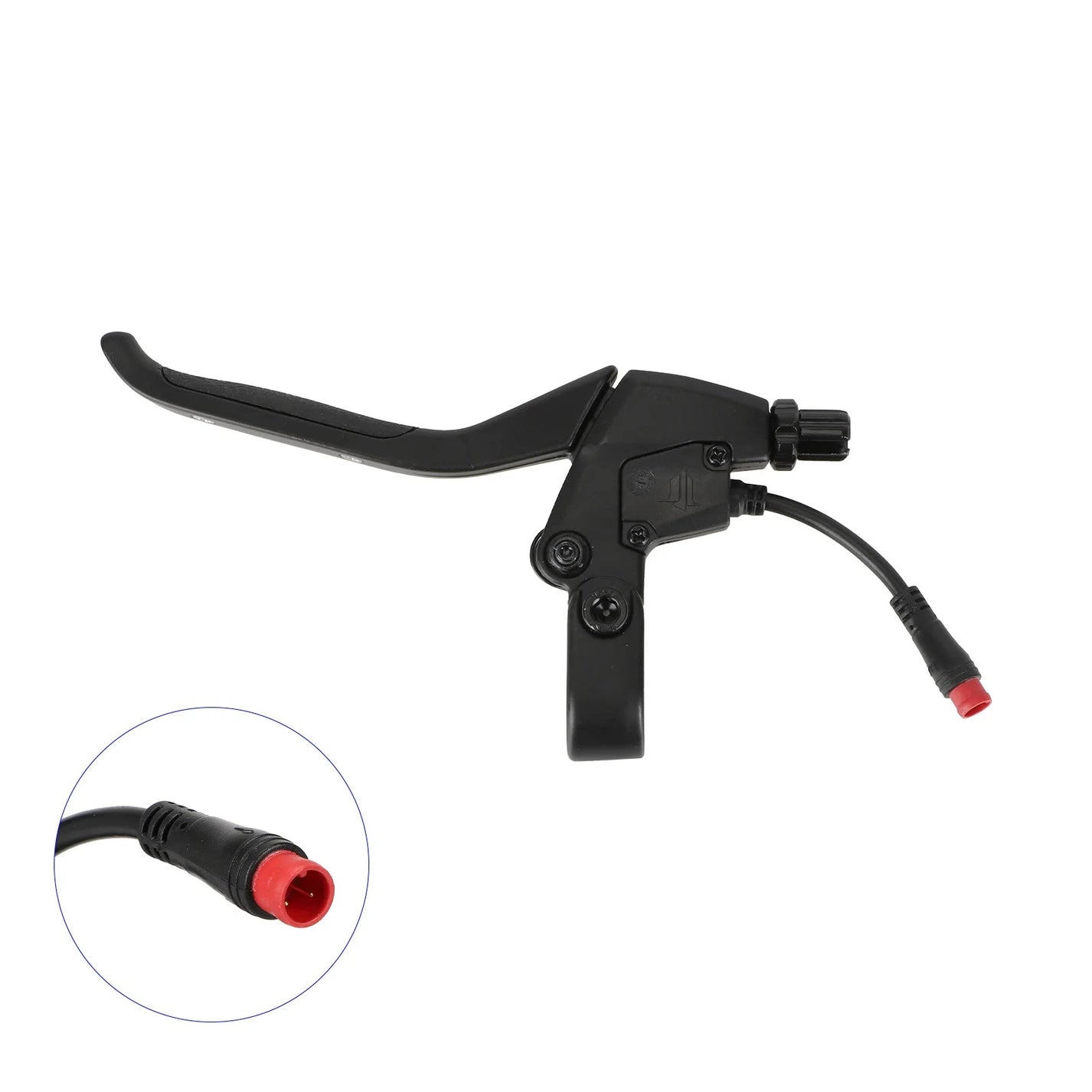

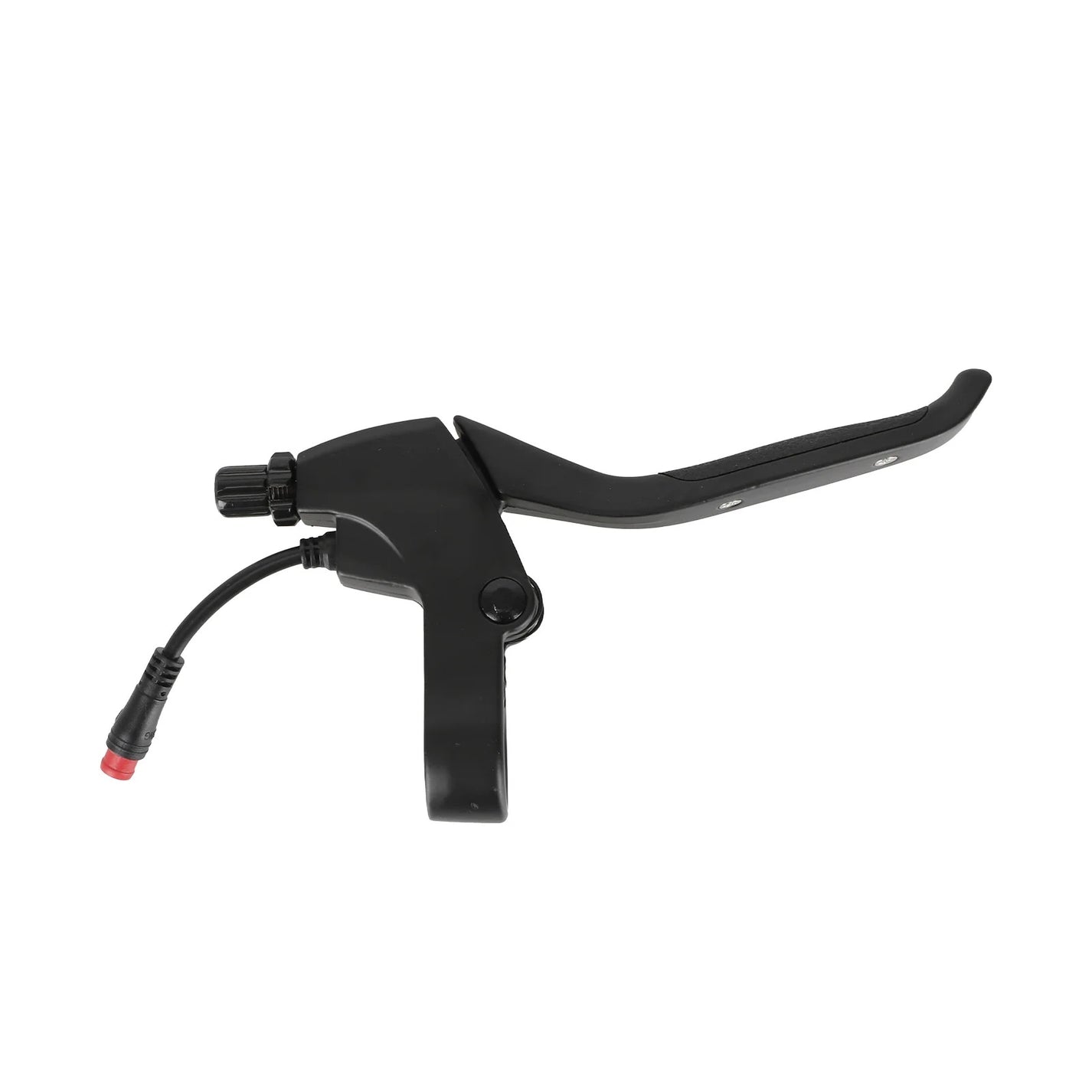

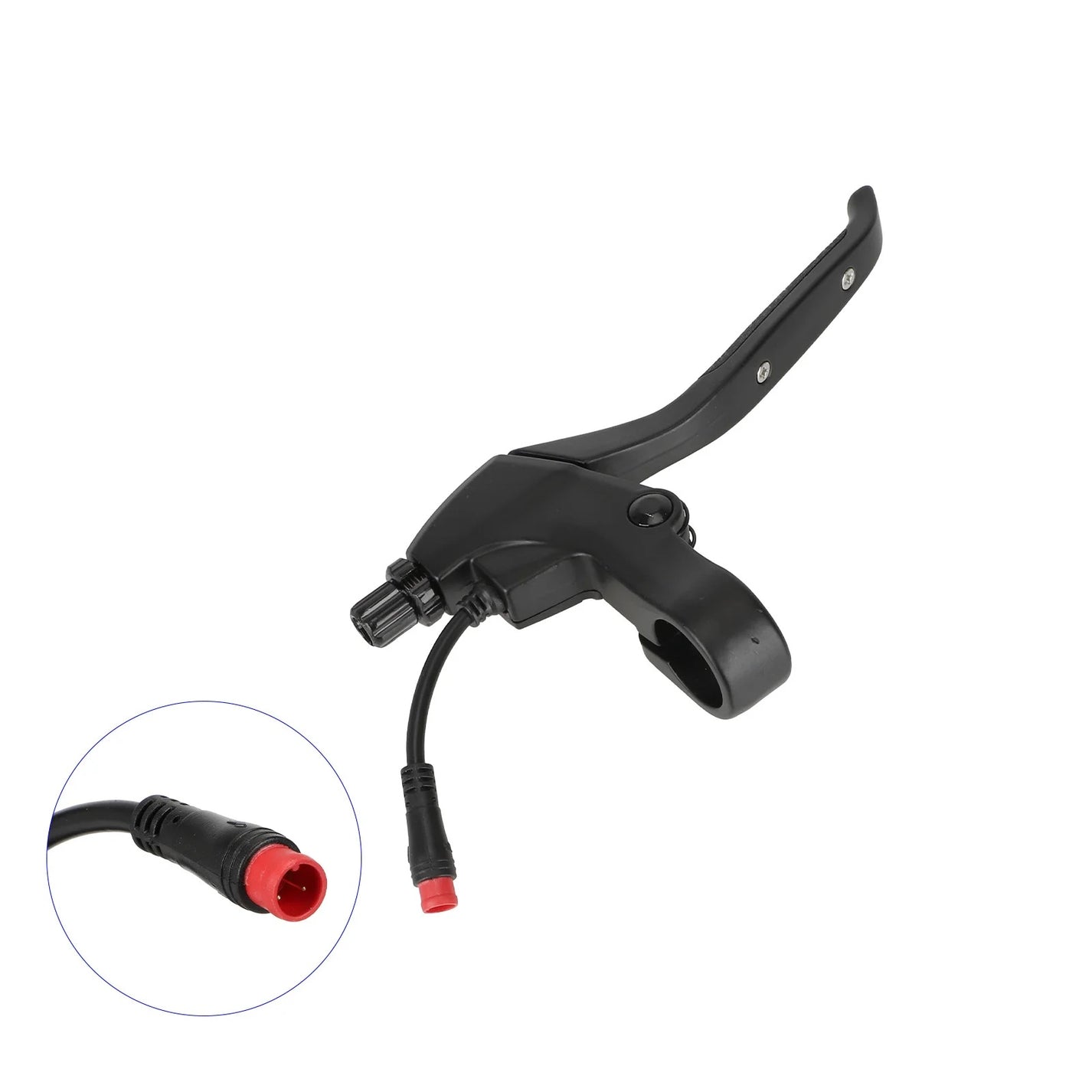

The right black lever pulls the brake cable and includes an additional electrical cable for the braking signal. The threaded barrel adjuster allows for proper mechanical cable tensioning.

Features and fitment

• Model: KuKirin G2 Max.

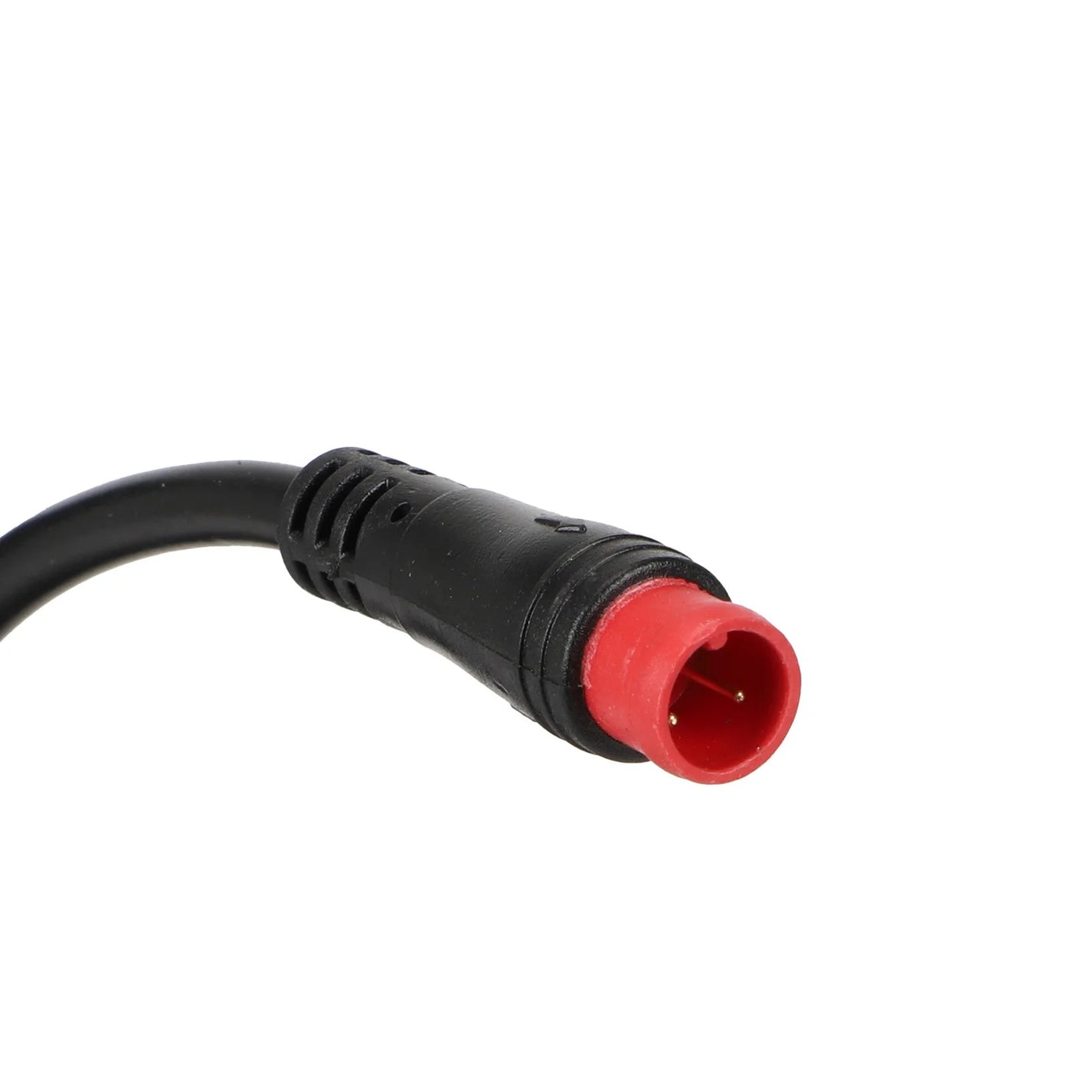

• Right black mechanical brake lever with a red electrical cut-off connector.

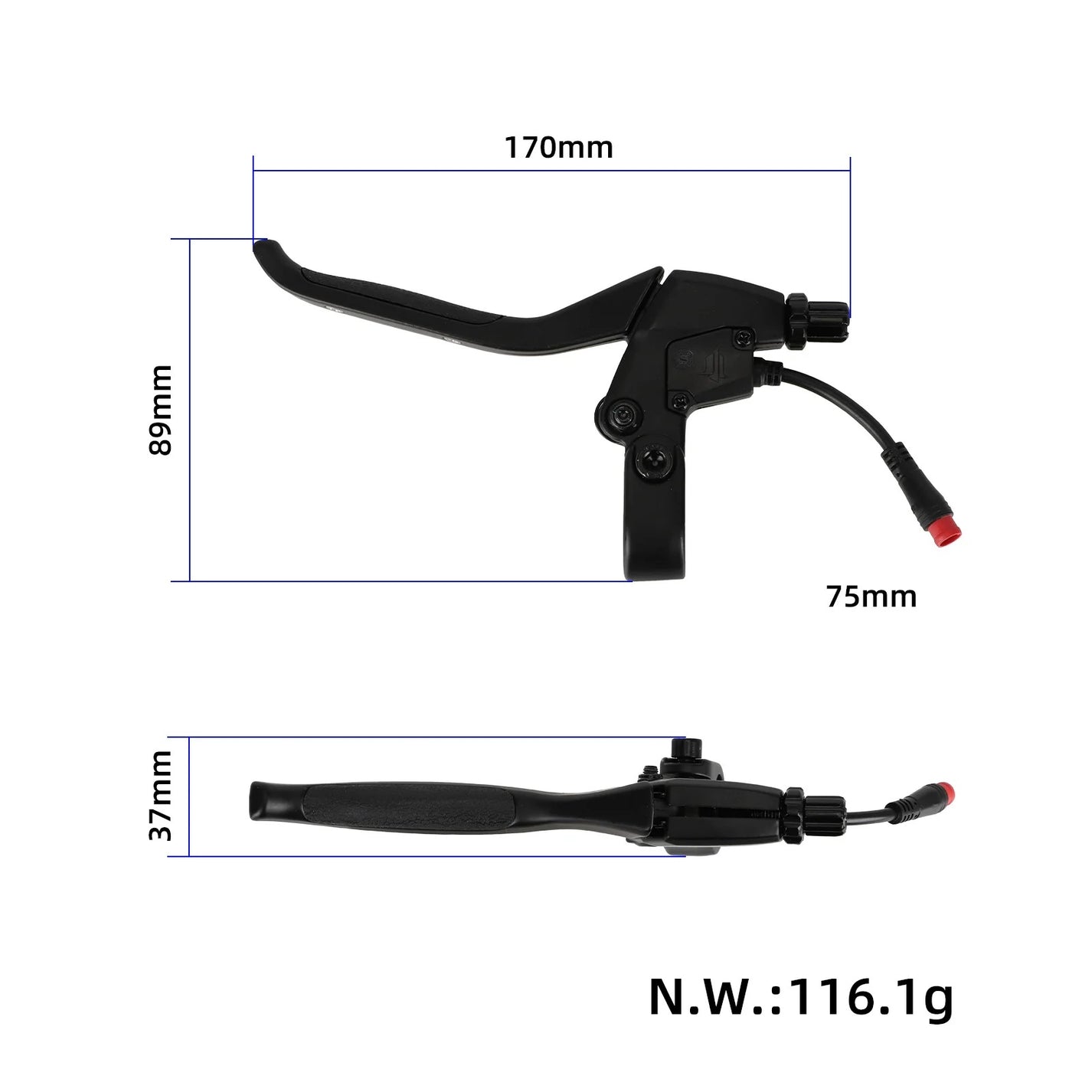

Approximate dimensions

• Lever: 170 × 89 × 37 mm.
• Signal cable: 75 mm.

The total length is approximately 170 mm, with a 75 mm signal cable featuring a red connector. Please check the right-side orientation, brake cable end type, and electrical wiring. The lever should return fully without binding after release.

Proper lever positioning

• Replace a damaged or bent lever and check the inner wire and housing. Power down before disconnecting the electrical connector.
• Install the lever in an accessible position, connect the brake cable, and adjust the travel. Route the electrical cable so it does not pull when the handlebars are turned.
• Independently verify both the mechanical braking action and the electrical brake sensor. The lever must return freely, and the wheel must not remain braked when the lever is released.
