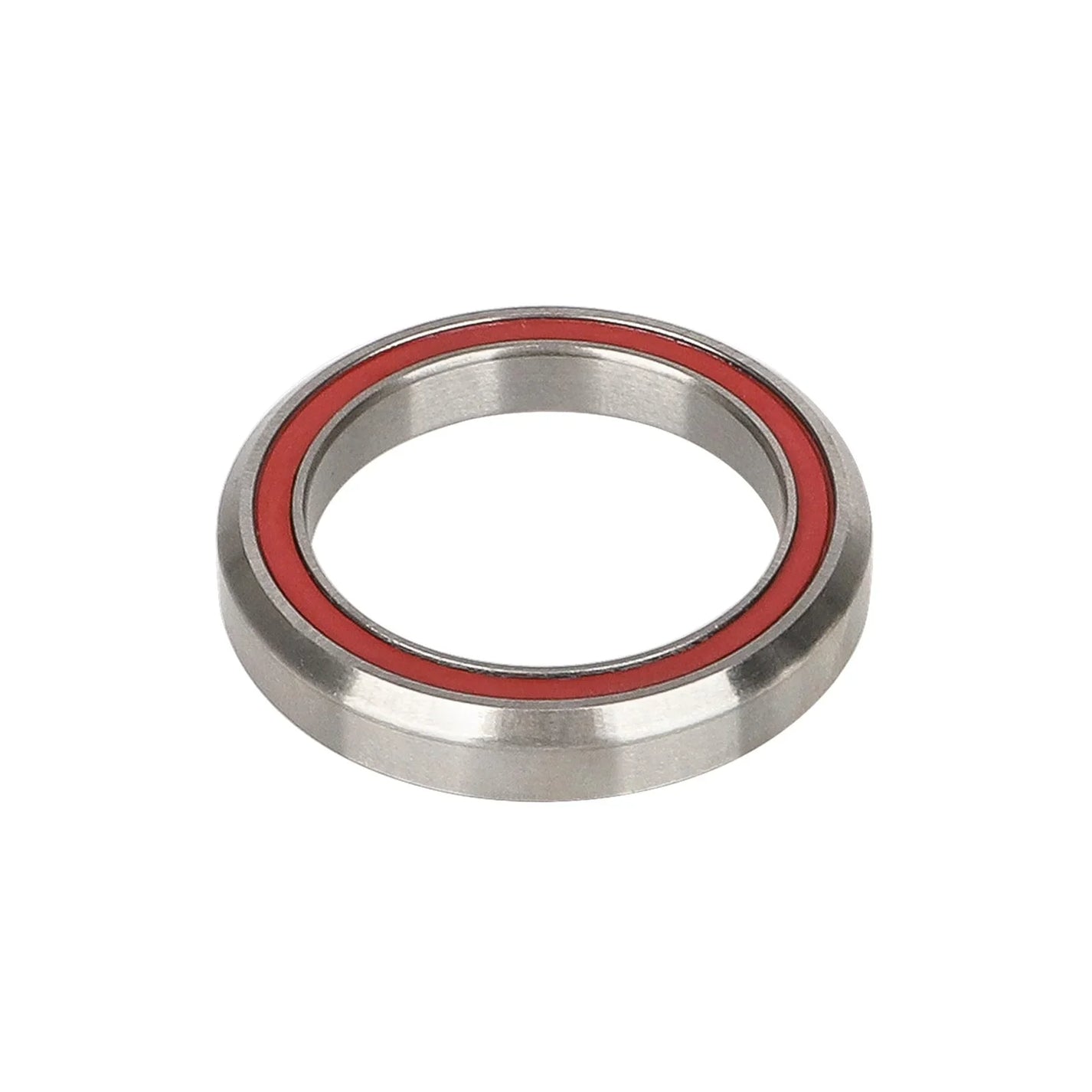

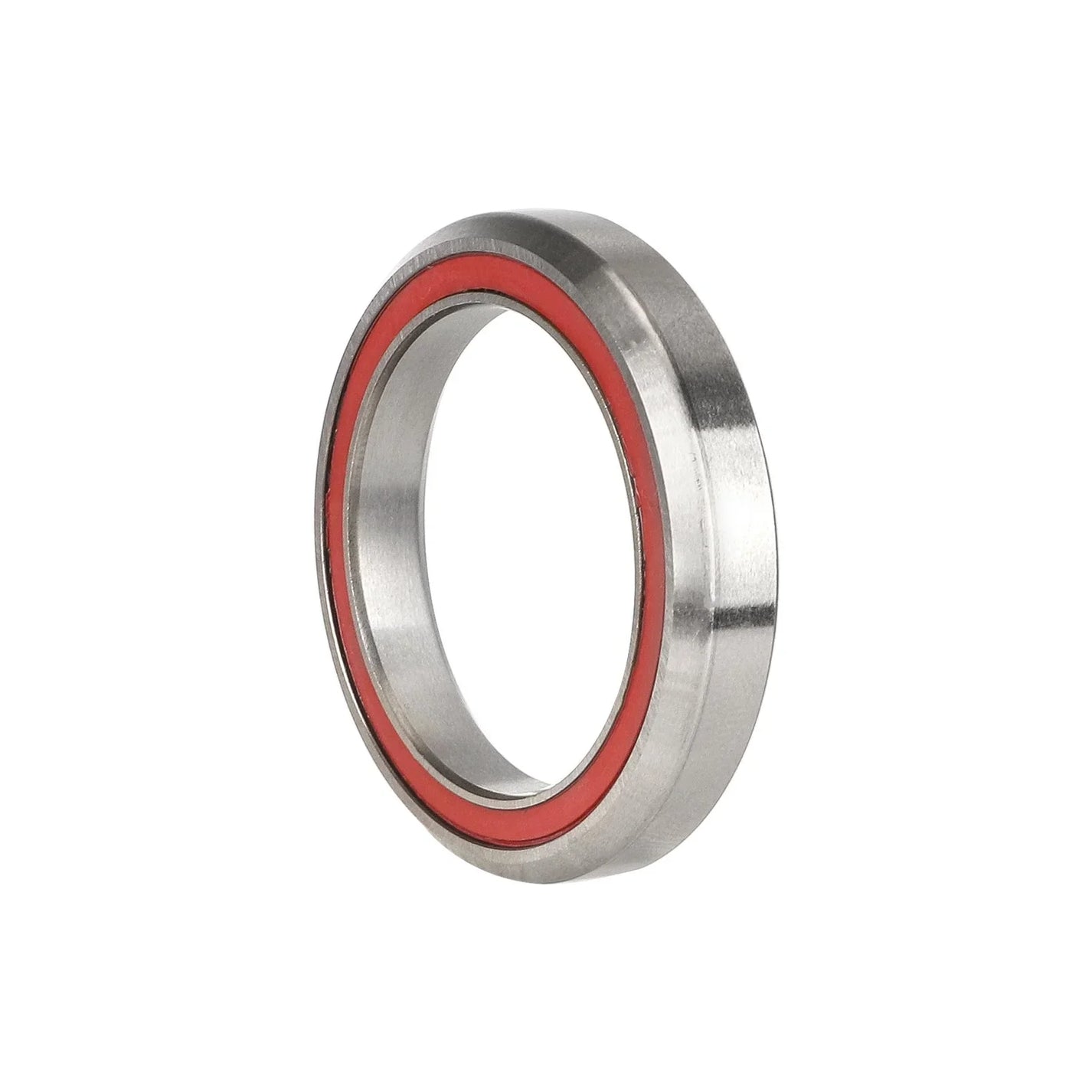

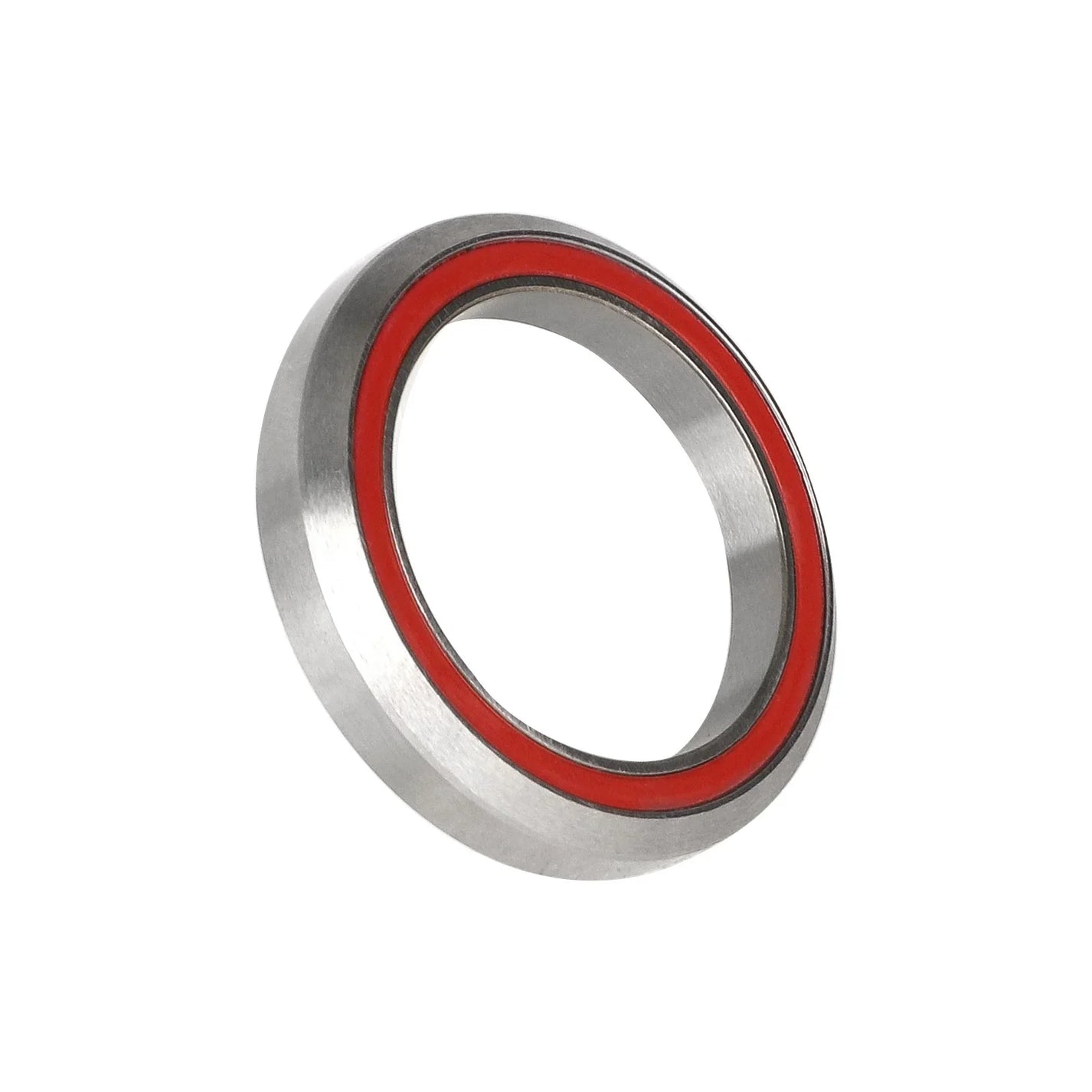

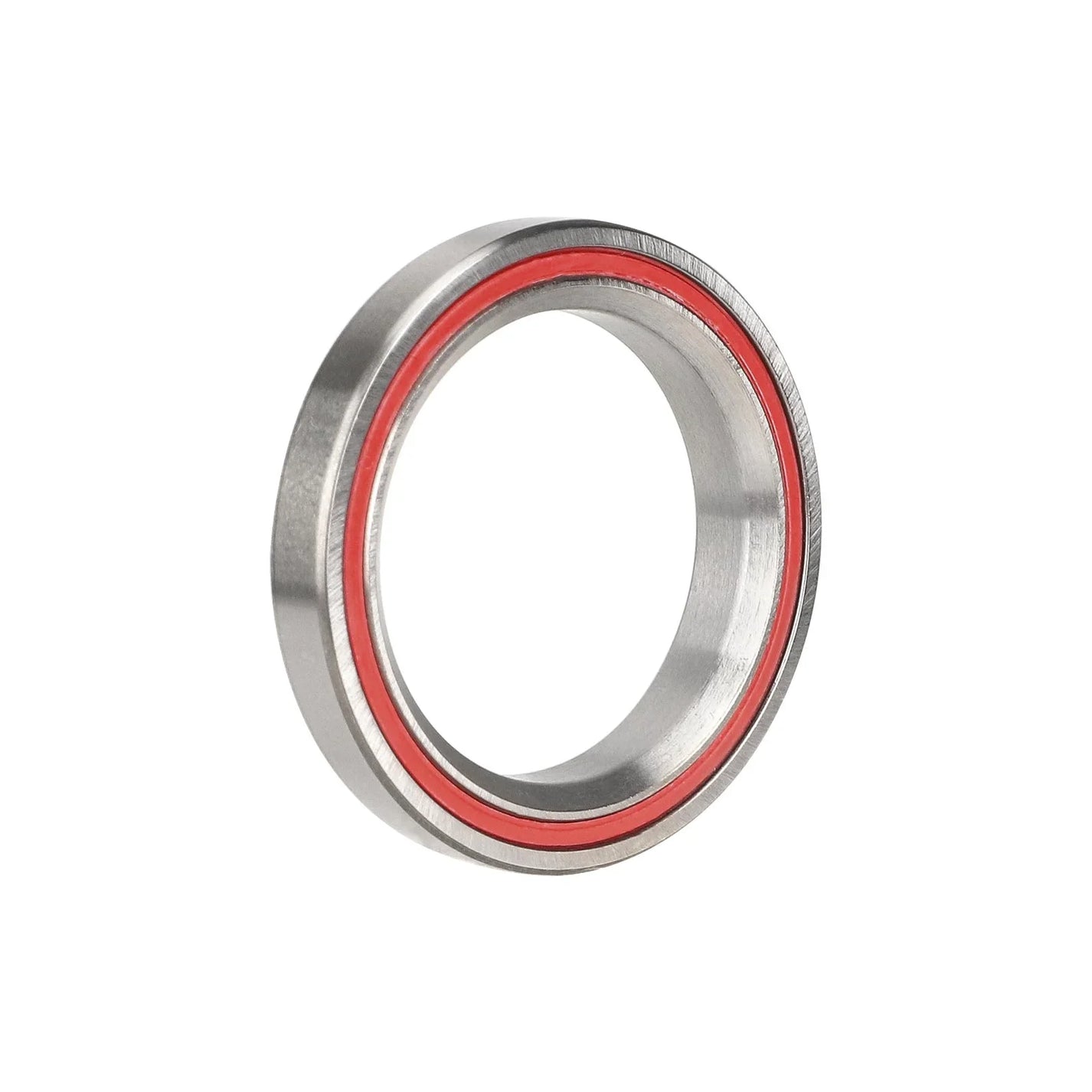

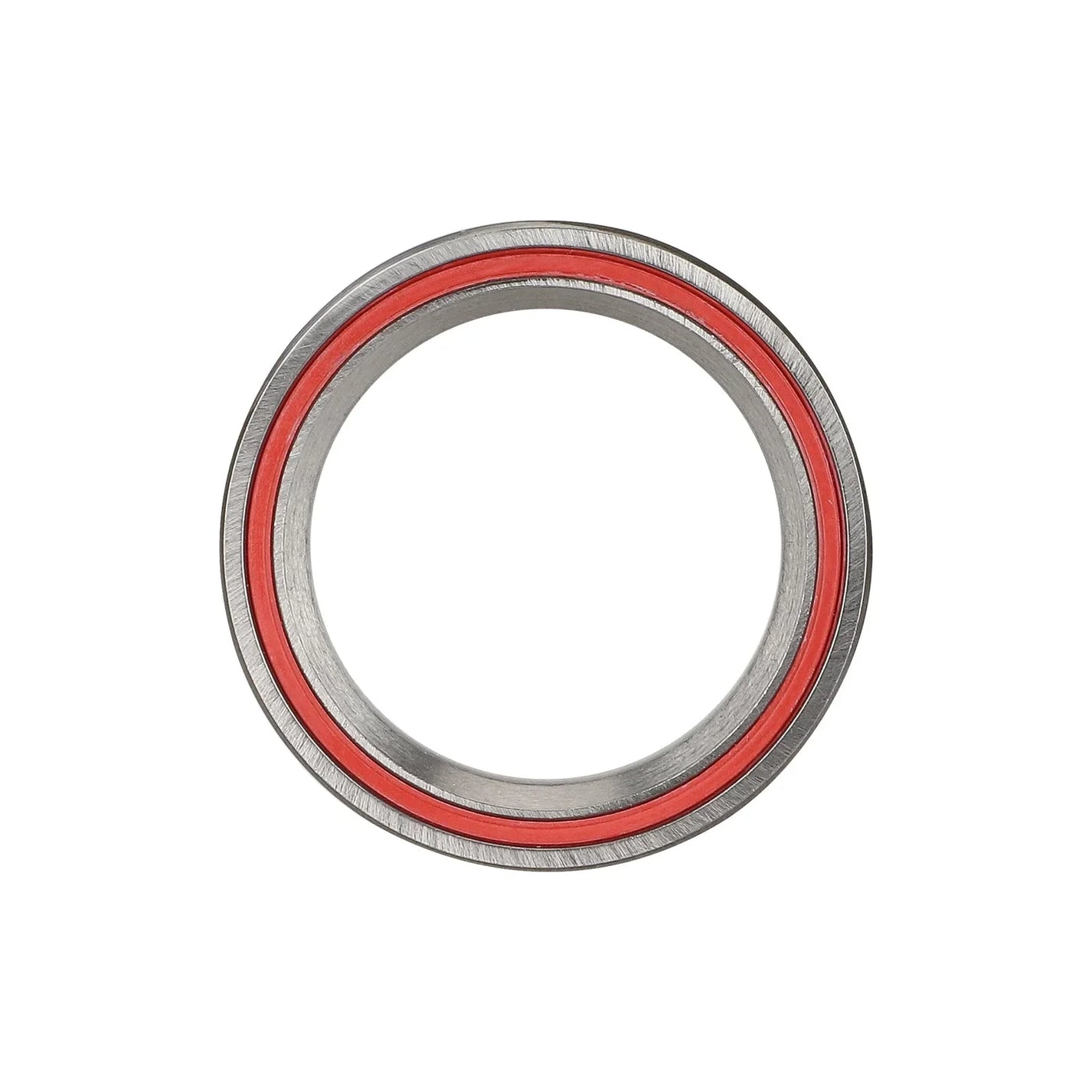

Headset bearing 30.15 × 41.8 × 7 mm for KuKirin G4

Sealed bearing for smooth handlebar turning

The steering bearing features metal rings and a red seal. The nominal size 30.15 × 41.8 × 7 mm defines the inner diameter, outer diameter, and height of the bearing.

Features and fitment

• Model: KuKirin G4.
• Bearing with red seal; inner diameter 30.15 mm, outer 41.8 mm, height 7 mm.

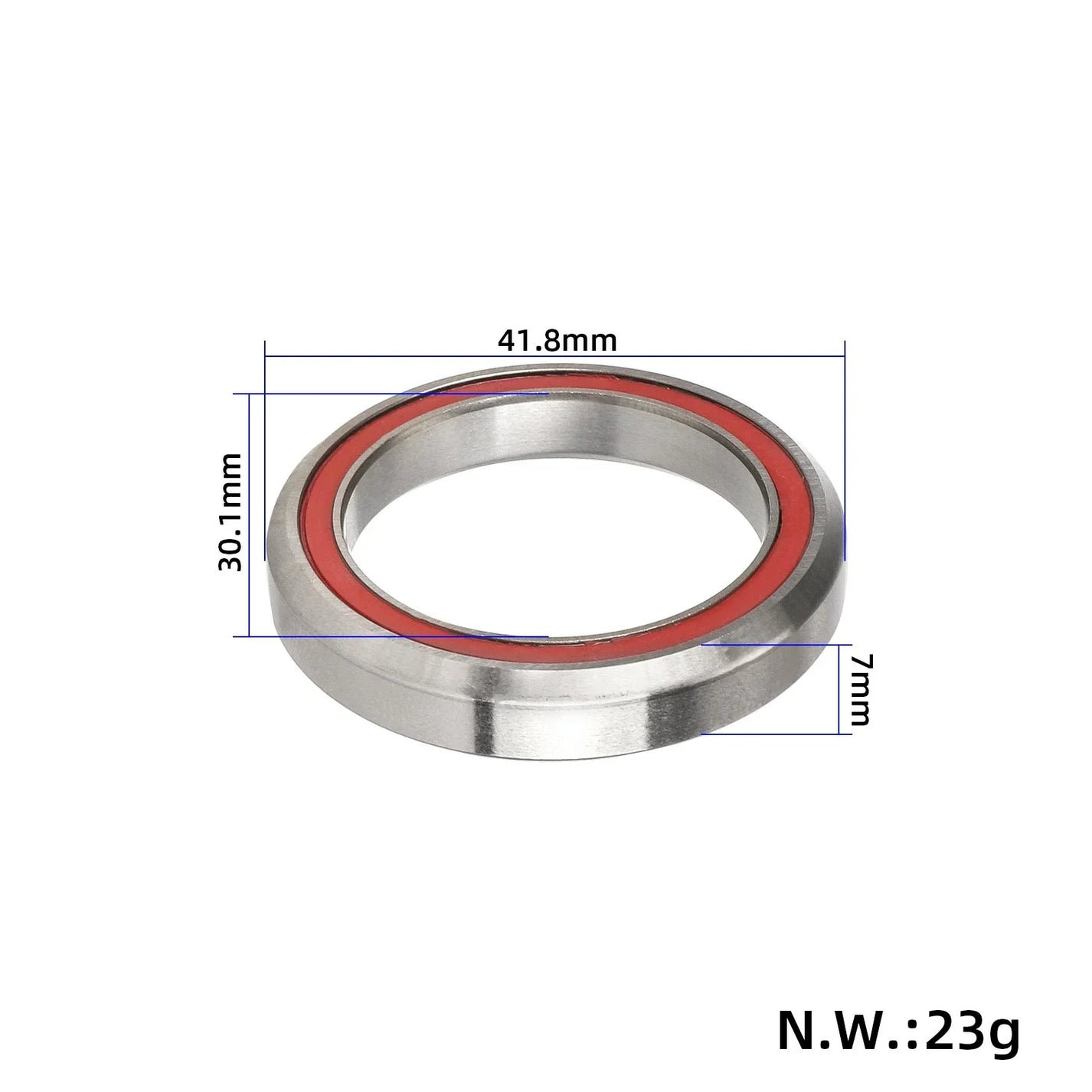

Approximate dimensions

• Inner diameter of bearing: approx. 30.1 mm, nominally 30.15 mm.
• Outer diameter: 41.8 mm.
• Thickness: 7 mm.

When choosing, check the shape of the contact surfaces, not just the diameters. Sticking handlebars or play are reasons to check the bearing, but incorrect steering assembly preload must be ruled out first.

Steering assembly refurbishment

• Check for play or sticking together with adjustments and contact surfaces. Replace a damaged bearing without striking the rolling elements.
• Clean the housing and assemble the parts in the correct order. Transfer force during insertion to the ring that fits the seat and follow prescribed lubrication.
• After adjustment, check for smooth steering rotation and absence of play. Over-tightening does not fix a worn bearing.
