Rear fender for electric scooter KuKirin G2 Master 2025

Molded rear mudguard for G2 Master performance series

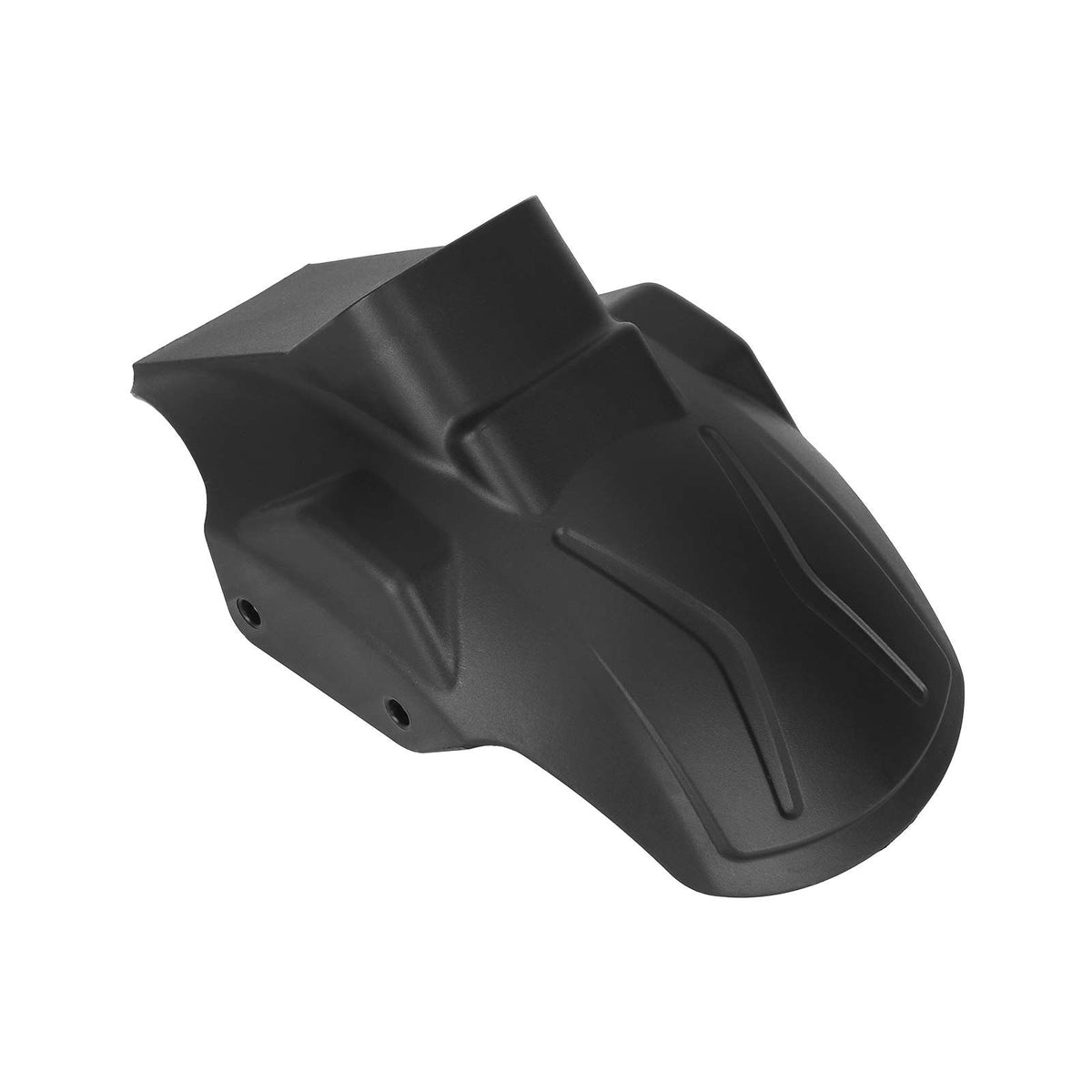

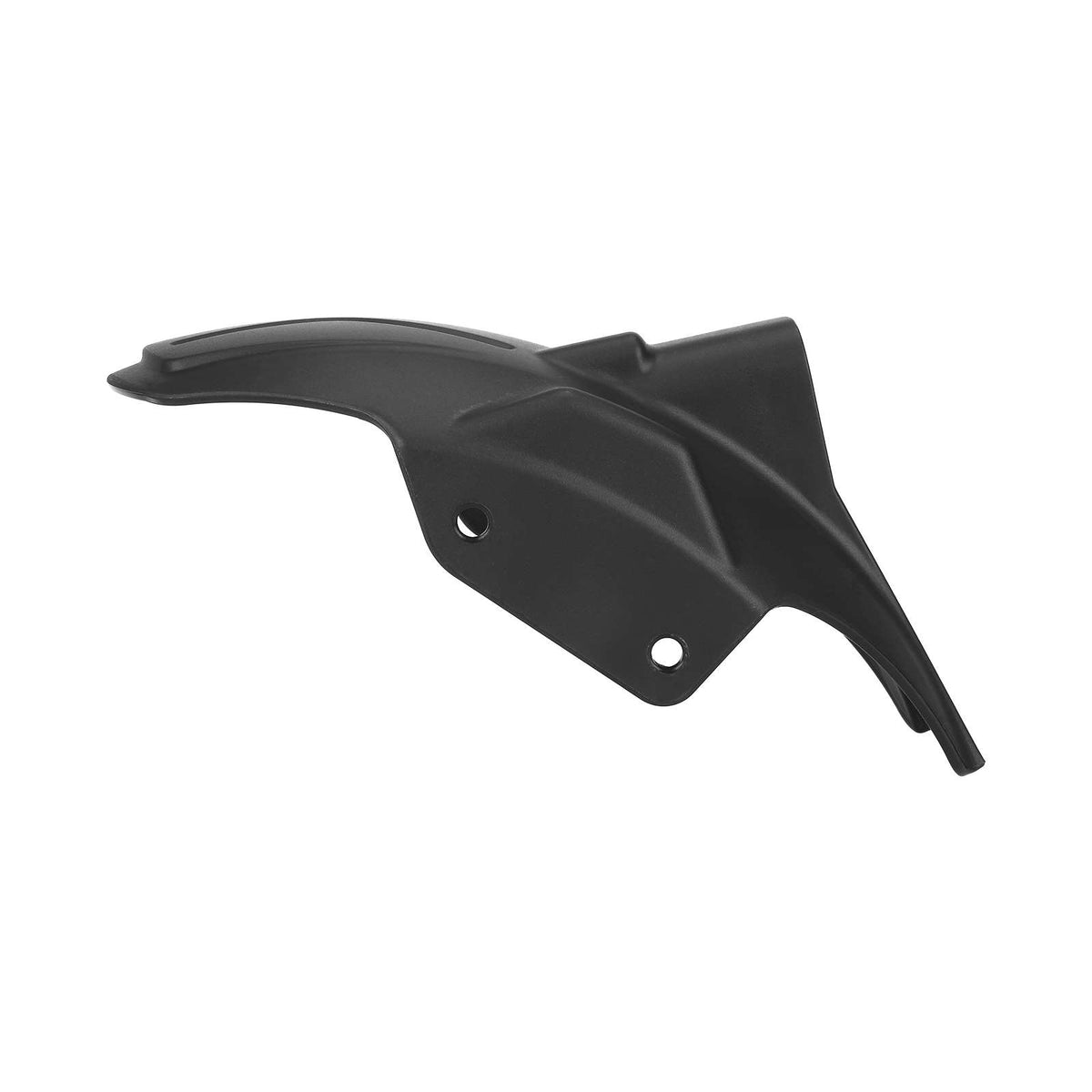

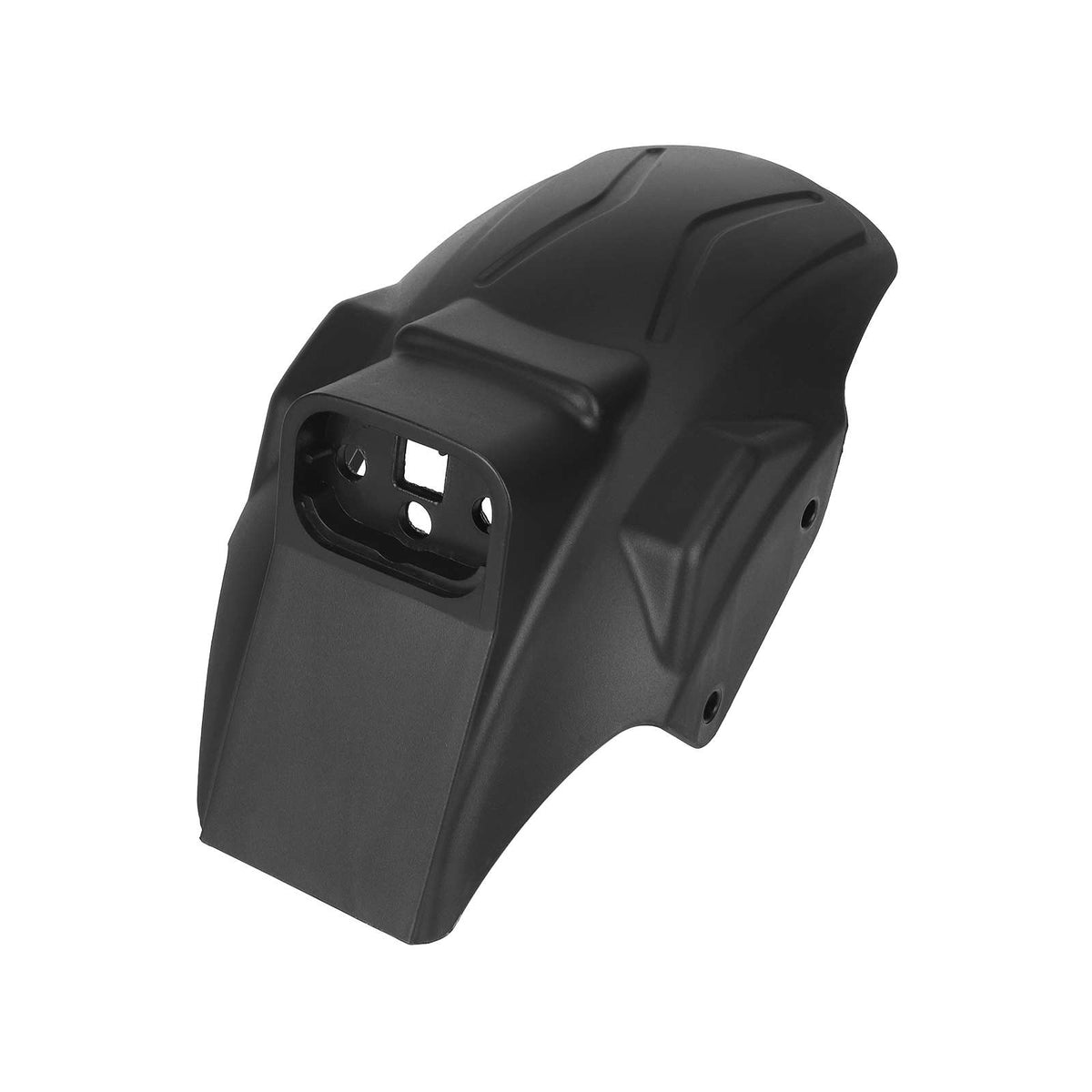

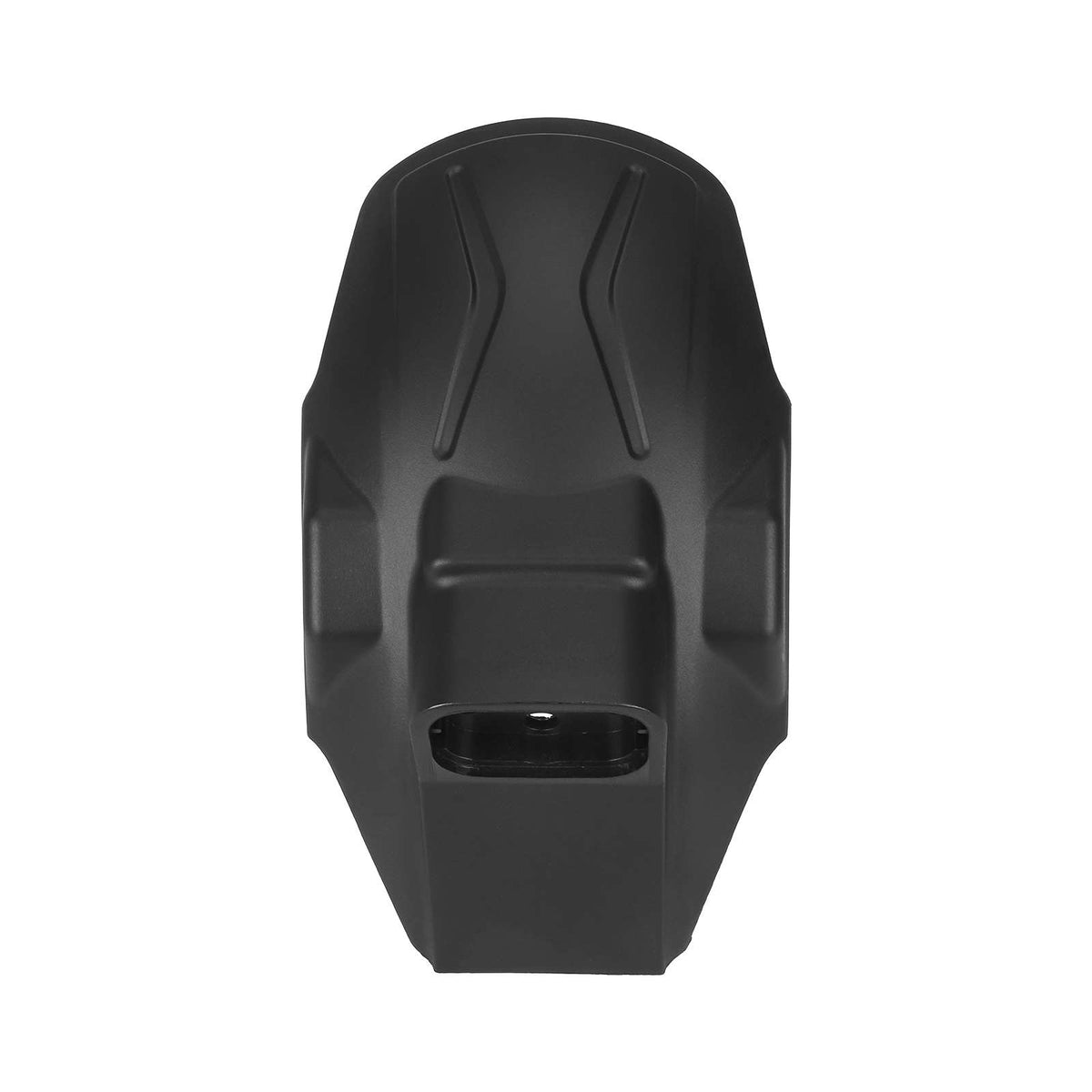

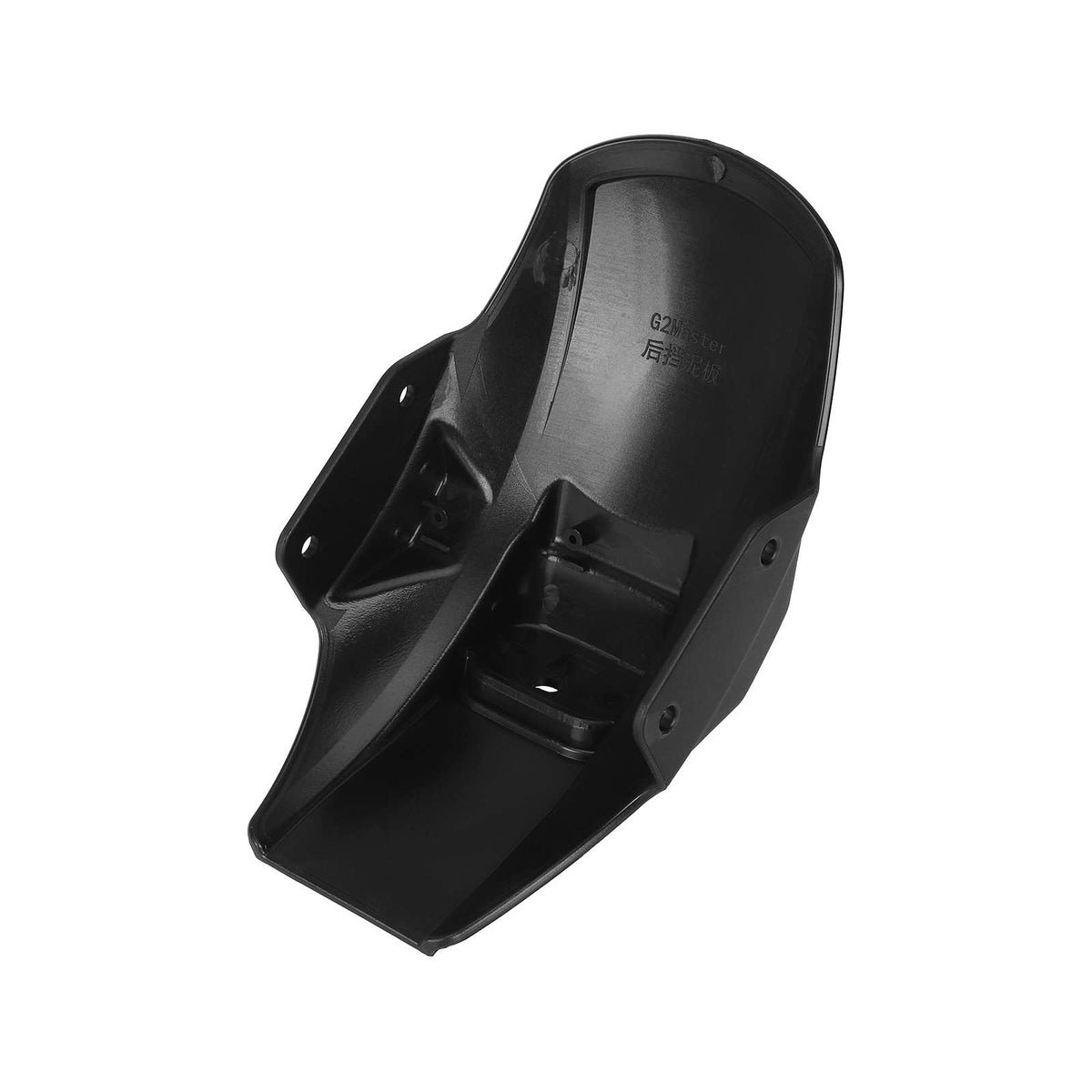

The black rear mudguard features longitudinal design grooves, an arch over the wheel, and lower mounting points. It replaces a damaged mudguard that has loosened, cracked, or is rubbing against the tire.

Features and fitment

• Model: KuKirin G2 Master 2025.
• Black rear mudguard without light; two main mounting holes approximately 46 mm apart.

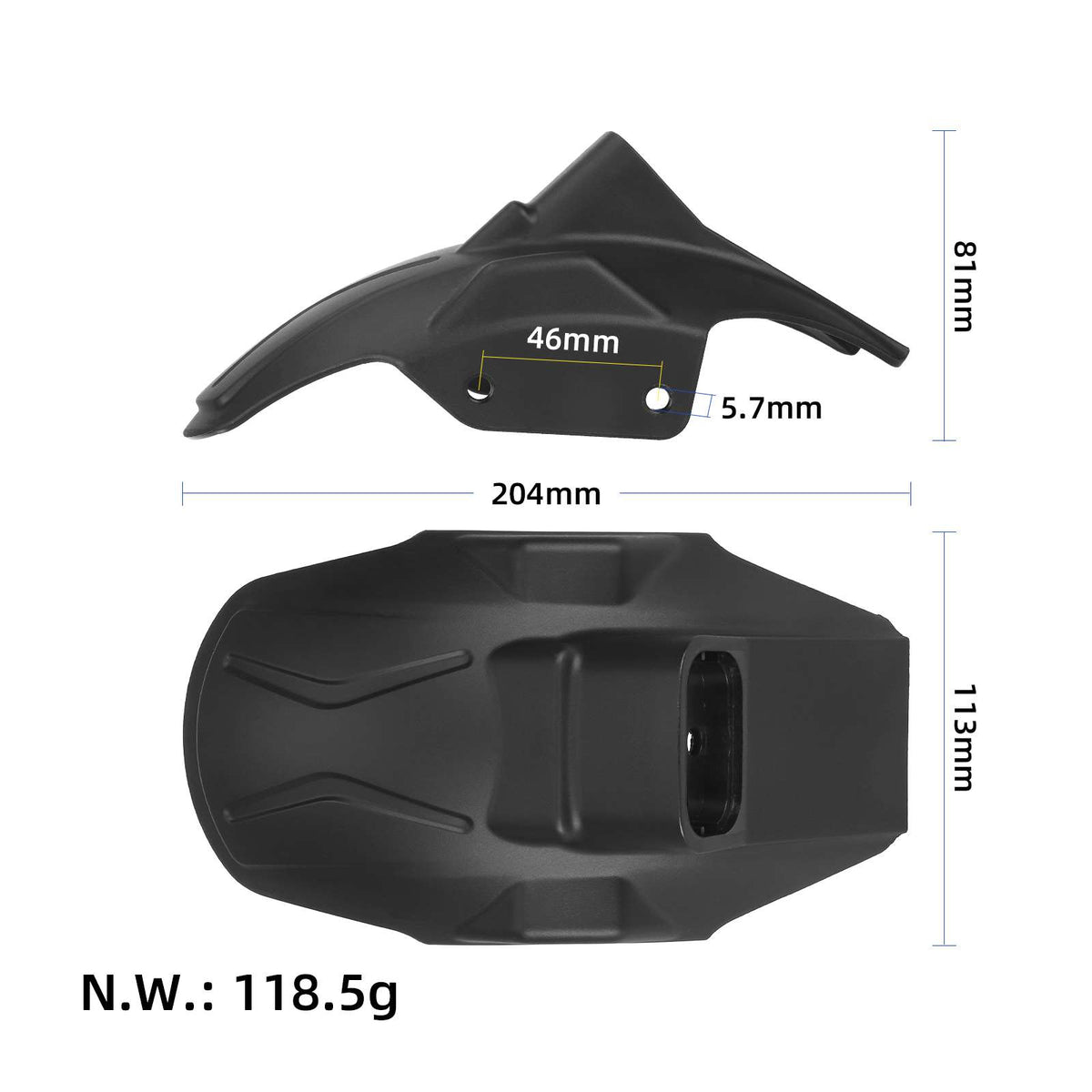

Approximate dimensions

• Mudguard: 204 × 113 × 81 mm.
• Mounting hole spacing: 46 mm.
• Hole diameter: 5.7 mm.

The dimensions are approximately 204 × 113 × 81 mm, with a main hole spacing of 46 mm. Please compare the mounts with your scooter model. The rear light and its wiring must be checked separately during replacement.

Installation without wheel rubbing

• Remove the damaged part and check the condition of the mounting points. Tighten the bolts evenly to avoid cracking the housing or bending the bracket.
• Rotate the wheel to check tire clearance around the entire circumference. On a suspended vehicle, sufficient clearance must remain even during suspension operation.
• Check the mounting after the first ride. Do not use the mudguard as a handle for lifting or as a footrest.
