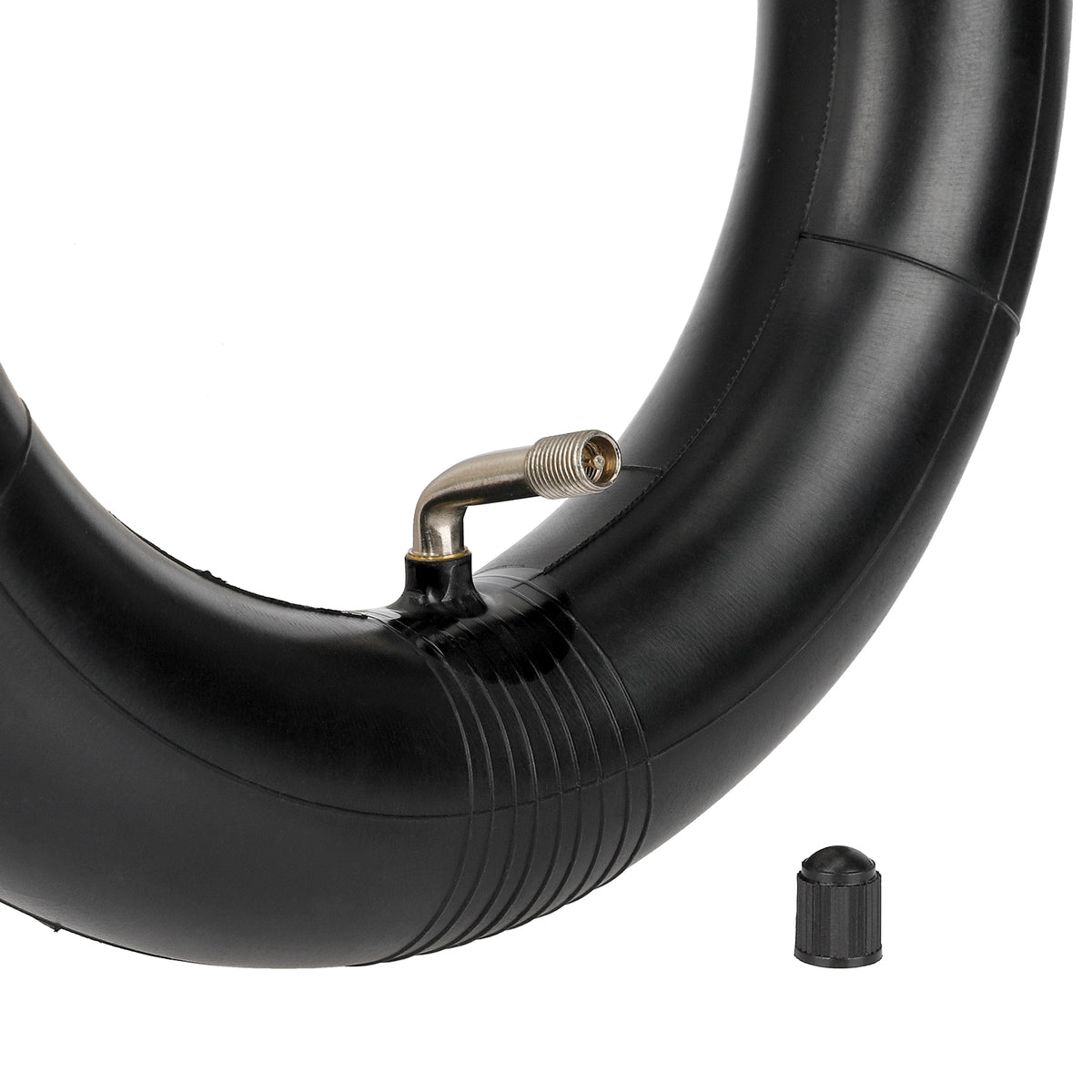

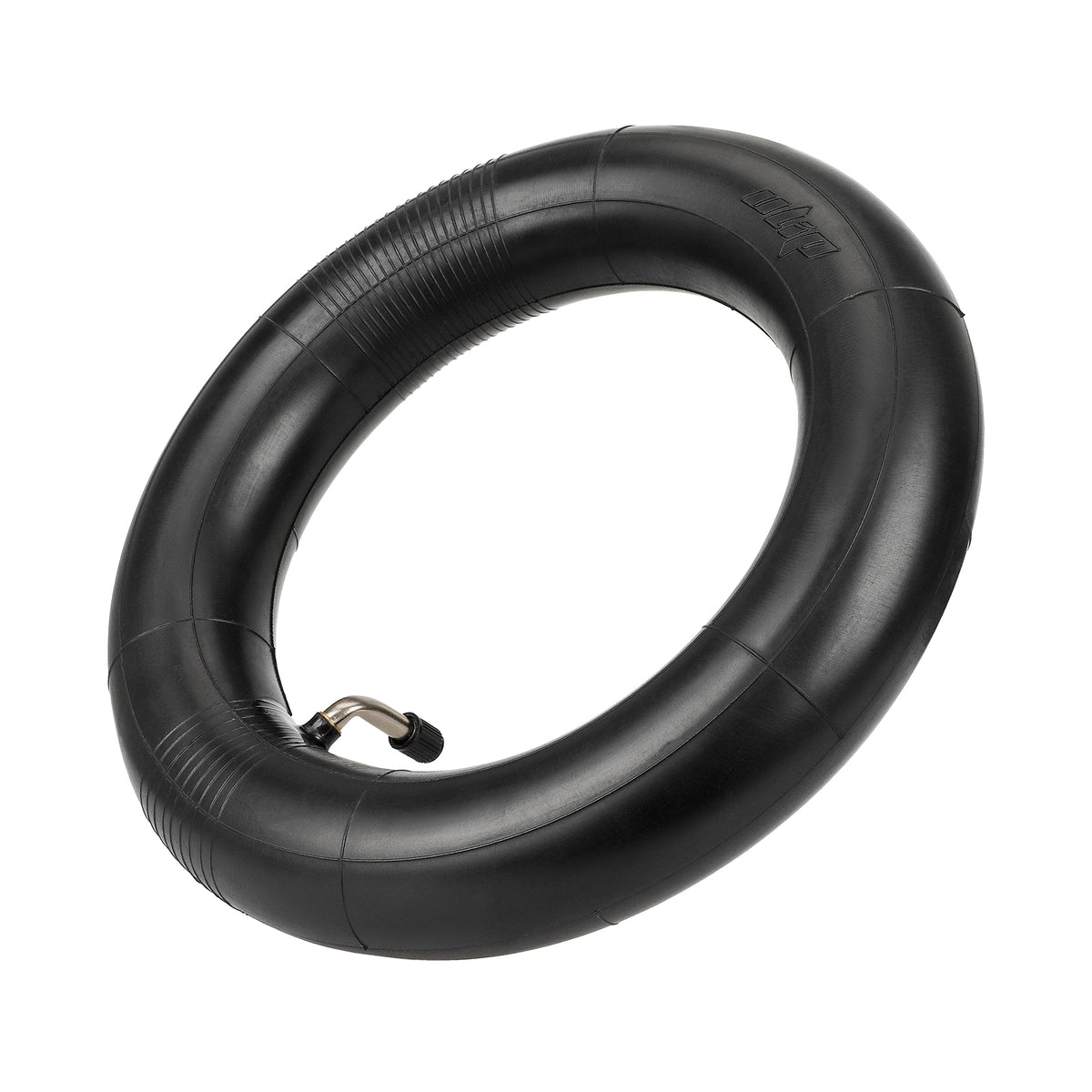

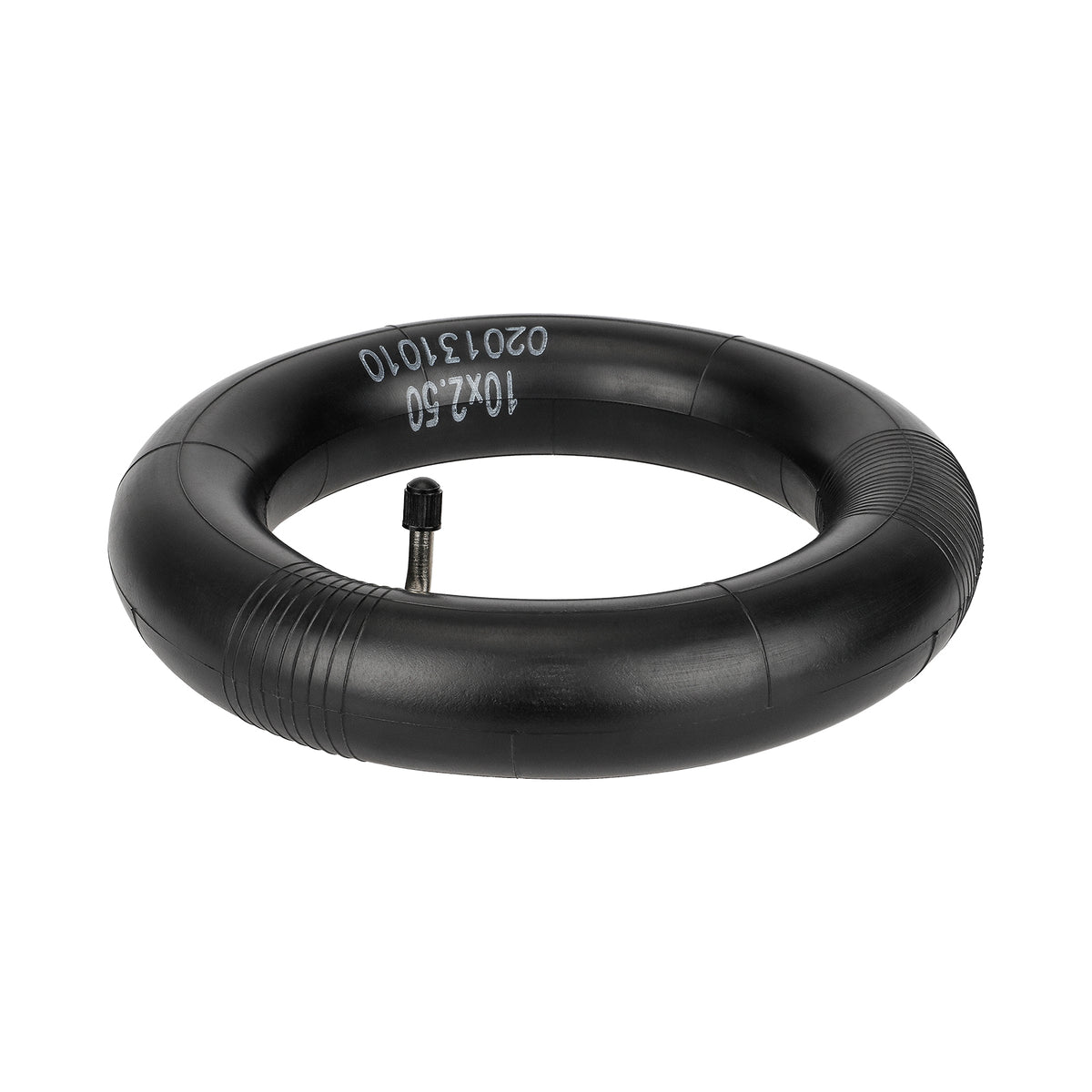

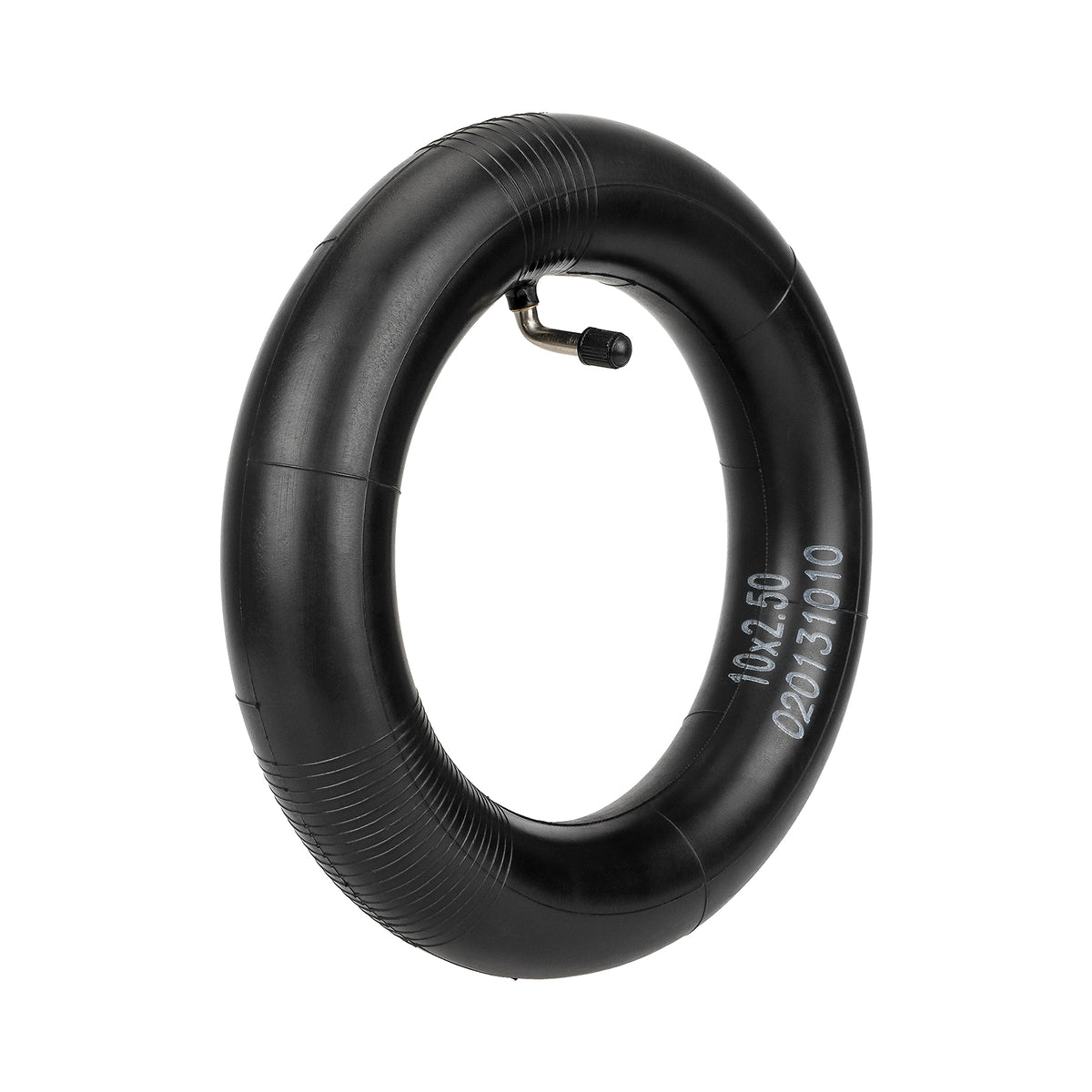

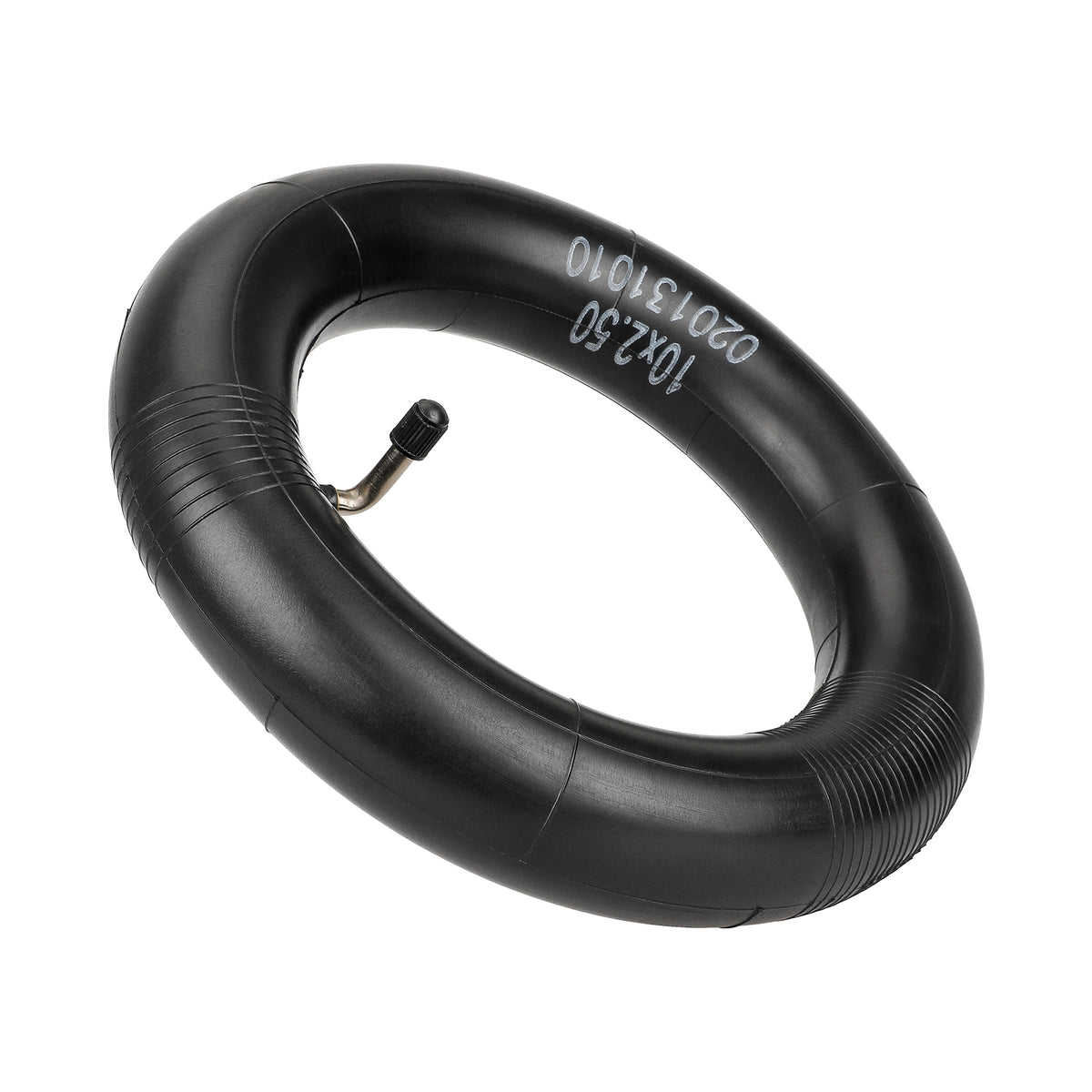

Reinforced 10 × 2.5 inner tube with 90° valve for electric scooter KuKirin G-Booster

Reinforced ULIP inner tube with curved valve

The 10 × 2.5 ULIP inner tube features a reinforced design and a metal valve with a 90-degree bend. It is designed for compatible ten-inch wheel assemblies using an inner tube.

Features and fitment

• Model: KuKirin G-Booster.
• Reinforced ULIP inner tube 10 × 2.5; 90° curved valve.

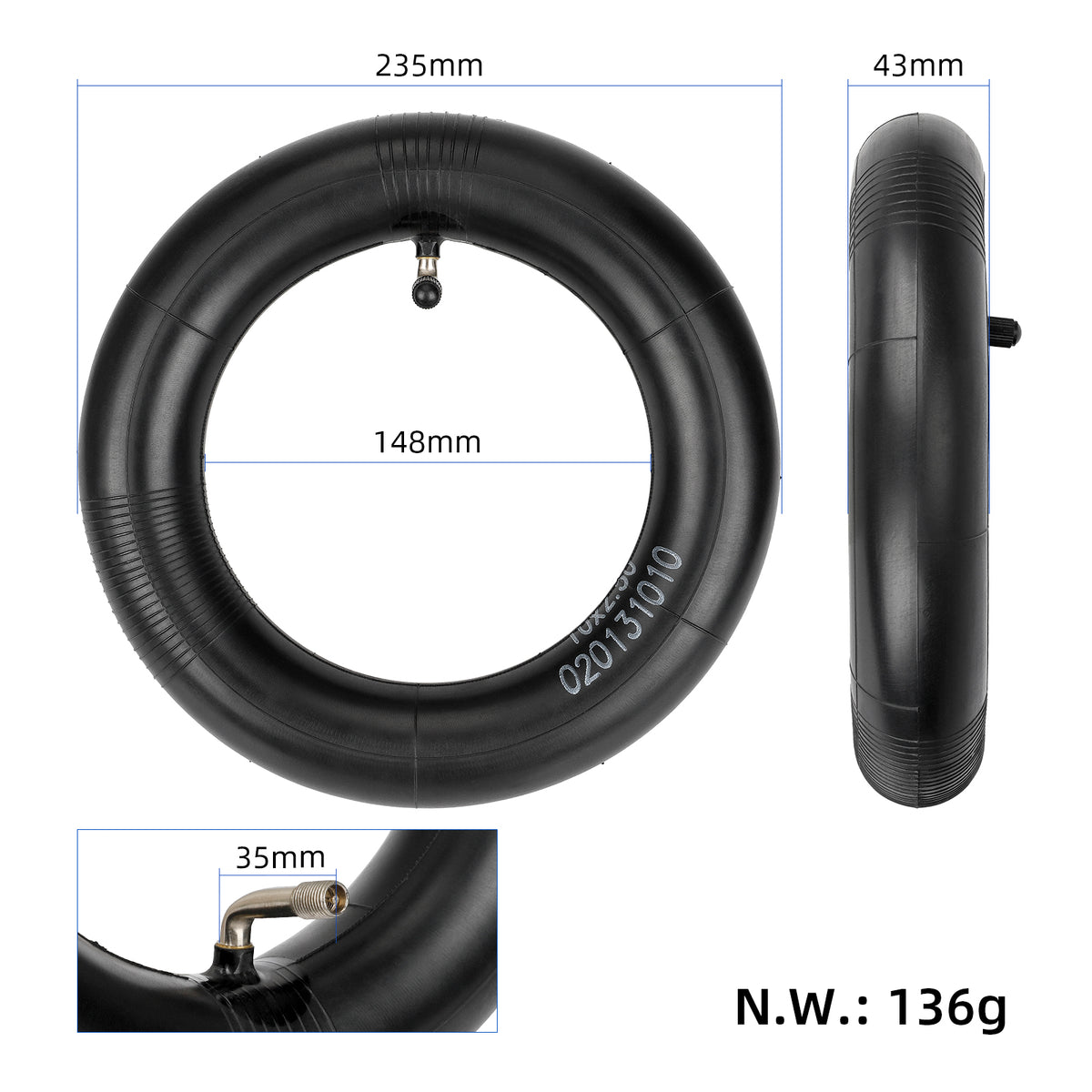

Approximate dimensions

• Outer diameter of inner tube: 235 mm.
• Inner diameter of inner tube: 148 mm.
• Inner tube width: 43 mm.
• Curved valve: 35 mm length, 90° angle.

In addition to tire dimensions, check the valve orientation and access near the motor. The valve should protrude from the rim hole without tension, leaving enough room to attach a pump.

Replacement without pinching the inner tube

• Before replacement, identify the cause of the puncture in the tire or on the rim. A foreign object, sharp edge, or damaged rim tape can immediately damage a new inner tube as well.
• Inflate the inner tube slightly, align the valve with the opening, and distribute it evenly within the tire. When installing the bead, do not pinch it with installation tools.
• Inflate to the pressure allowed for the wheel assembly. Check the valve position and seal; do not use valve caps to stop leaks.
