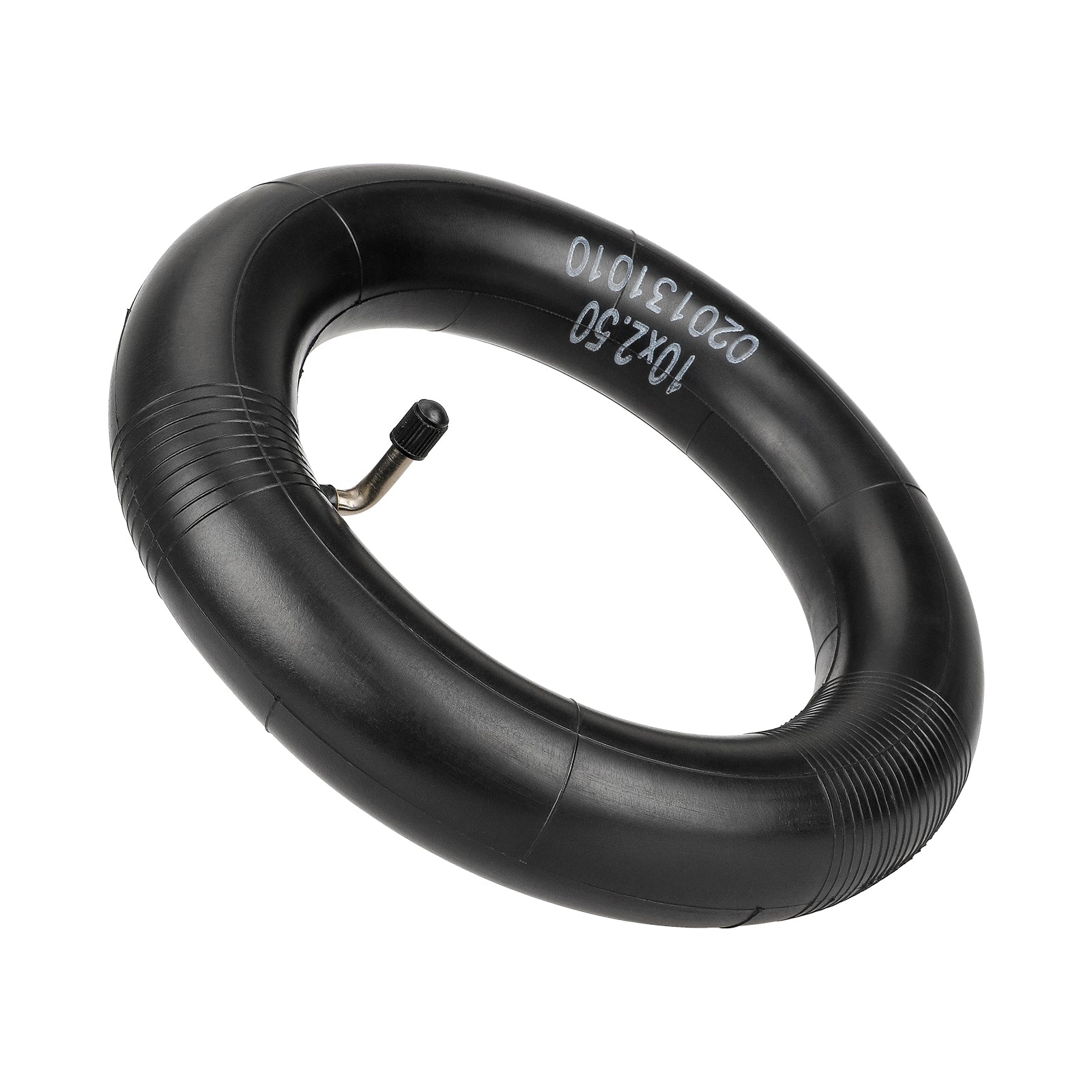

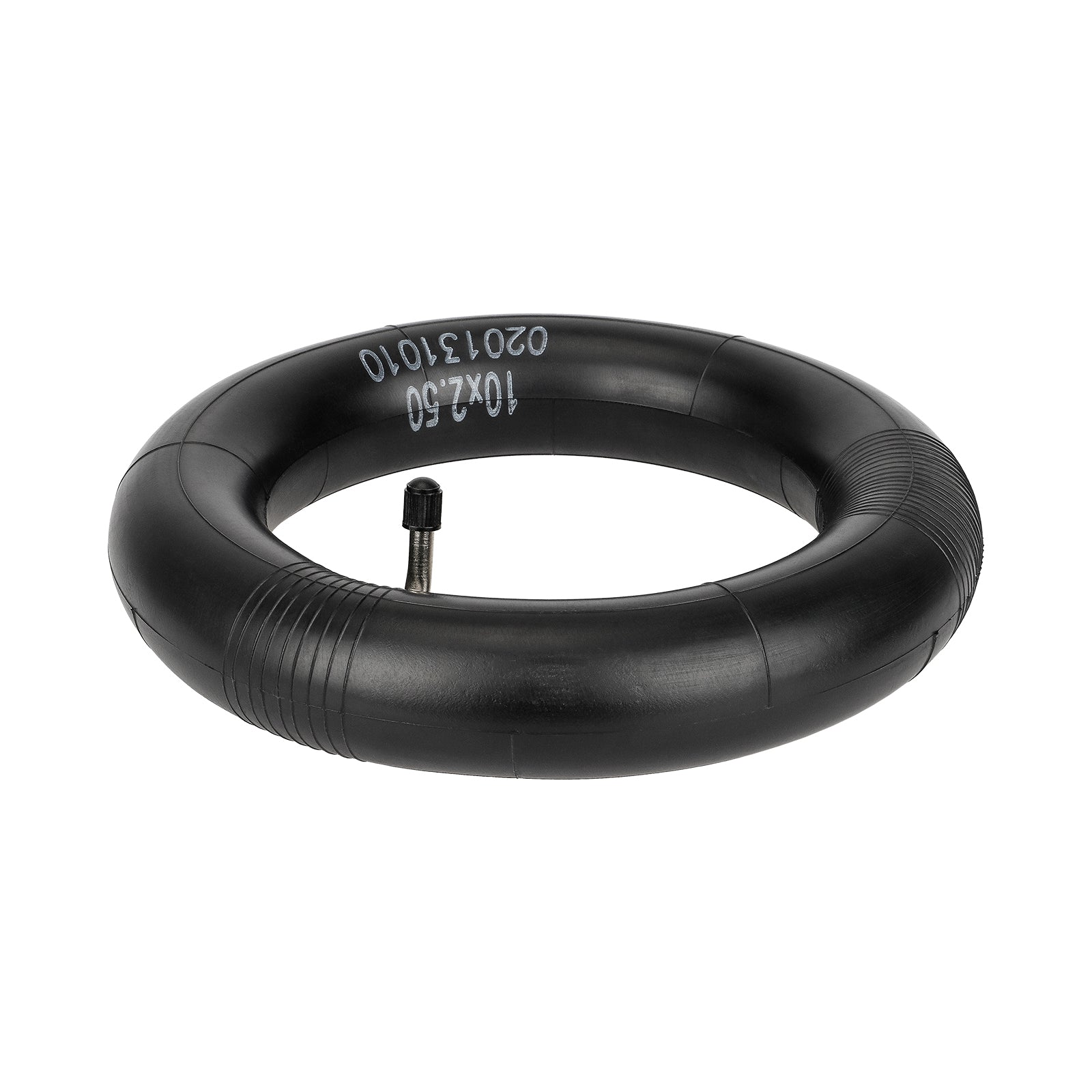

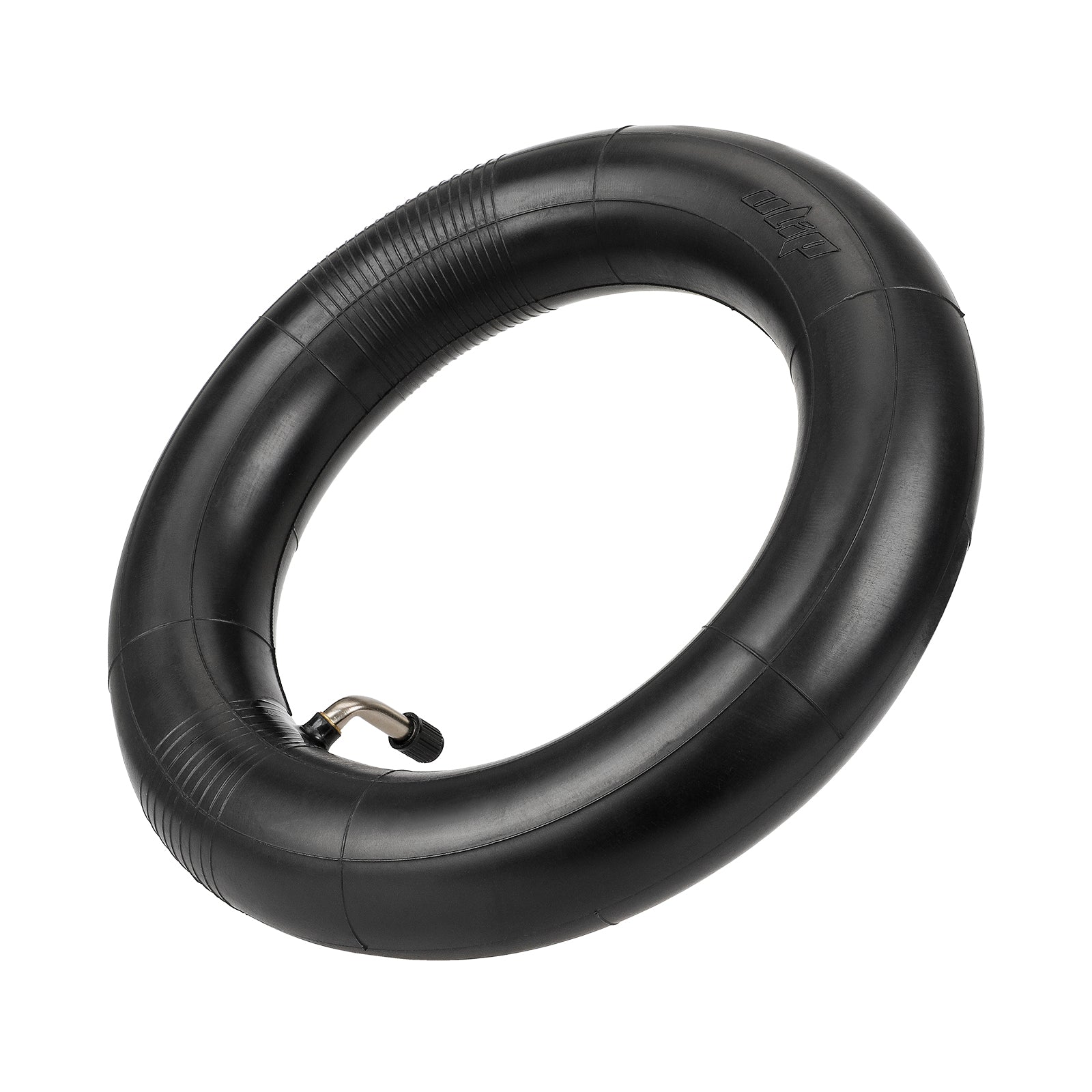

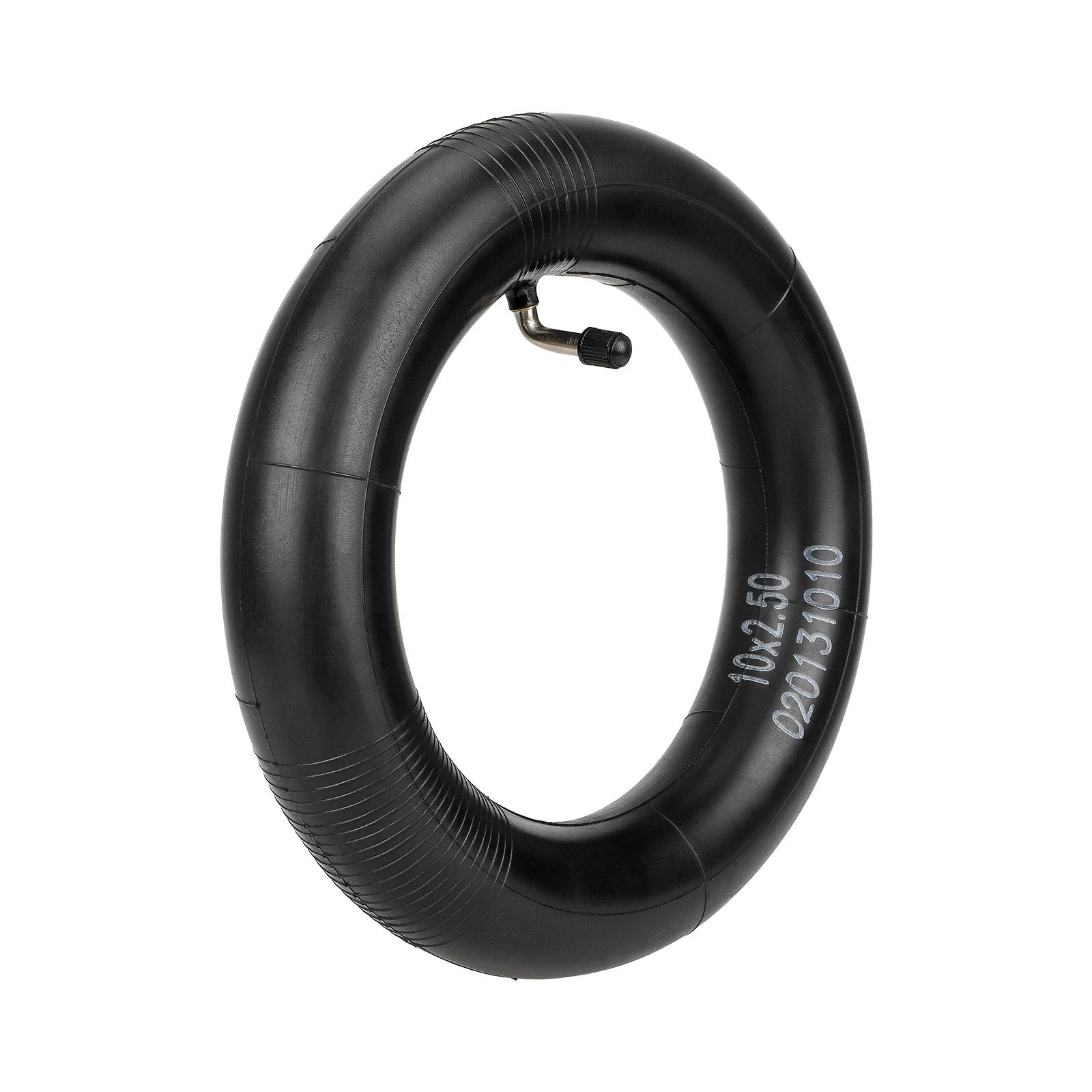

Reinforced 10 × 2.5 inner tube with 90° valve for KuKirin G1 electric scooter

Reinforced ULIP inner tube with angled valve

The 10×2.5 ULIP inner tube features a reinforced design and a metal valve with a 90-degree bend. It is designed for compatible 10-inch wheel assemblies requiring an inner tube.

Features and fitment

• Model: KuKirin G1.
• Reinforced ULIP inner tube 10×2.5; 90° angled valve.

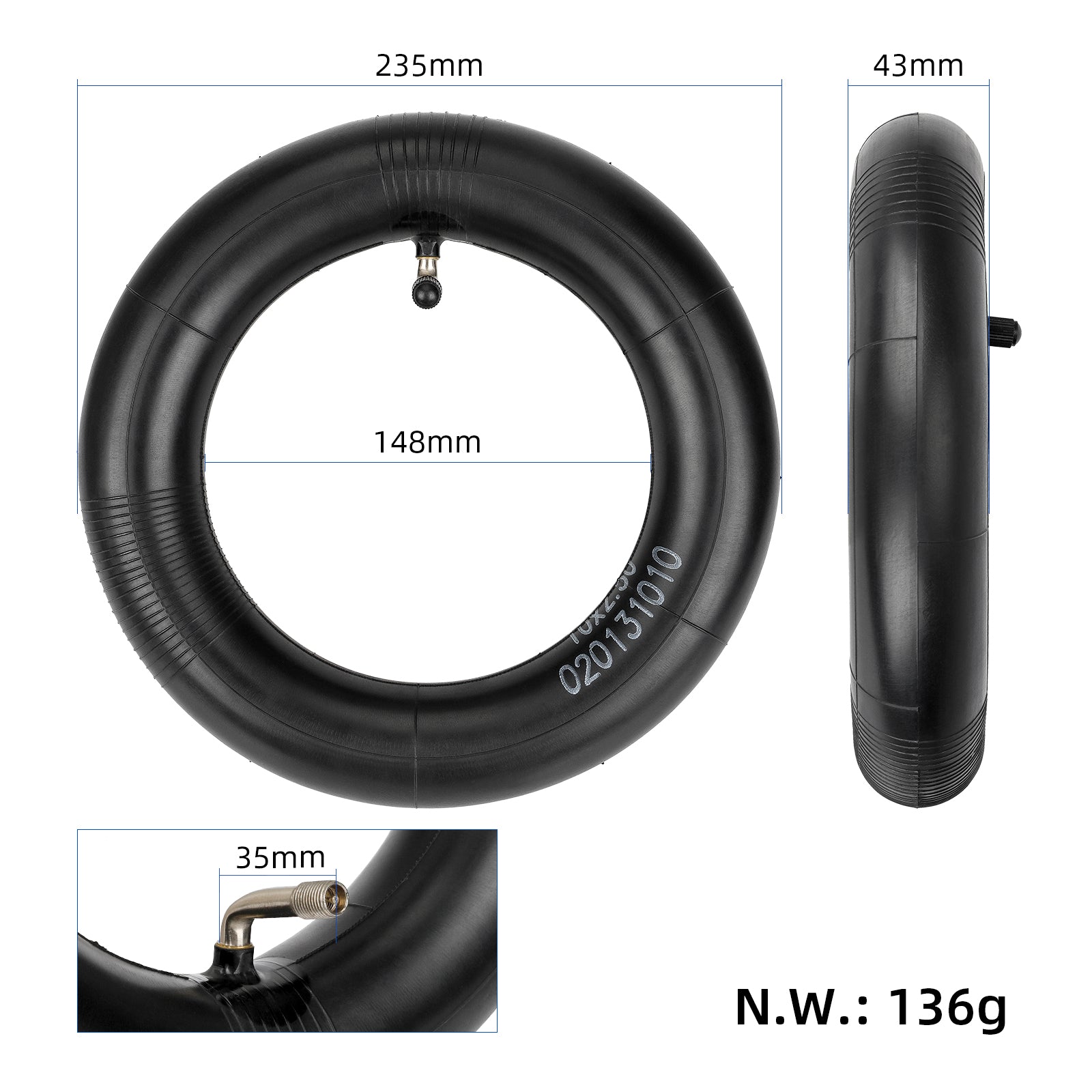

Approximate dimensions

• Outer diameter: 235 mm.
• Inner diameter: 148 mm.
• Width: 43 mm.

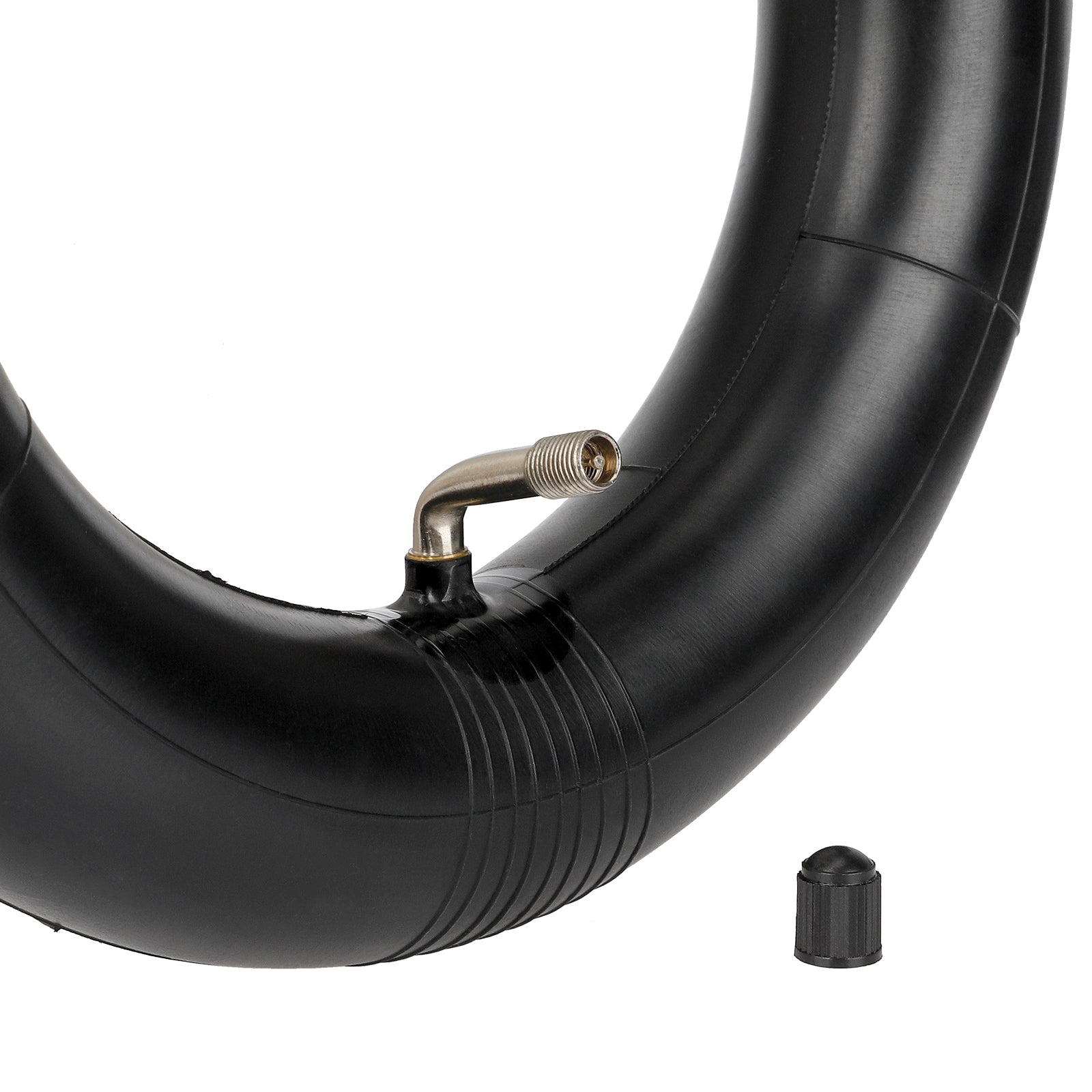

• Angled valve: length 35 mm, angle 90°.

In addition to the tire size, check the valve orientation and accessibility relative to the motor. The valve should protrude from the rim hole without tension, with sufficient clearance to attach a pump.

Replacement without pinching the inner tube

• Before replacing, identify the cause of the puncture in the tire or rim. A foreign object, sharp edge, or damaged rim tape can immediately damage a new inner tube as well.
• Inflate the tube slightly, align the valve with the opening, and distribute it evenly within the tire. Do not pinch it with installation tools when seating the tire bead.
• Inflate to the pressure recommended for the wheel assembly. Check the valve position and sealing; do not use the valve cap to stop leaks.
