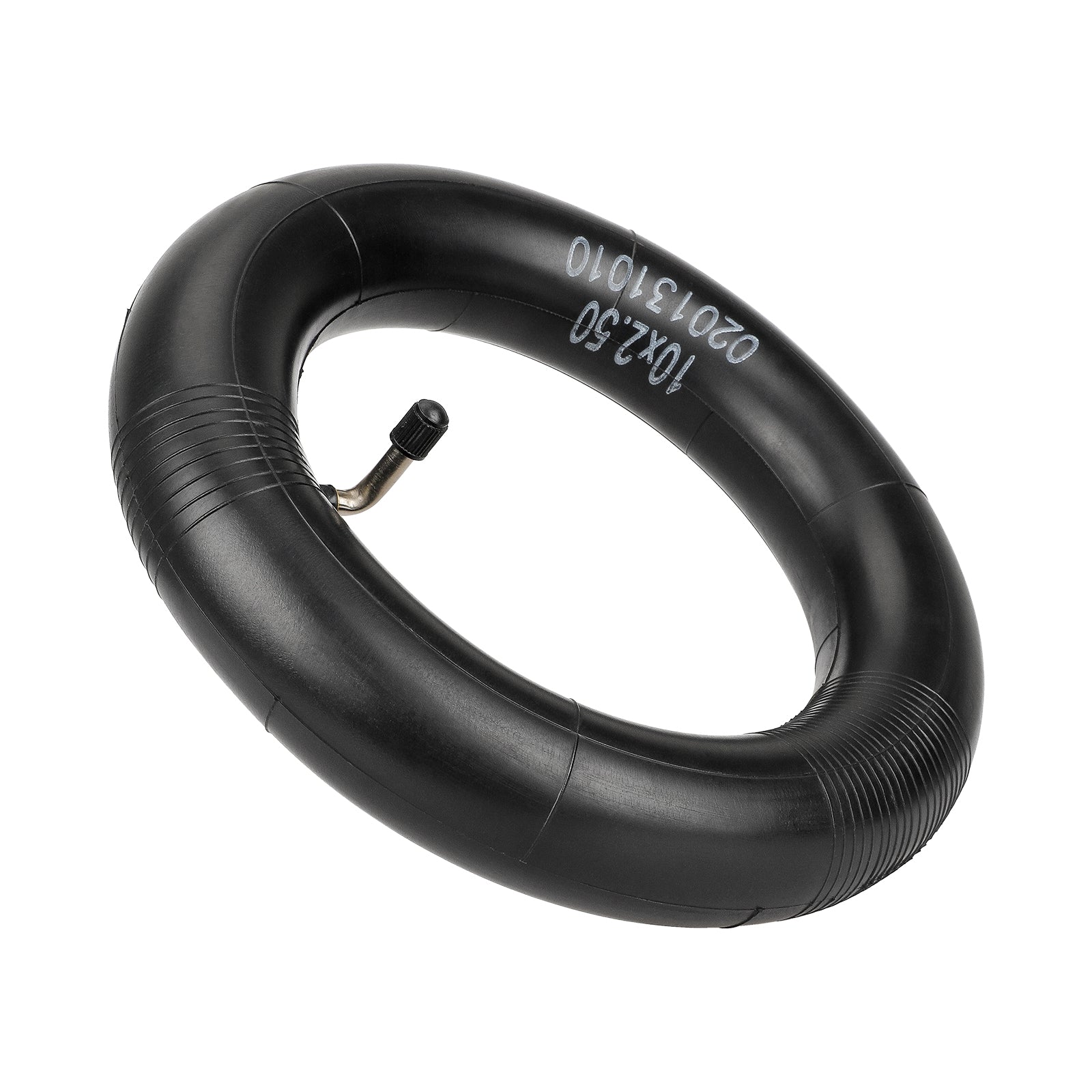

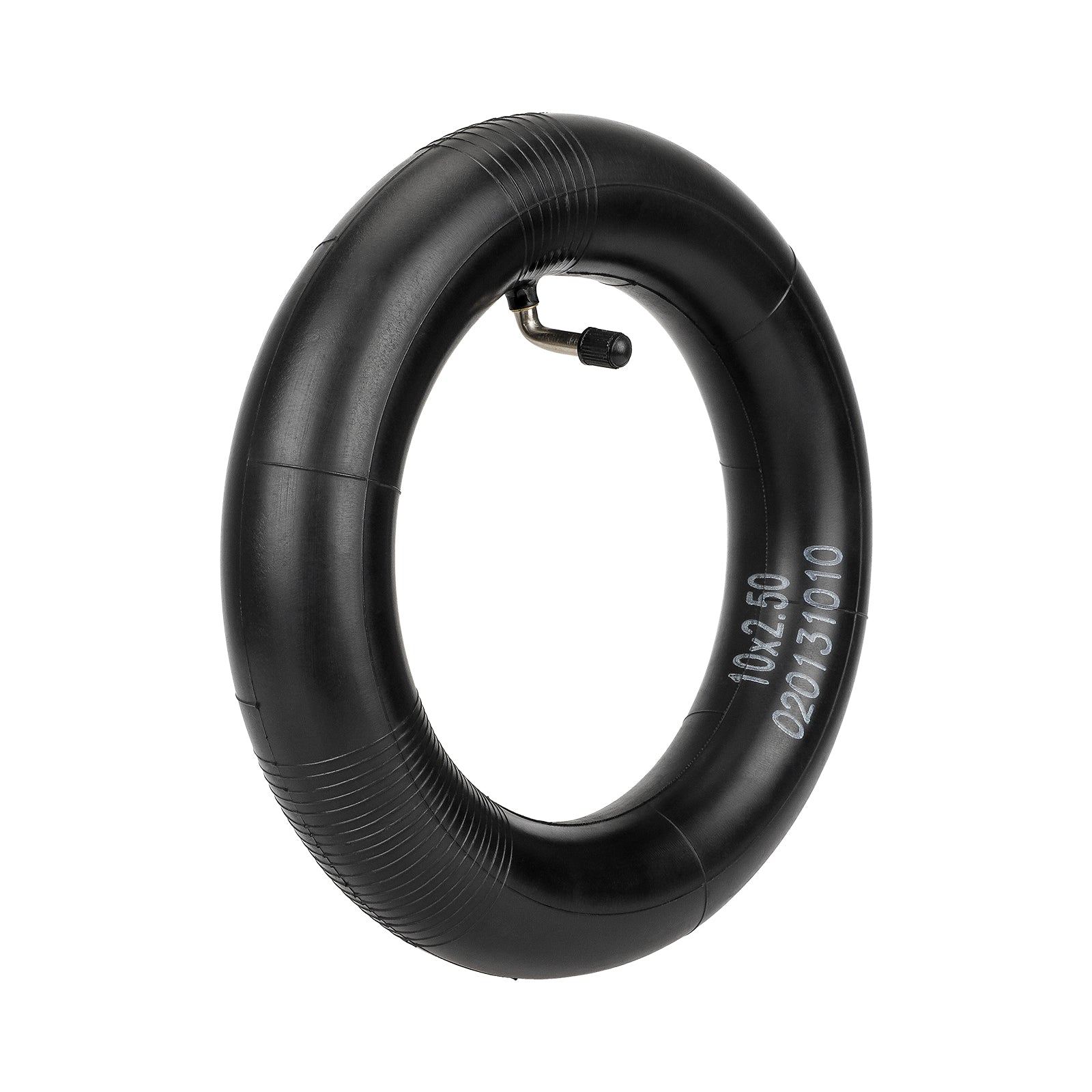

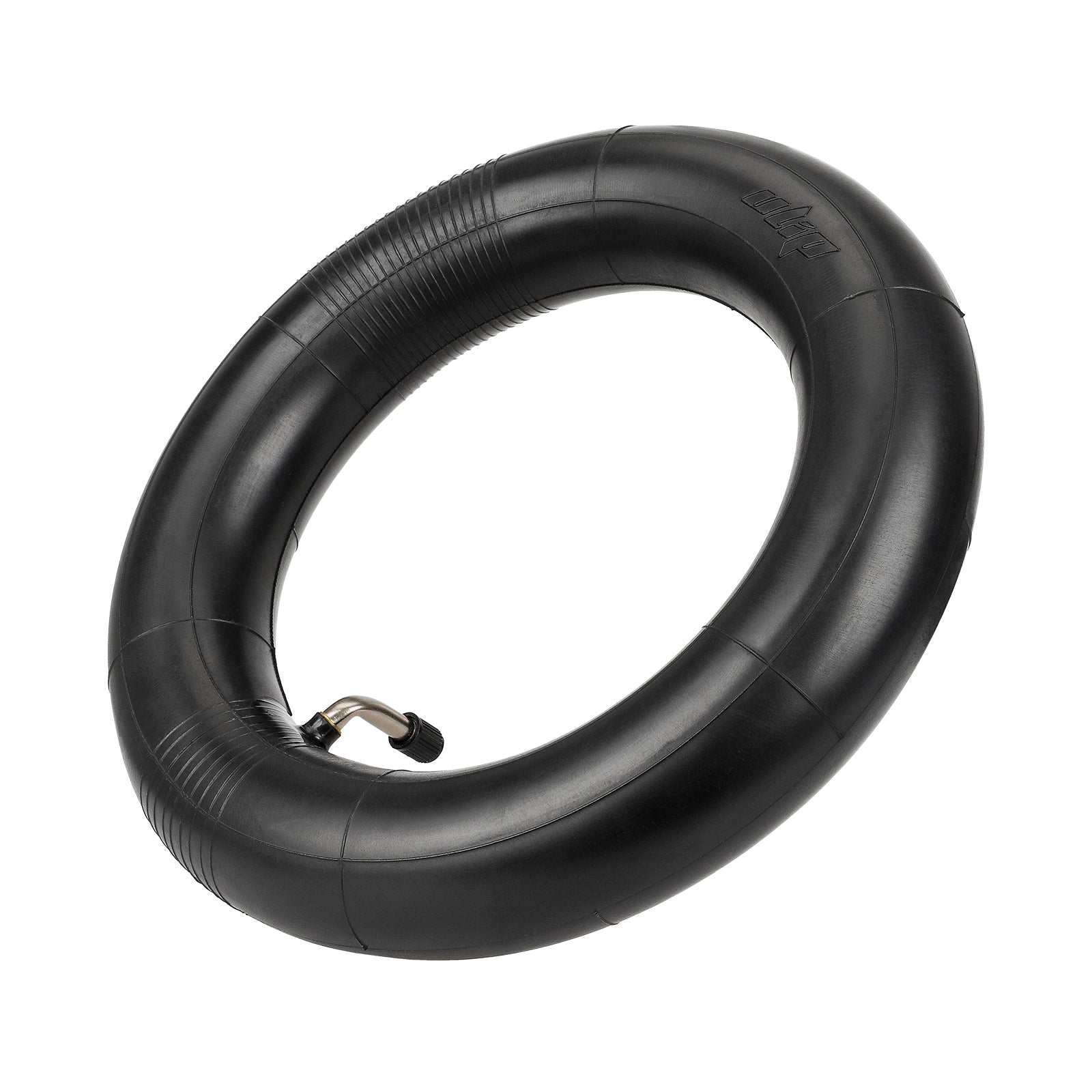

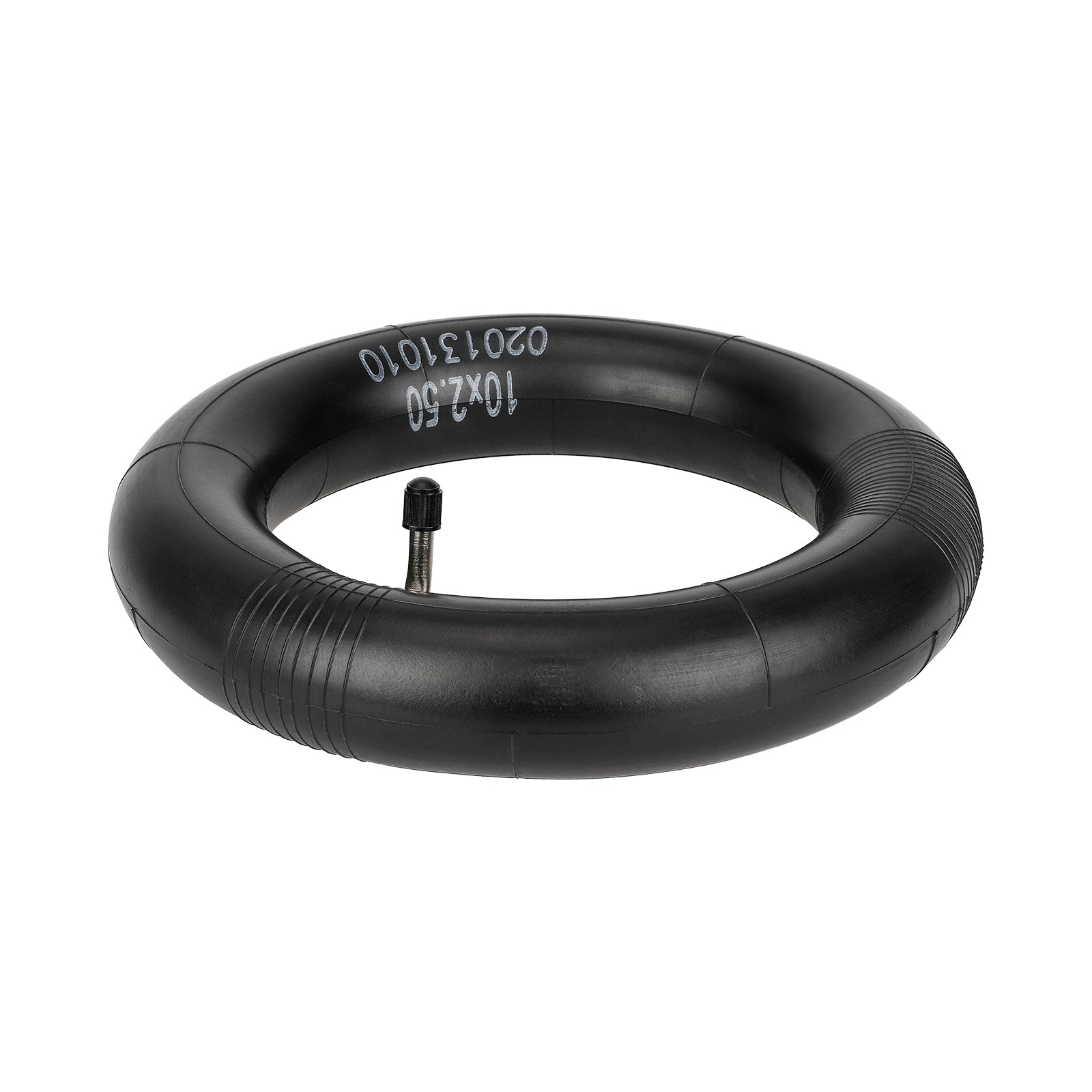

Reinforced 10 × 2.5 inner tube with 90° valve for electric scooter KuKirin G2 Max

Reinforced ULIP inner tube with angled valve

The ULIP 10 × 2.5 inner tube features a reinforced design and a 90-degree metal bent valve. It is intended for the compatible ten-inch wheel assembly using an inner tube.

Features and fitment

• Model: KuKirin G2 Max.
• Reinforced ULIP 10 × 2.5 inner tube; 90° bent valve.

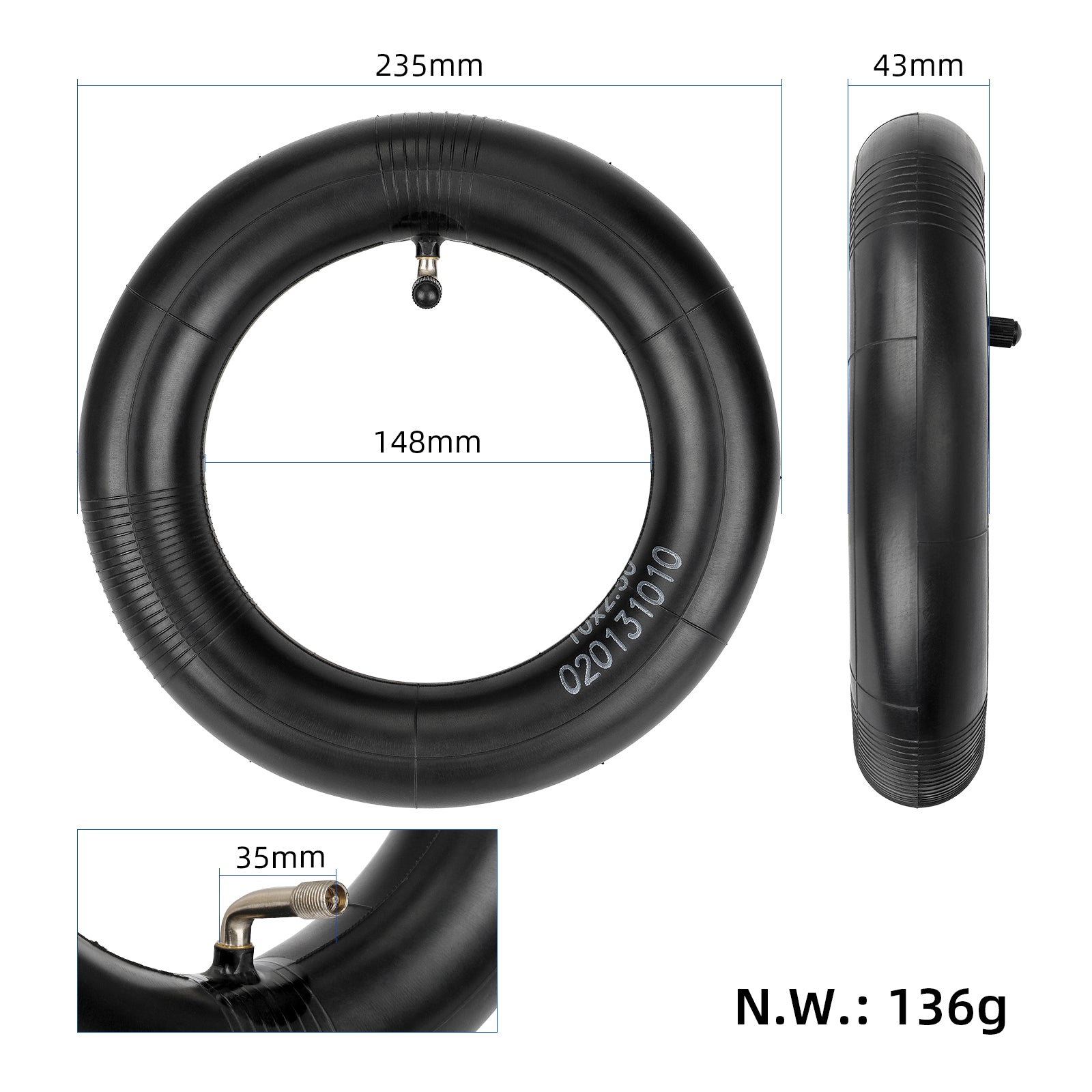

Approximate dimensions

• Outer diameter of inner tube: 235 mm.
• Inner diameter of inner tube: 148 mm.
• Tube width: 43 mm.

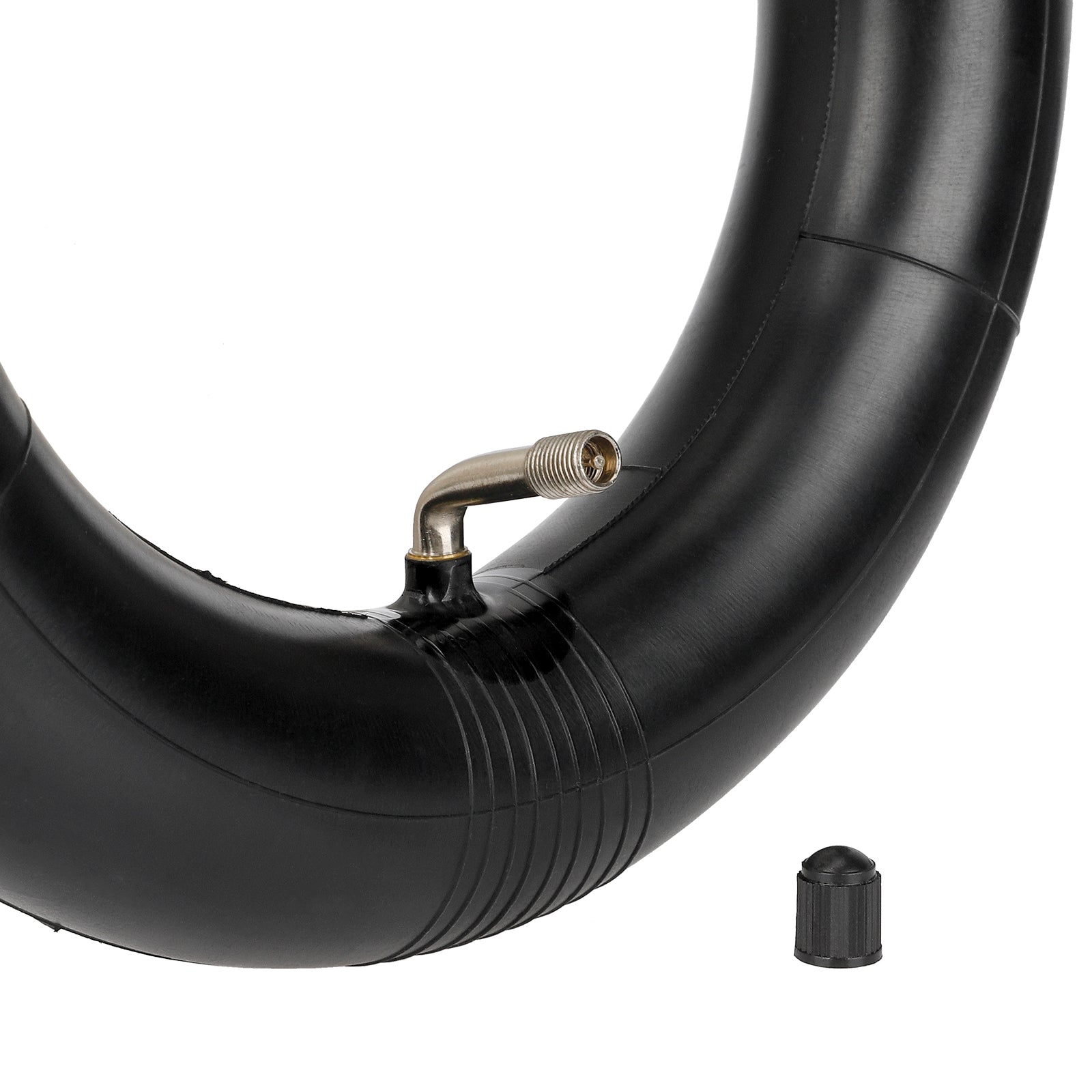

• Bent valve: length 35 mm, angle 90°.

In addition to the tire dimension, check the valve direction and access to it at the motor. The valve should protrude from the rim opening without tension, with enough room to connect the pump.

Replacement without pinching the inner tube

• Before replacement, identify the cause of the puncture in the tire or on the rim. A foreign object, sharp edge, or damaged protective strip can immediately damage the new inner tube as well.
• Slightly inflate the inner tube, align the valve with the hole, and distribute it evenly in the tire. When installing the bead, do not pinch it with tire levers.
• Inflate to the pressure allowed for the wheel assembly. Check the position of the valve and sealing; do not use the valve cap to stop a leak.
