Reinforced 10 × 2.5 inner tube with 90° valve for KuKirin M4 Pro electric scooter

ULIP reinforced inner tube with angled valve

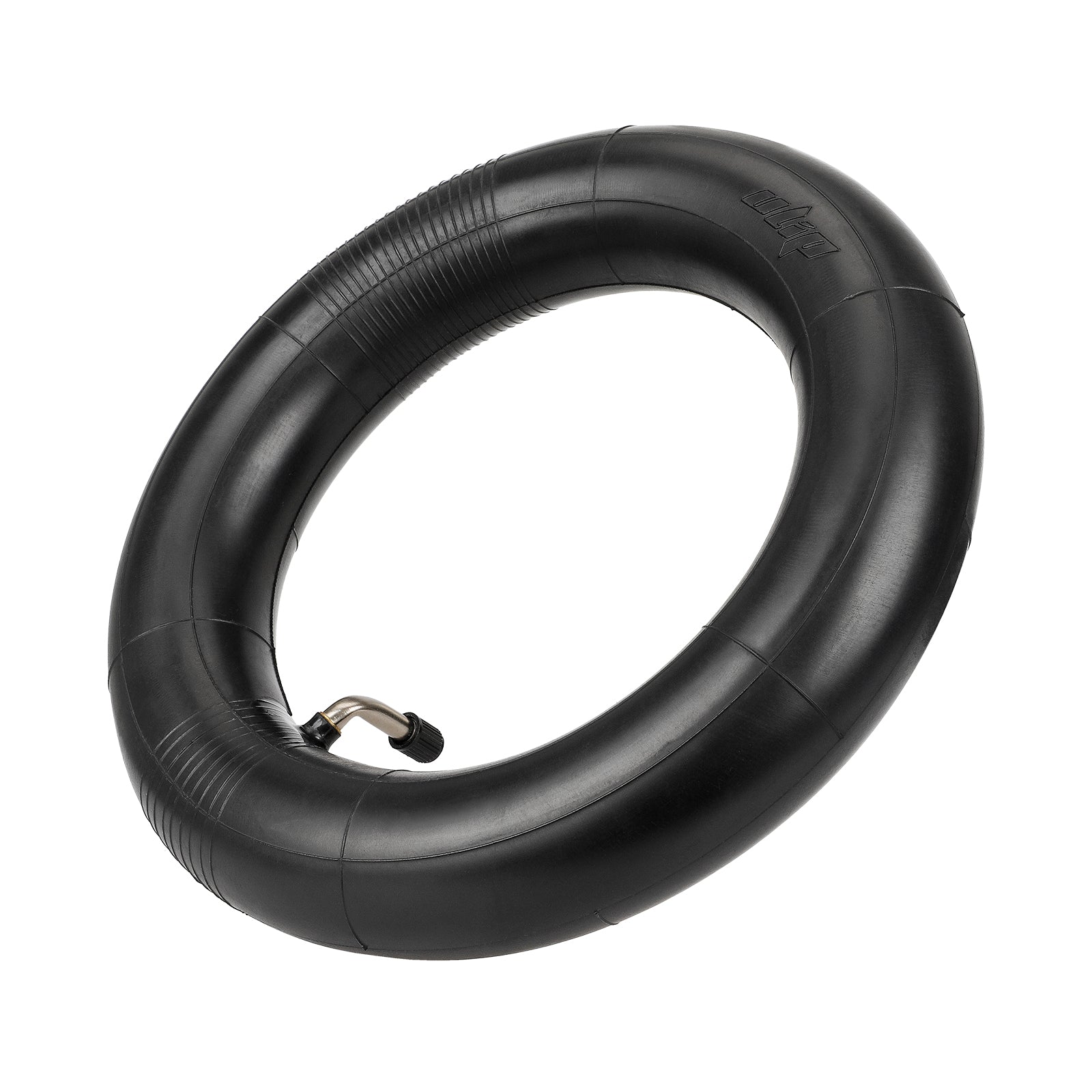

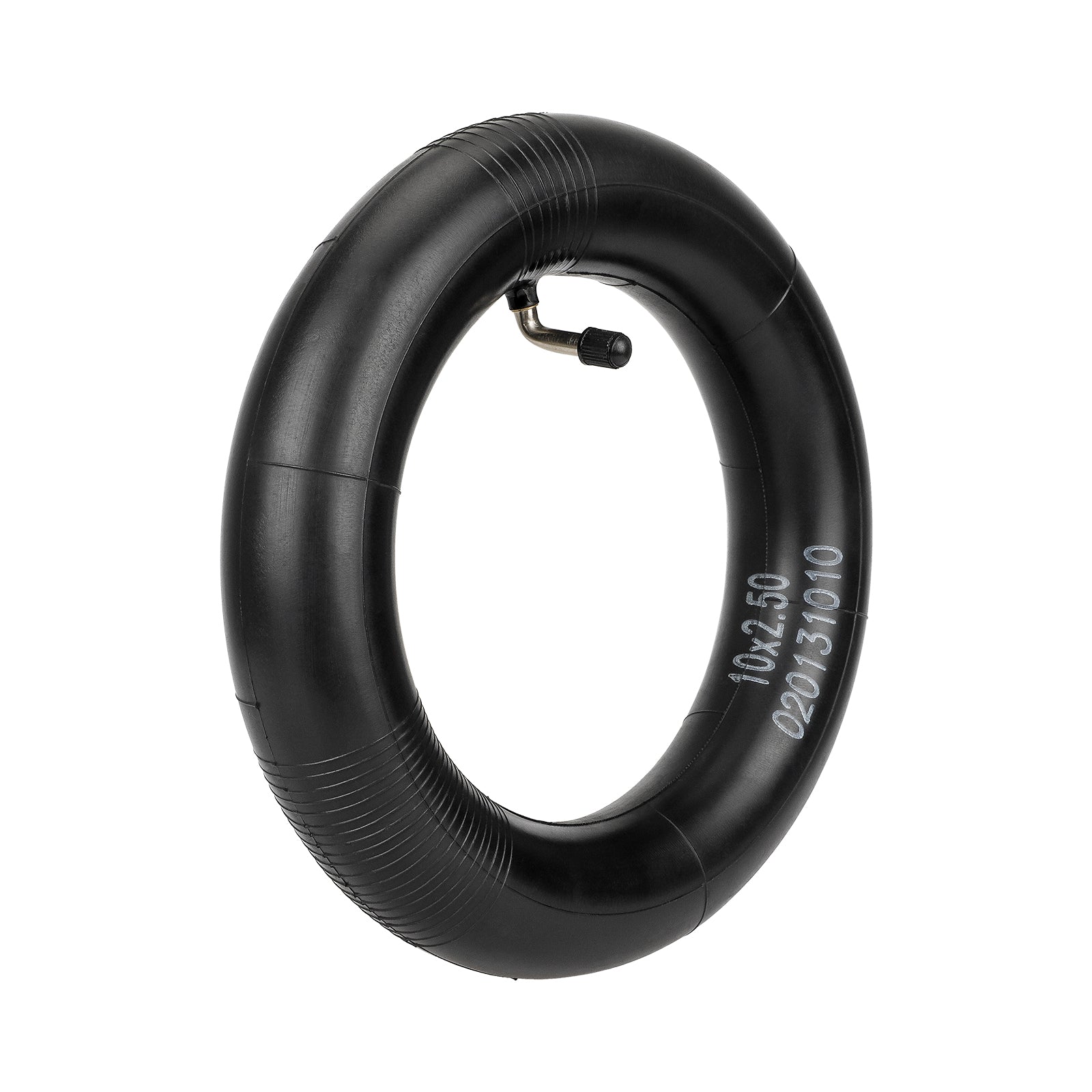

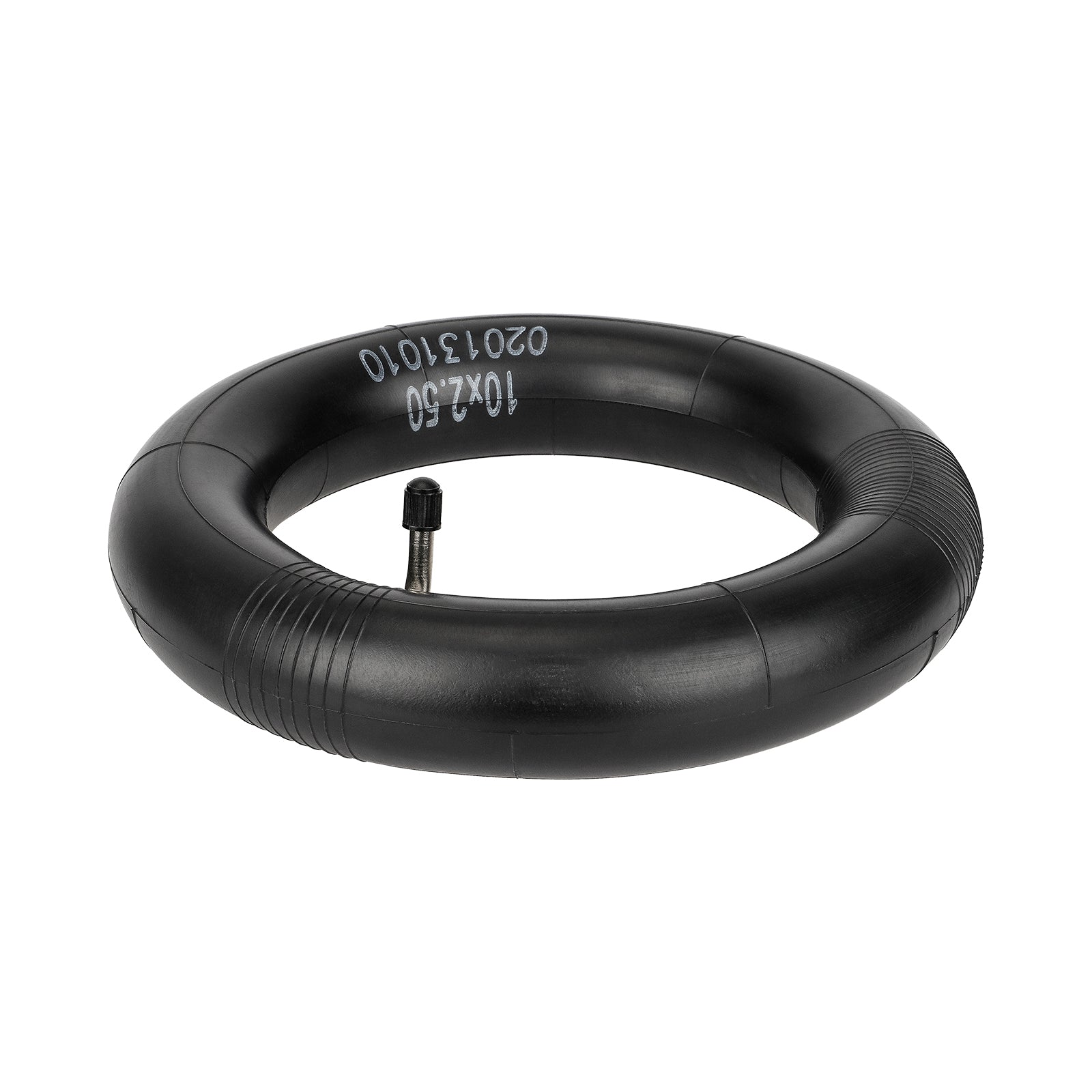

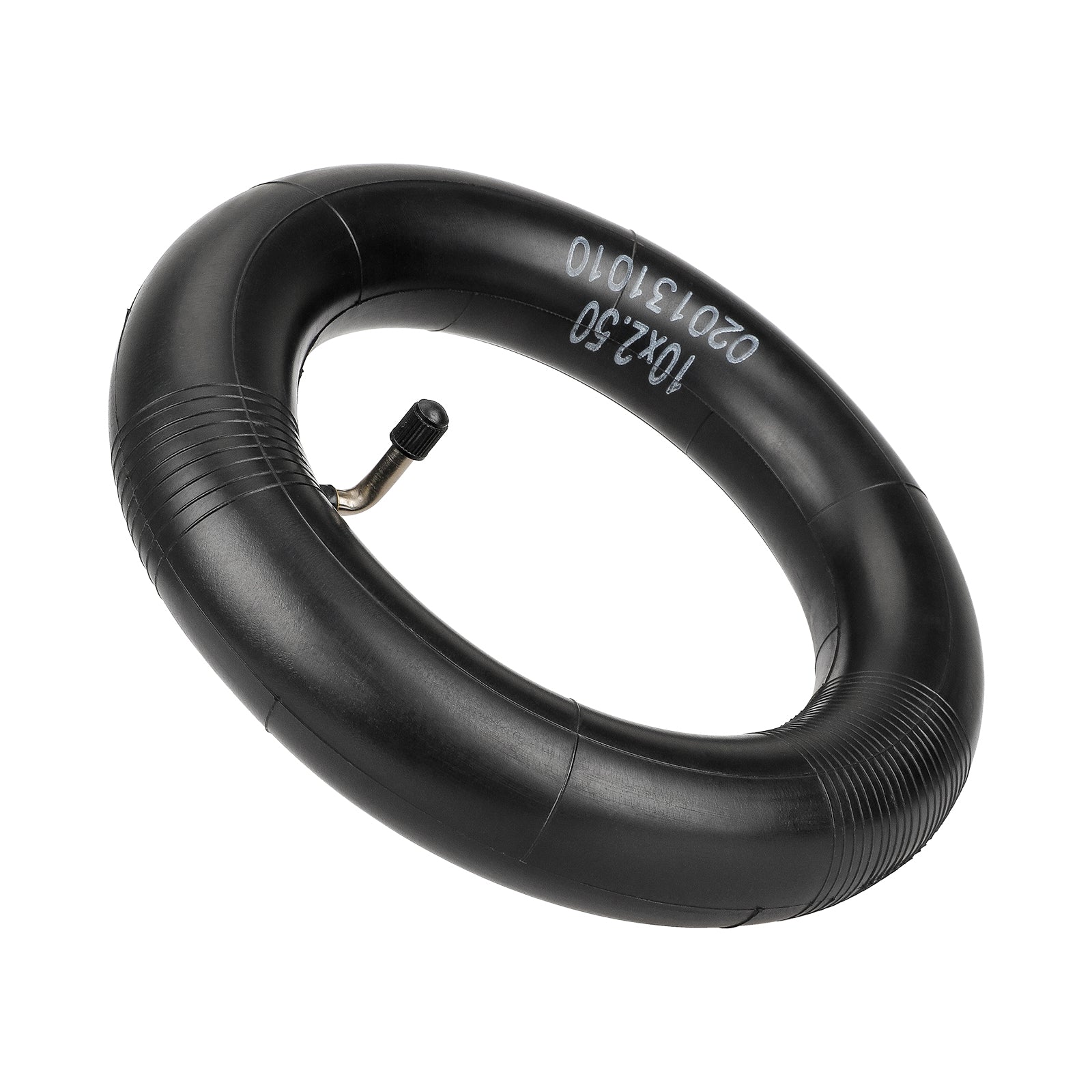

The ULIP 10 × 2.5 inner tube features a reinforced design and a 90-degree metal valve. It is designed for compatible 10-inch wheel assemblies requiring an inner tube.

Features and fitment

• Model: KuKirin M4 Pro.
• Reinforced ULIP 10 × 2.5 inner tube; 90° angled valve.

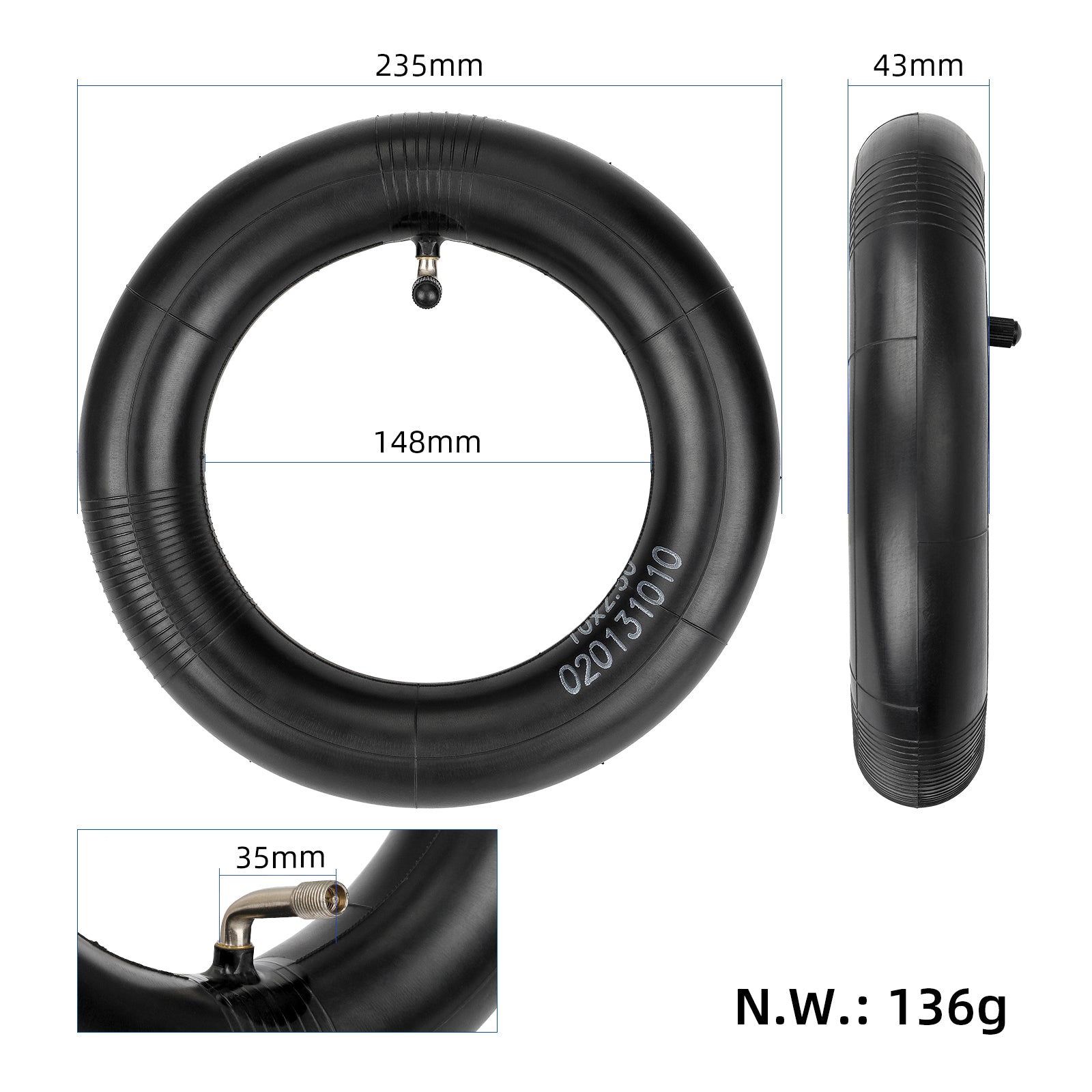

Approximate dimensions

• Inner tube outer diameter: 235 mm.
• Inner tube inner diameter: 148 mm.
• Inner tube width: 43 mm.

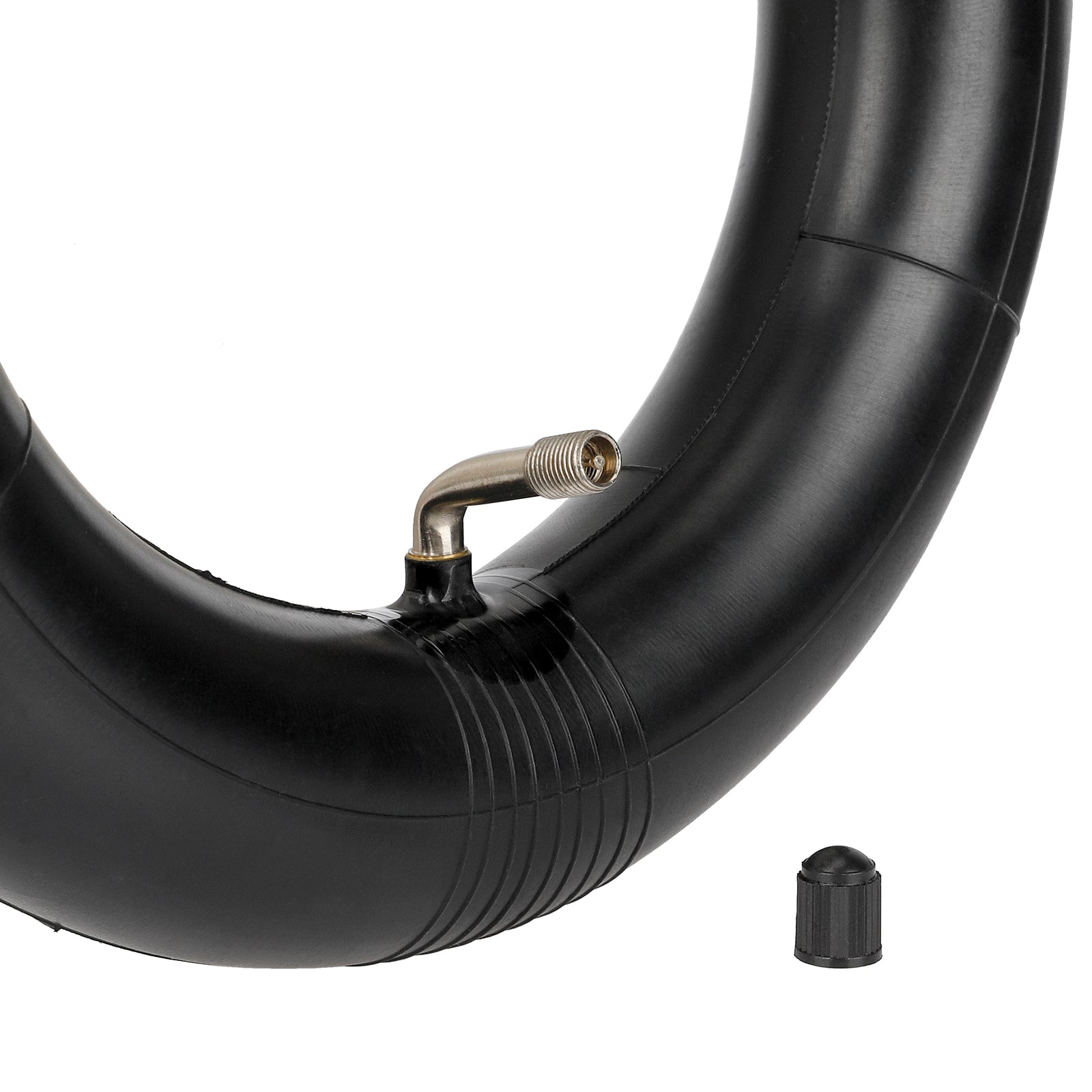

• Angled valve: length 35 mm, 90° angle.

In addition to tire size, check the valve direction and accessibility near the motor. The valve should emerge from the rim hole without tension and with enough clearance for a pump head.

Replacement without pinching the tube

• Before replacement, identify the cause of the puncture in the tire or rim. A foreign object, sharp edge, or damaged rim tape can immediately damage the new inner tube.
• Inflate the tube slightly, align the valve with the opening, and distribute it evenly within the tire. When seating the bead, avoid pinching it with mounting tools.
• Inflate to the pressure allowed for the wheel assembly. Check valve position and sealing; do not use the valve cap to stop a leak.
