TF-100 6-pin Display with Throttle for Electric Scooter KuKirin M4 Pro

TF-100 display and throttle trigger in one unit

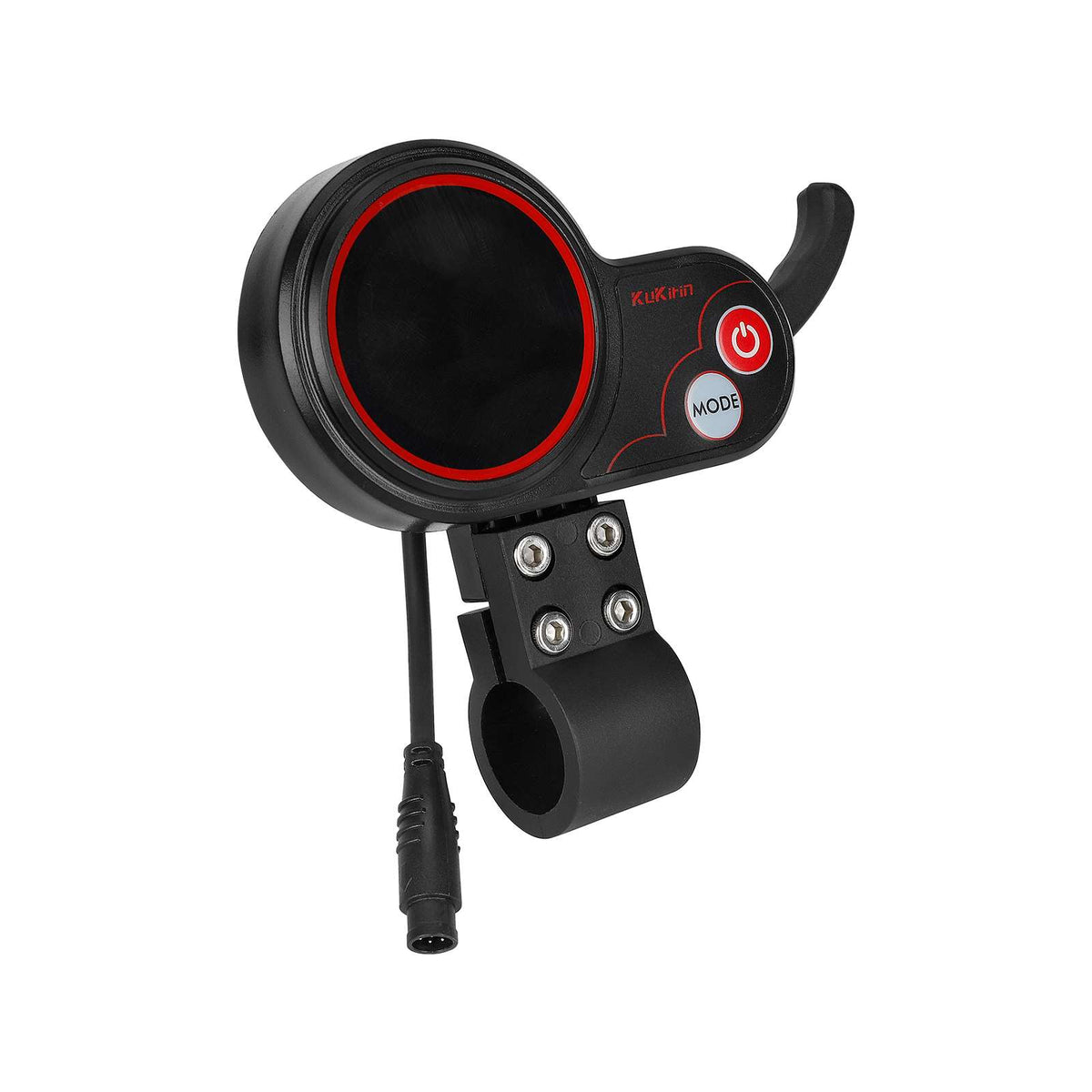

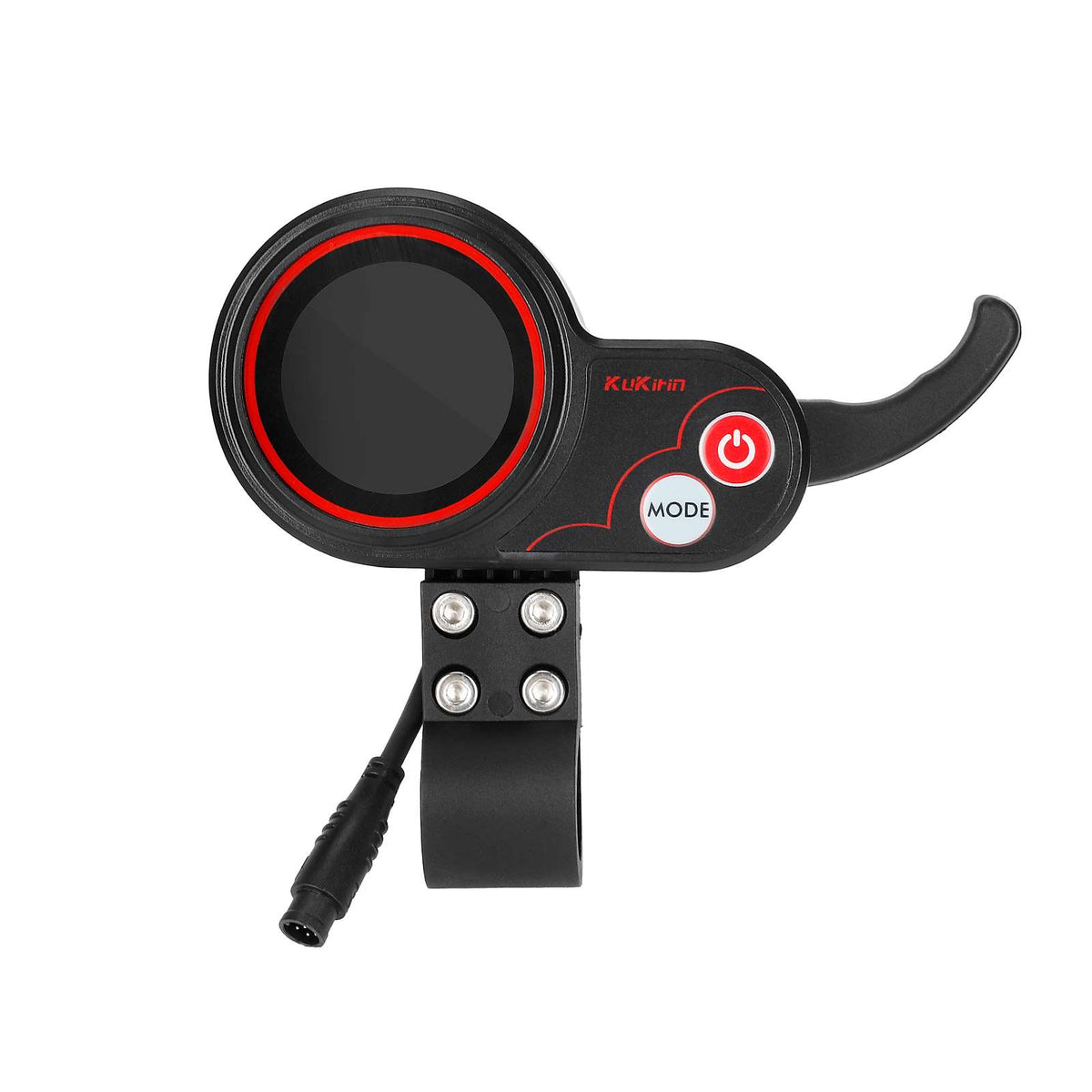

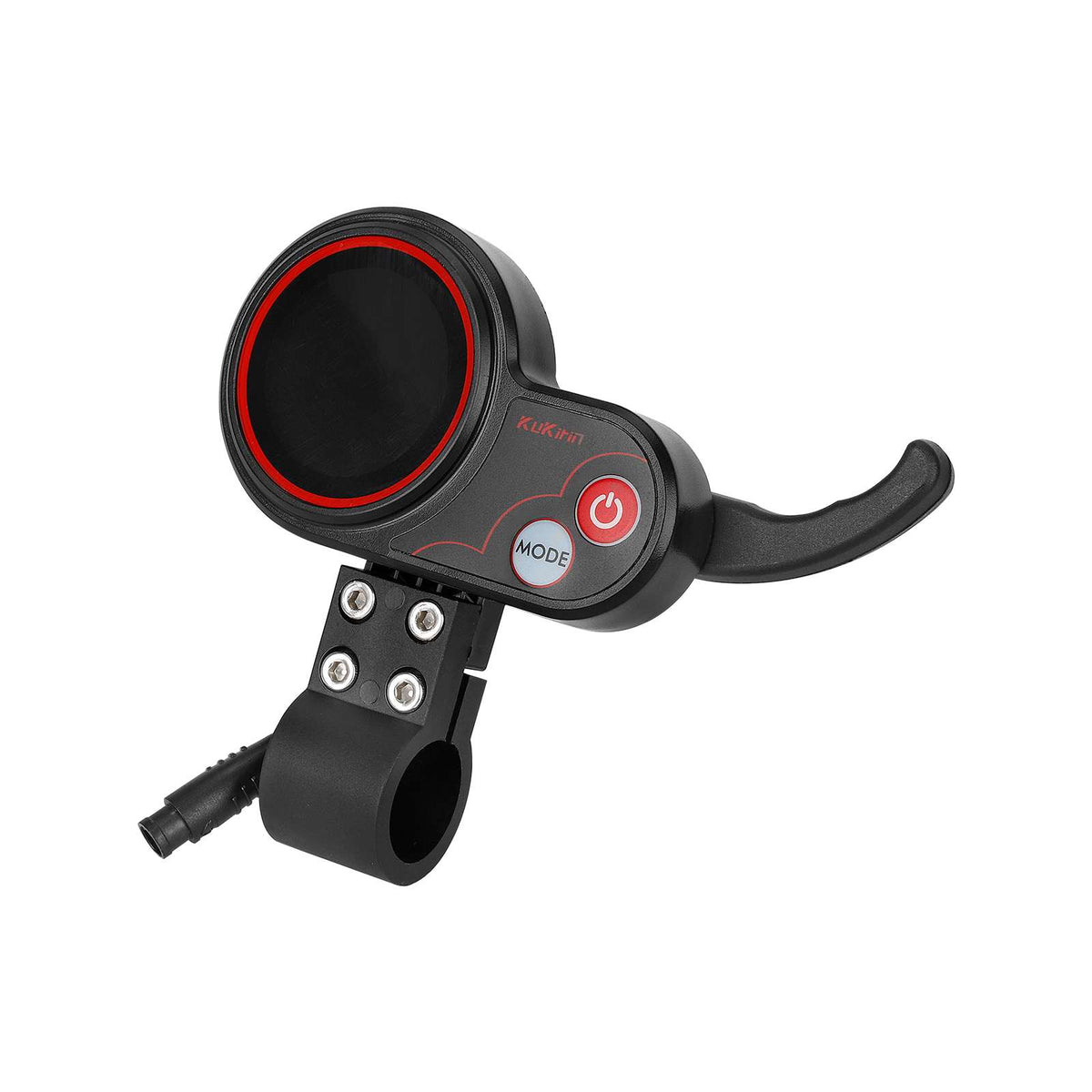

The TF-100 combines a round display, throttle trigger, and power/mode buttons. The black housing with a red edge attaches to the handlebar with a clamp; connection is via a 6-pin connector.

Features and fitment

• Model: KuKirin M4 Pro.

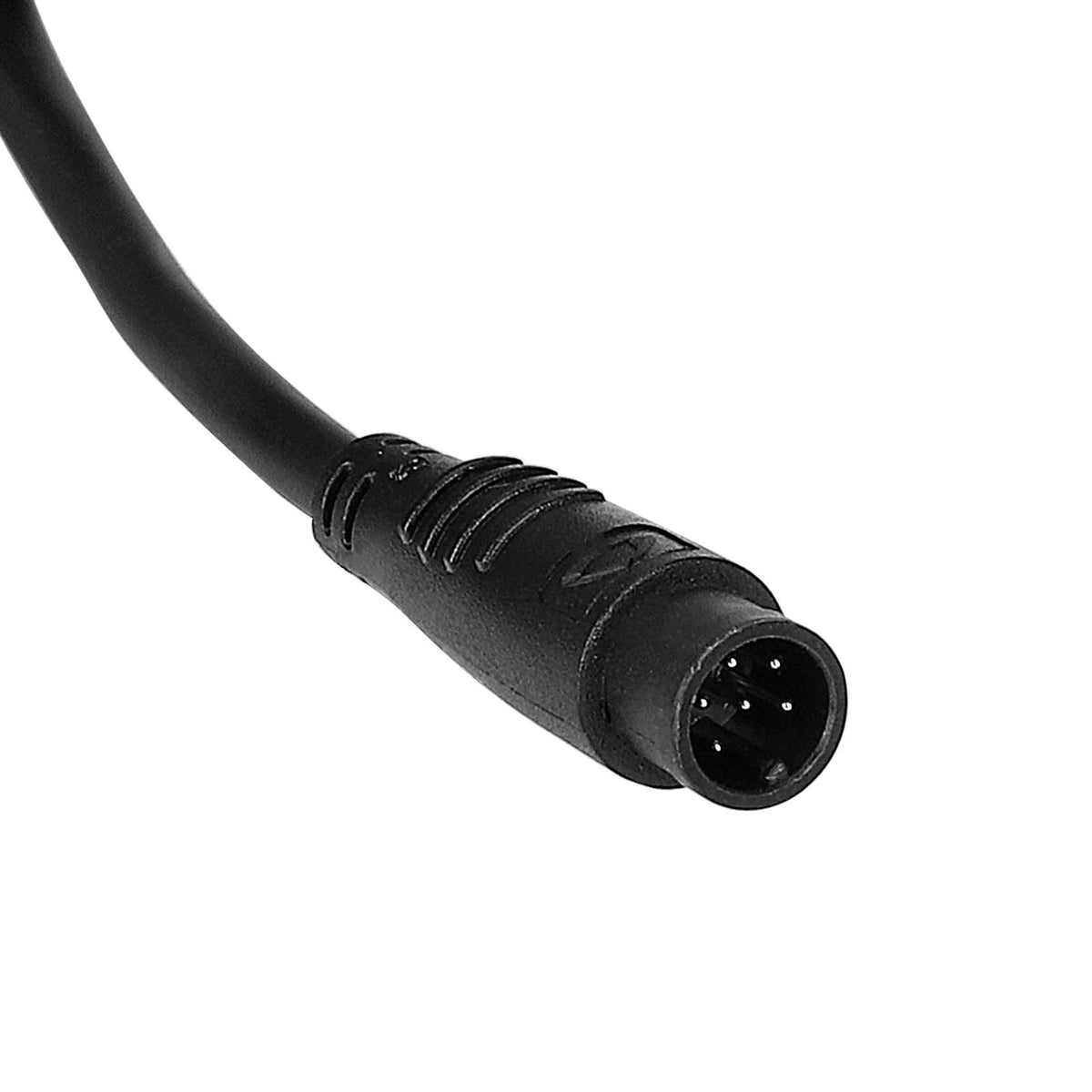

• TF-100; round display, throttle trigger, and power/mode buttons; 6-pin connector.

Approximate dimensions

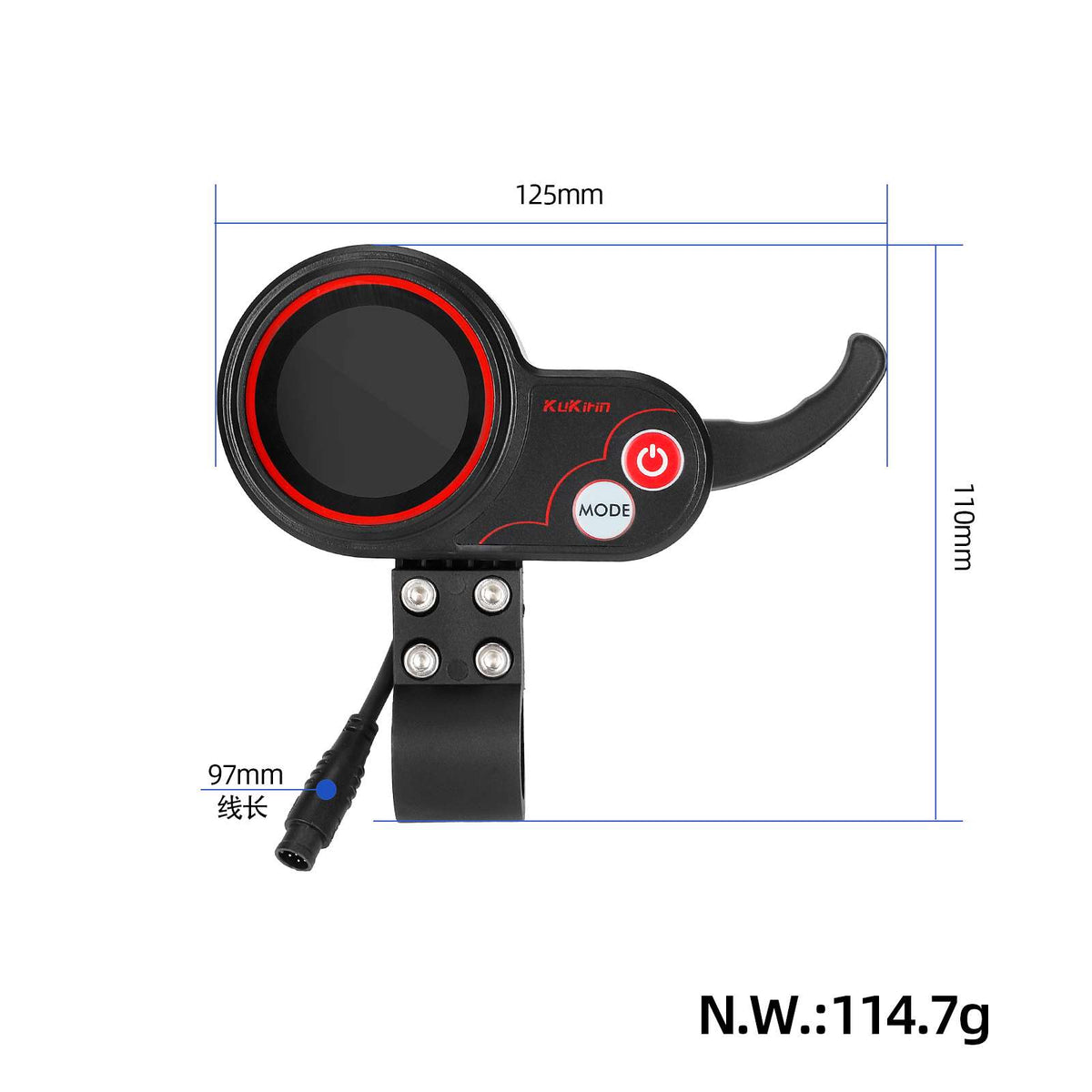

• Display: 125 × 110 mm.
• Cable length: 97 mm.

For correct operation, the display must match the controller communication and the 6-pin connector pinout.

Replacing the electronic assembly

• Turn off the vehicle and disconnect the battery according to the prescribed procedure before starting. Record the position of each connector before removing the old unit.
• Attach the new assembly to the intended mounting points, protect the connections, and keep cable routing free from pinching. Adjust settings to match the actual vehicle configuration.
• Before full load, check the display, drive response, and brake sensing. If there are mismatched connectors or communication errors, have a technician verify compatibility.
