Grey Side Stand for Electric Scooter KuKirin G2 Pro DB

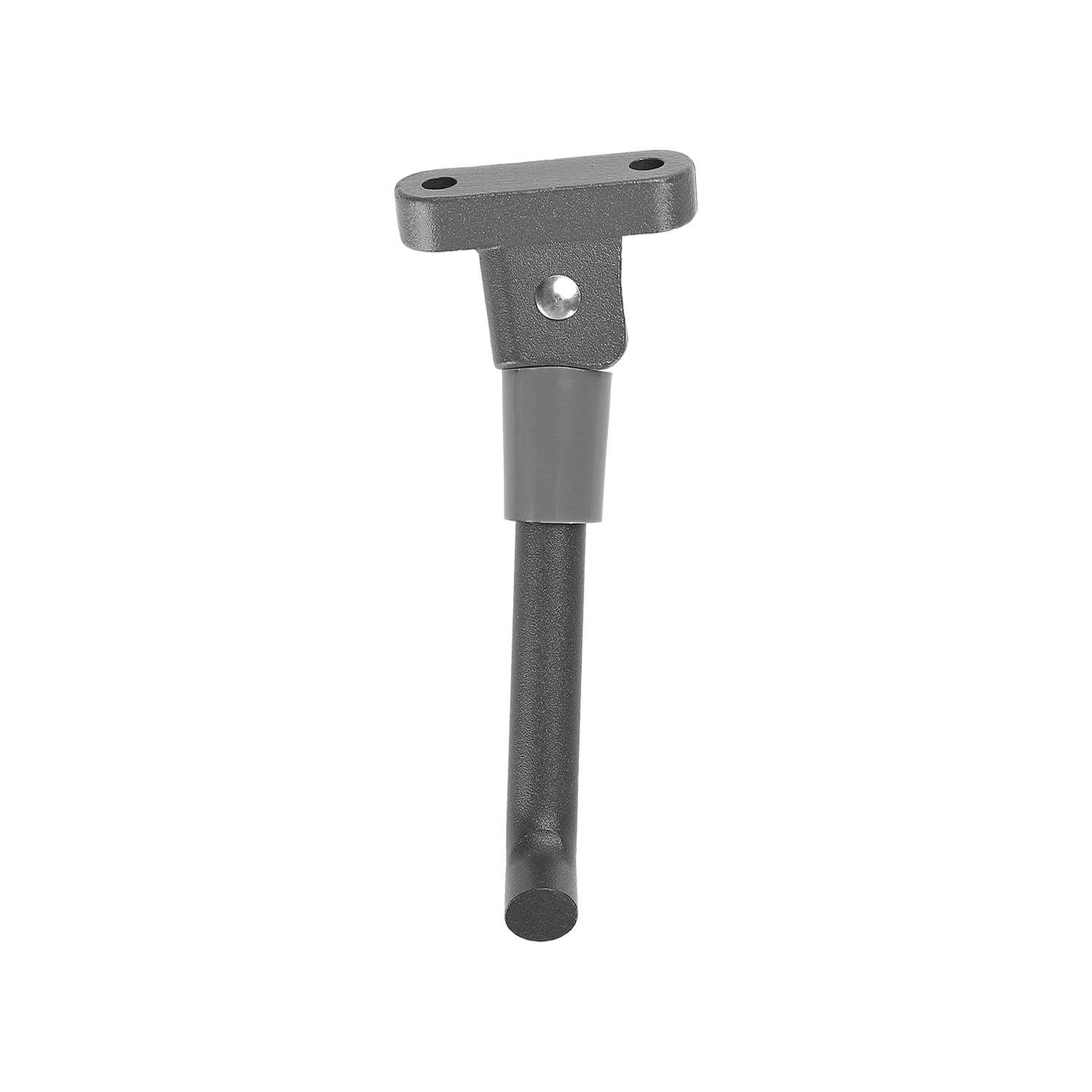

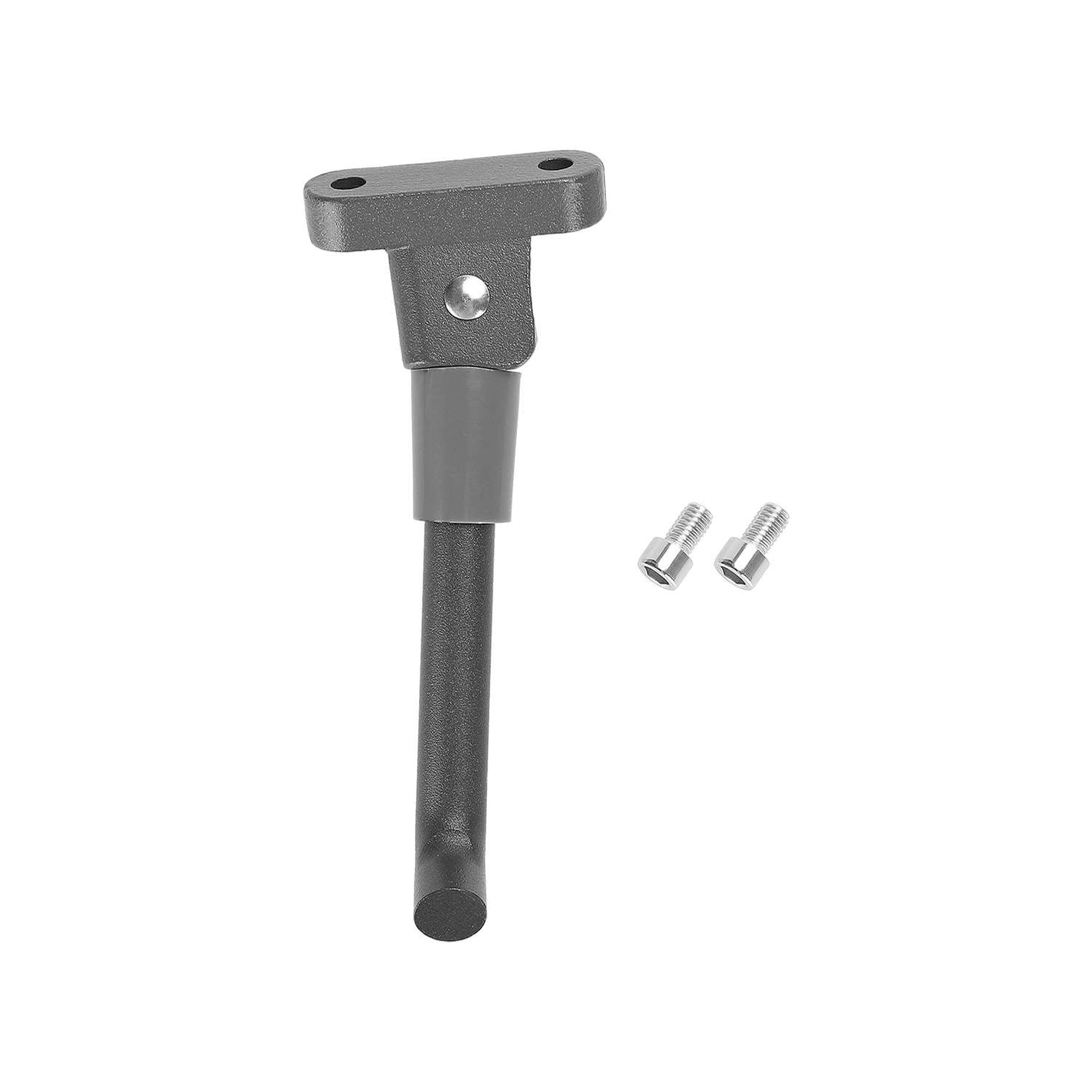

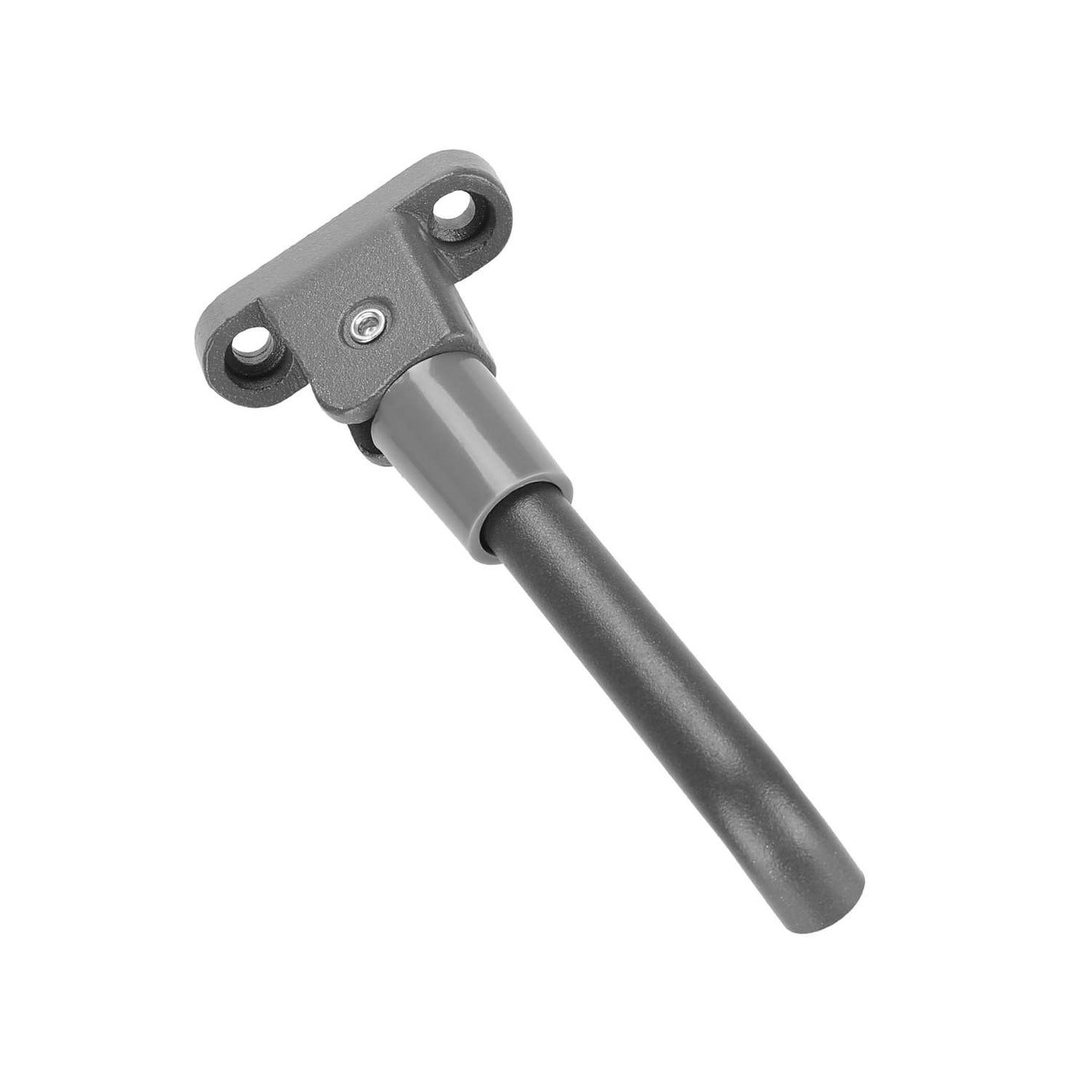

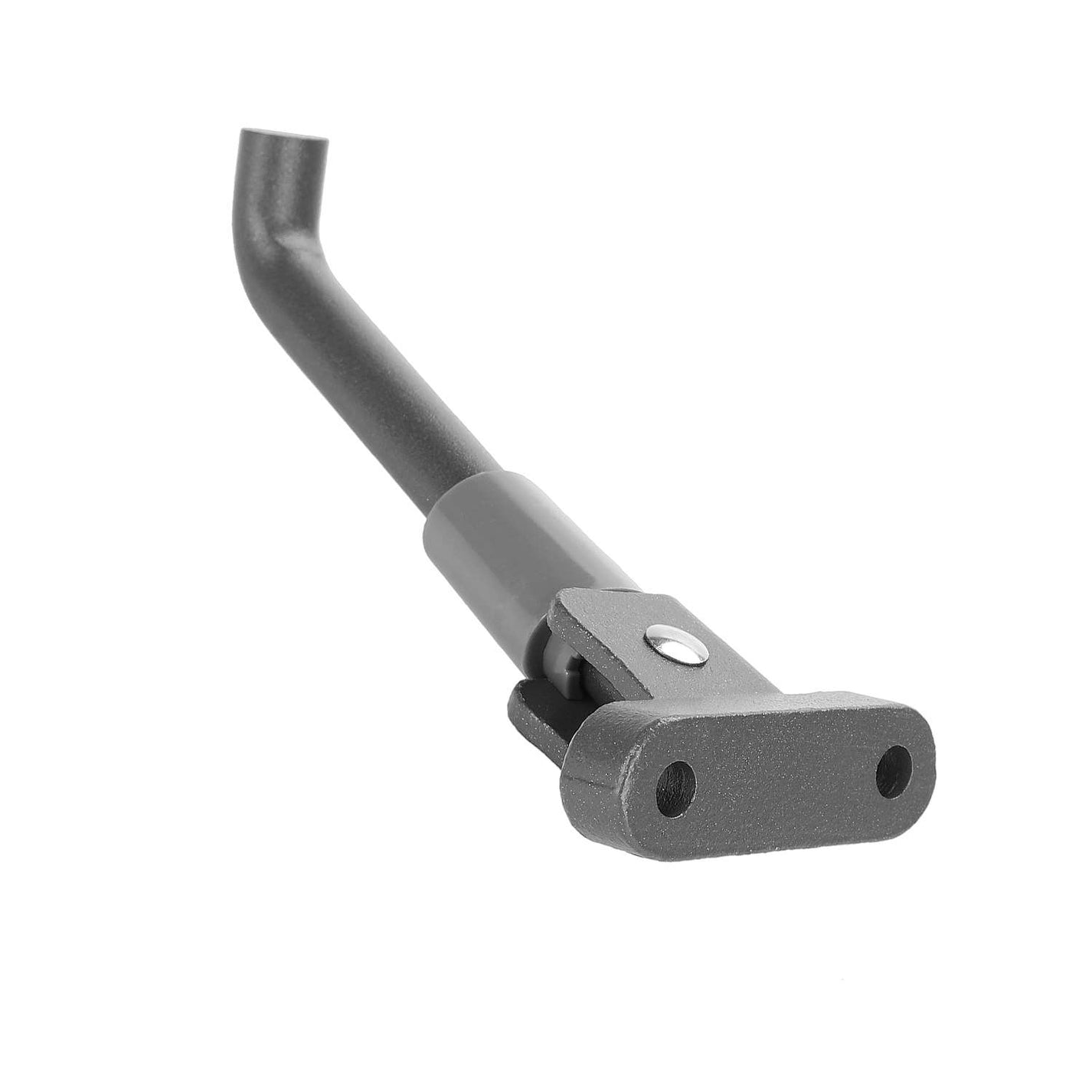

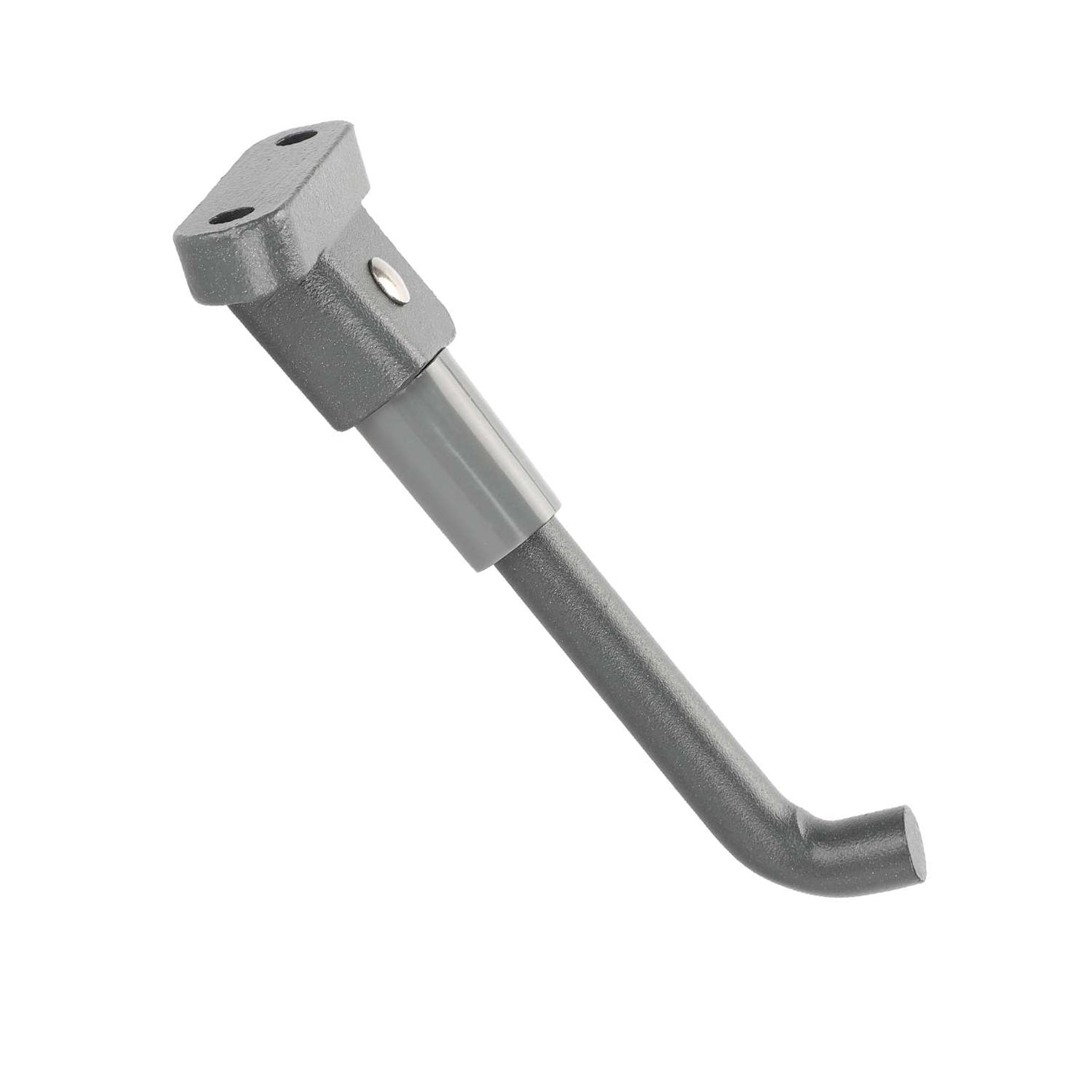

Grey side kickstand with two mounting bolts

The side kickstand features a grey top mount, a darker leg, and two included bolts. The length of approximately 140 mm is intended for the low chassis of the compatible scooter.

Features and fitment

• Model: KuKirin G2 Pro DB.
• Grey side kickstand; two holes spaced approximately 40 mm apart; two bolts; length approximately 140 mm.

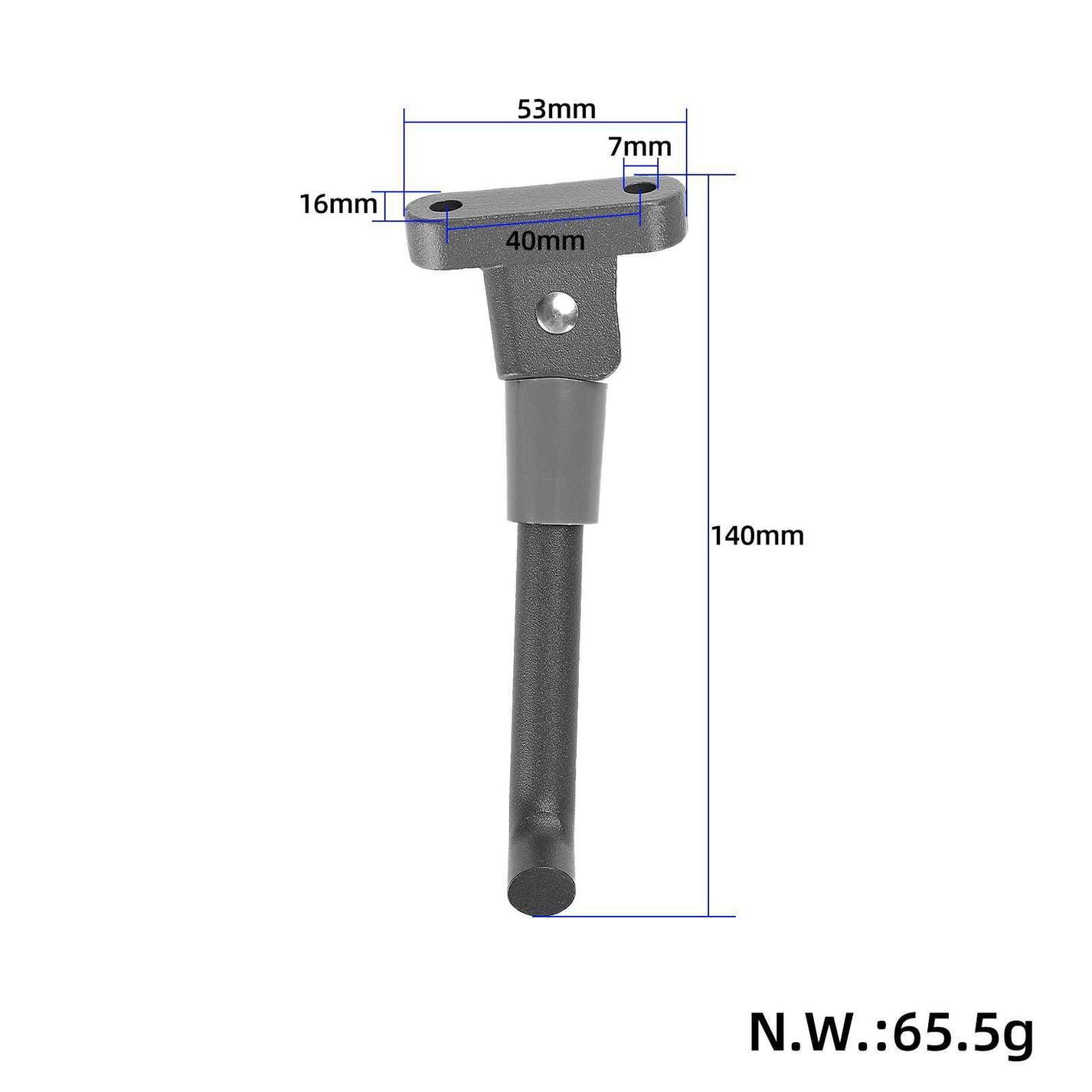

Approximate dimensions

• Kickstand length: 140 mm.
• Mounting plate: 53 × 16 mm.
• Hole spacing: 40 mm.
• Hole diameter: 7 mm.

The mounting hole spacing is approximately 40 mm. Check the mount position and the tilt of the parked scooter. When in the folded position, the leg must remain clear of the ground and moving parts.

Stable support for parking

• Attach the kickstand to the designated part of the frame and adjust the length for a moderate tilt of the parked vehicle. Setting it too short or too long reduces stability.
• Check that the folded kickstand does not hit the wheel, brake, or drivetrain components. Before letting go, ensure the vehicle is parked stably on a solid surface.
• The kickstand is intended for parking only. Do not add extra body weight while sitting on the vehicle, and check the mount and bolts after any strong impact.
