Throttle lever with lock for KuKirin G2 Max electric scooter

Throttle lever and ignition lock with five contacts

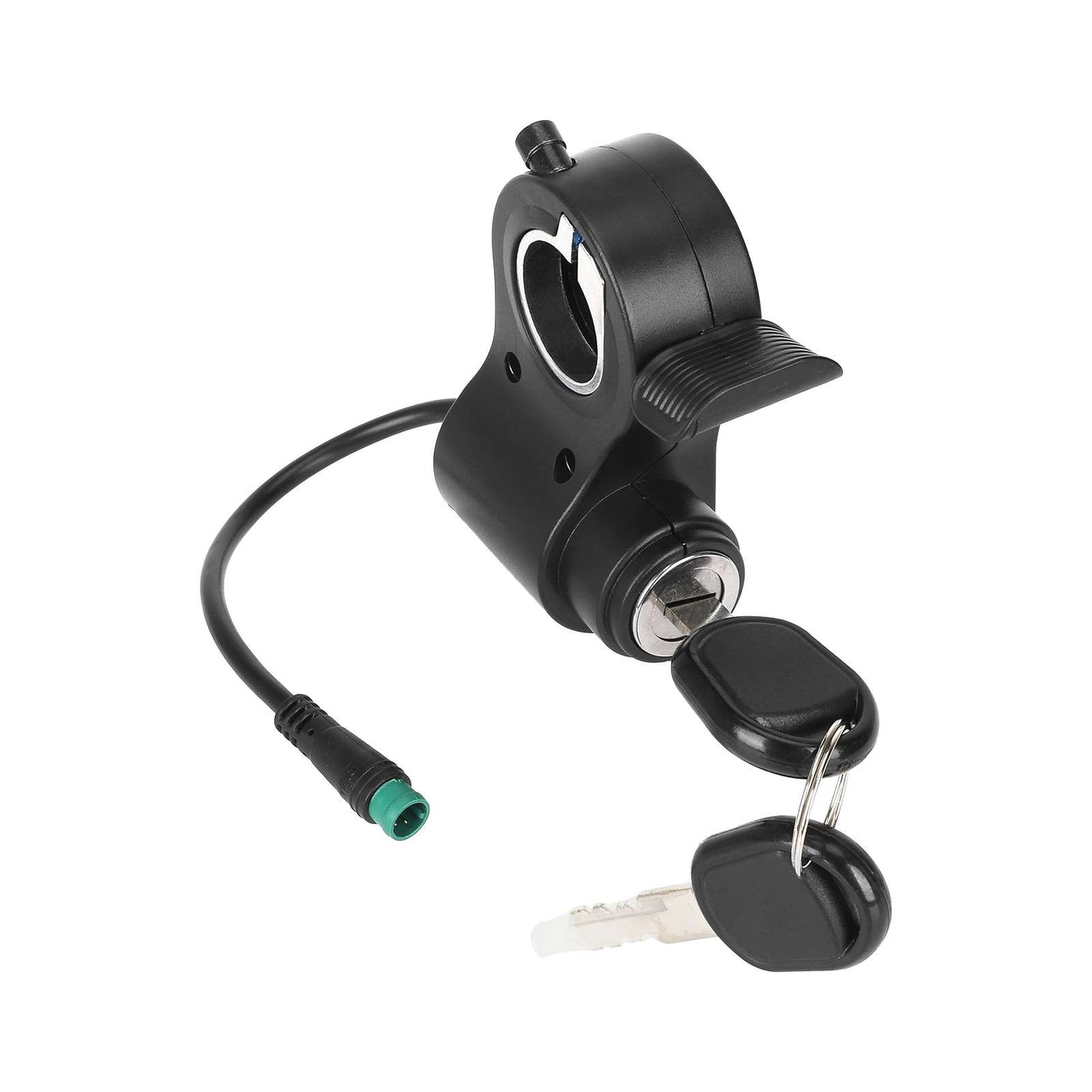

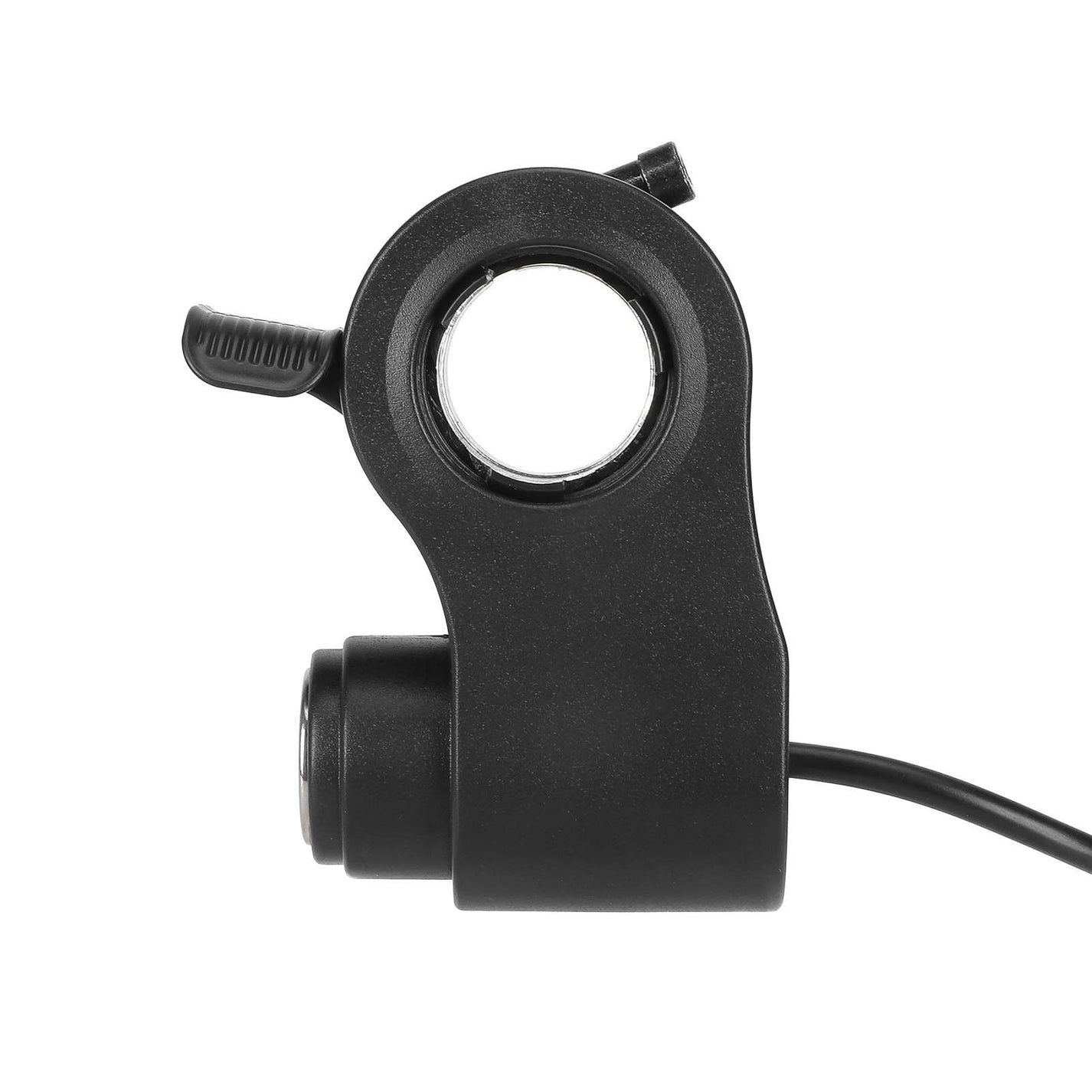

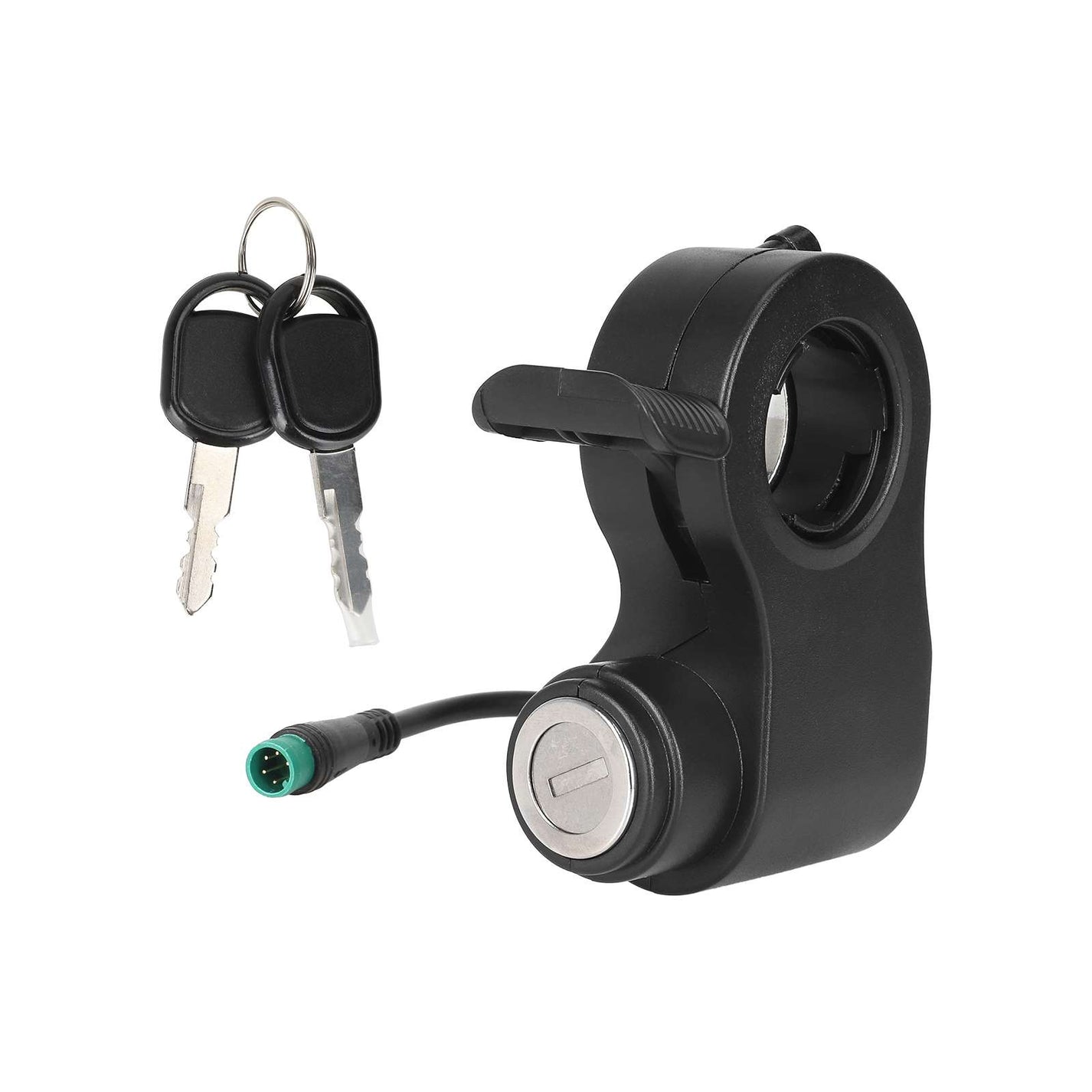

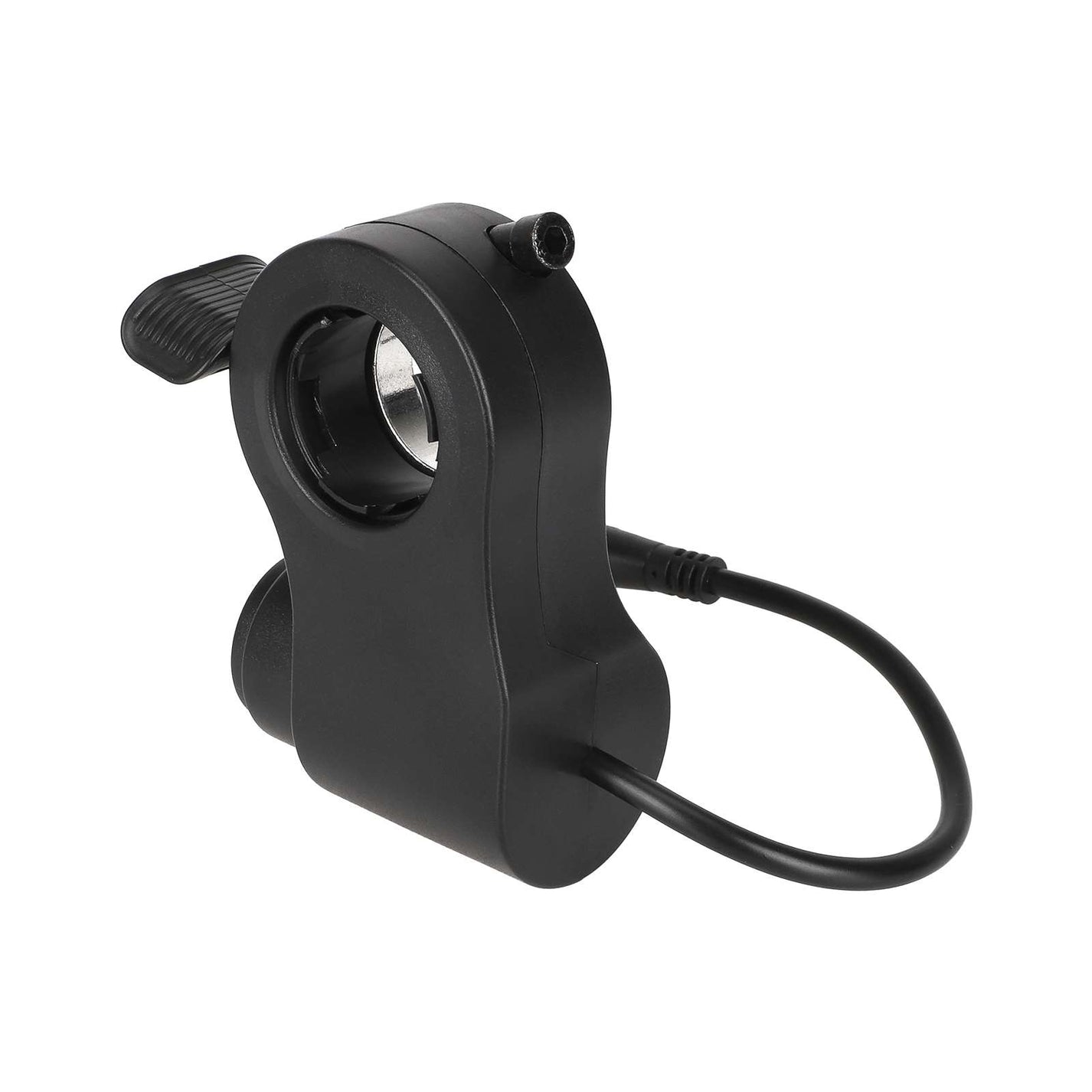

The black unit combines a thumb throttle and an ignition lock. Two keys are included, and the electrical connection is made via a green five-pin connector.

Features and fitment

• Model: KuKirin G2 Max.
• Black throttle with lock and two keys; green connector; cable approx. 165 mm.

Approximate dimensions

• Cable: 165 mm.
• Cable length: 165 mm.

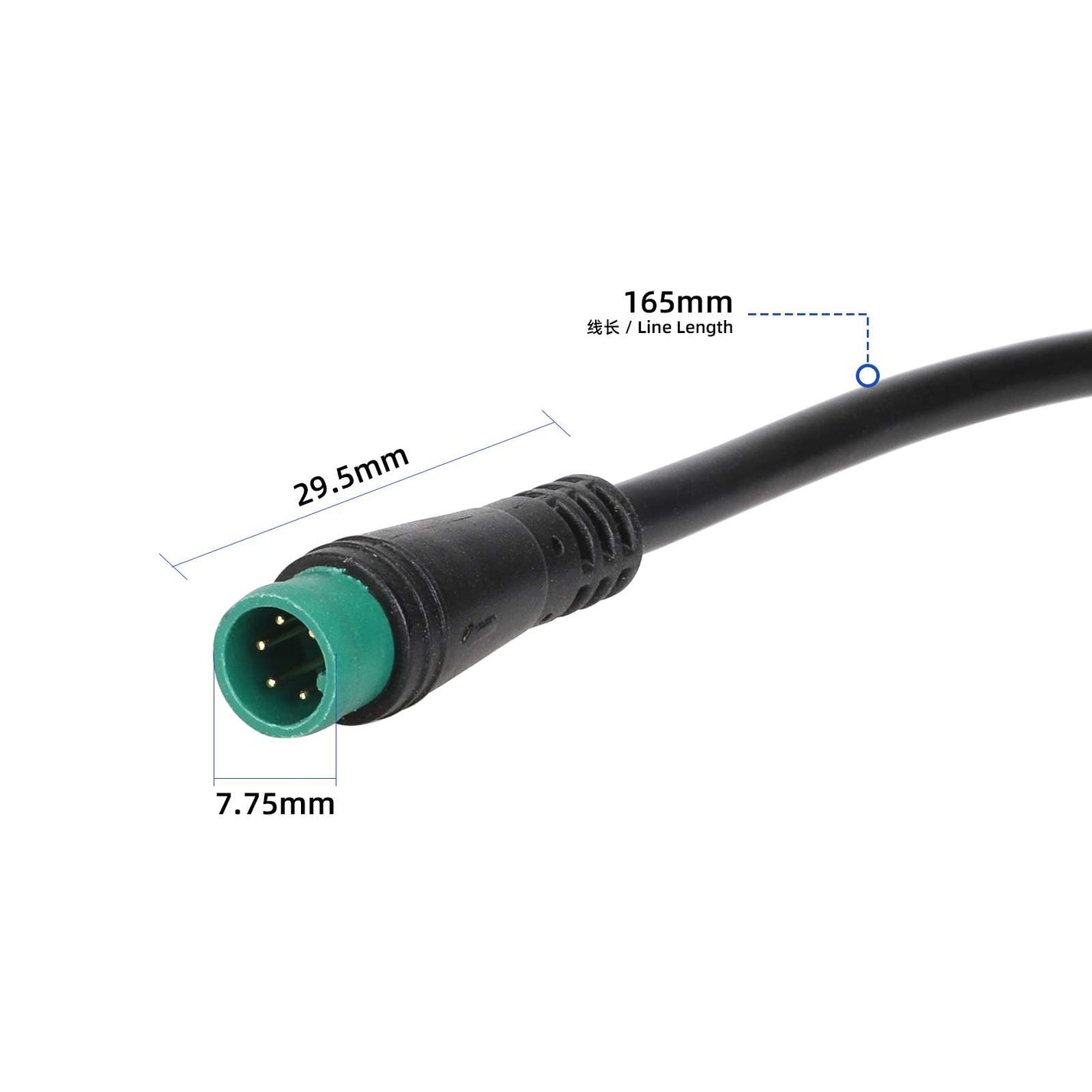

• Connector: length 29.5 mm, diameter 7.75 mm.

The cable is approximately 165 mm long. Before purchasing, count the contacts on the old throttle; a similar six-pin version uses a different connection. Also check the space for the key next to the brake lever and ensure free throttle return.

Installation and response check

• Before replacing, turn off the vehicle and disconnect the power according to the service procedure. Compare the contacts and plug in the connector without forcing.
• Route the cable so it does not stretch during full handlebar rotation. Mount the throttle so that the moving part has enough space and returns immediately after release.
• Before riding, test the throttle response and brake motor cut-off in controlled conditions. Do not use a sticking or damaged throttle.
