Semi-metallic NUTT brake pads for Kaabo Wolf King GT

Semi-metallic brake pads for compatible NUTT calipers

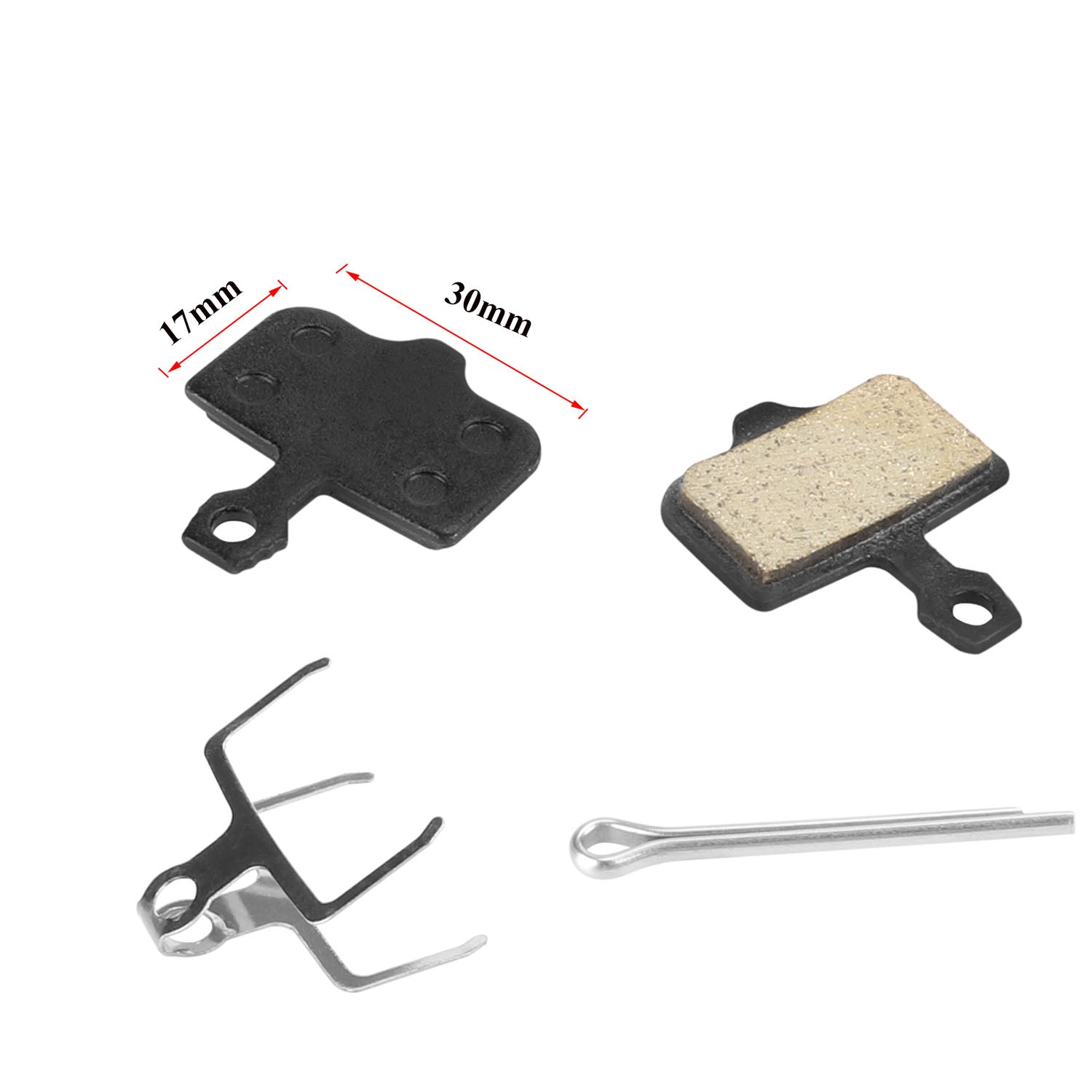

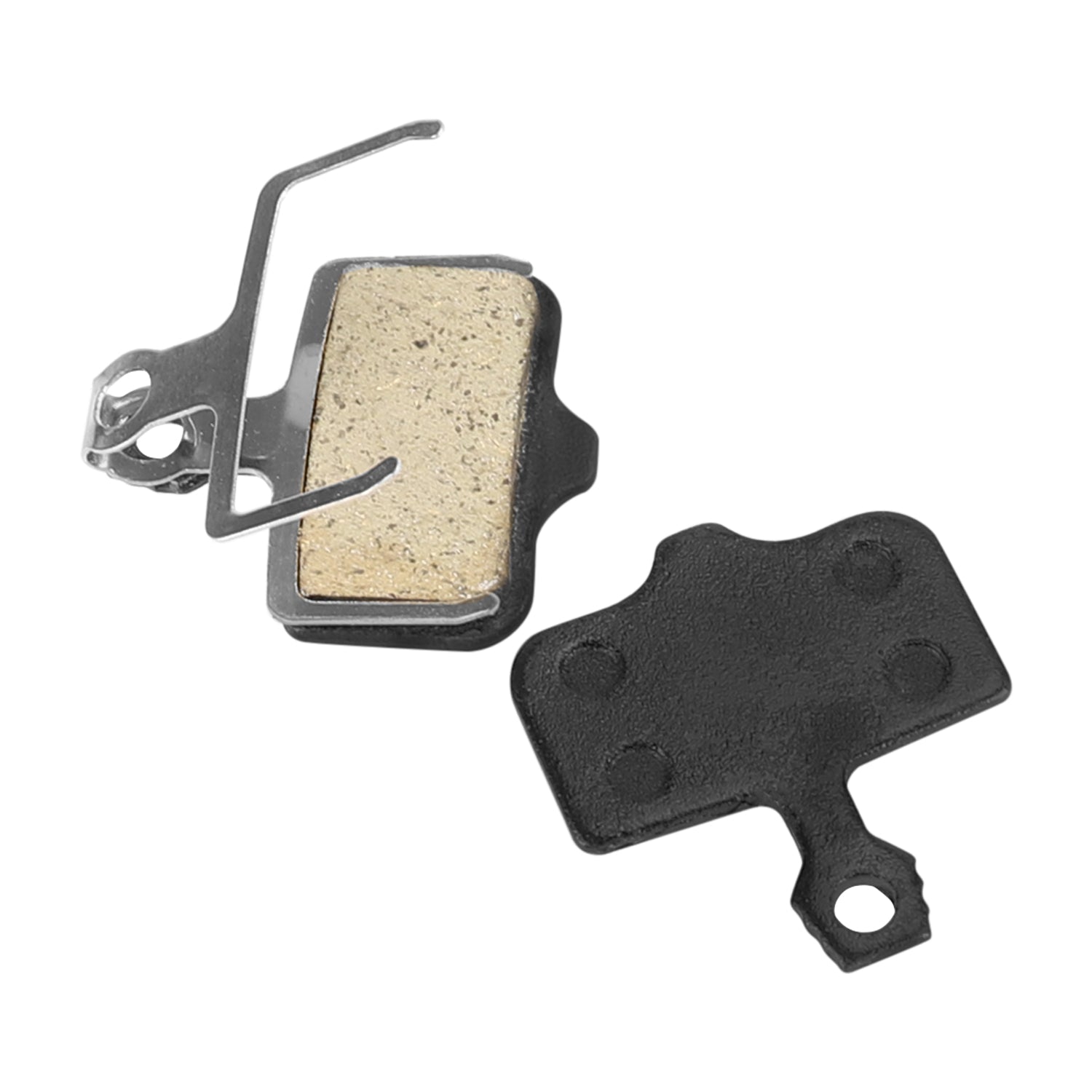

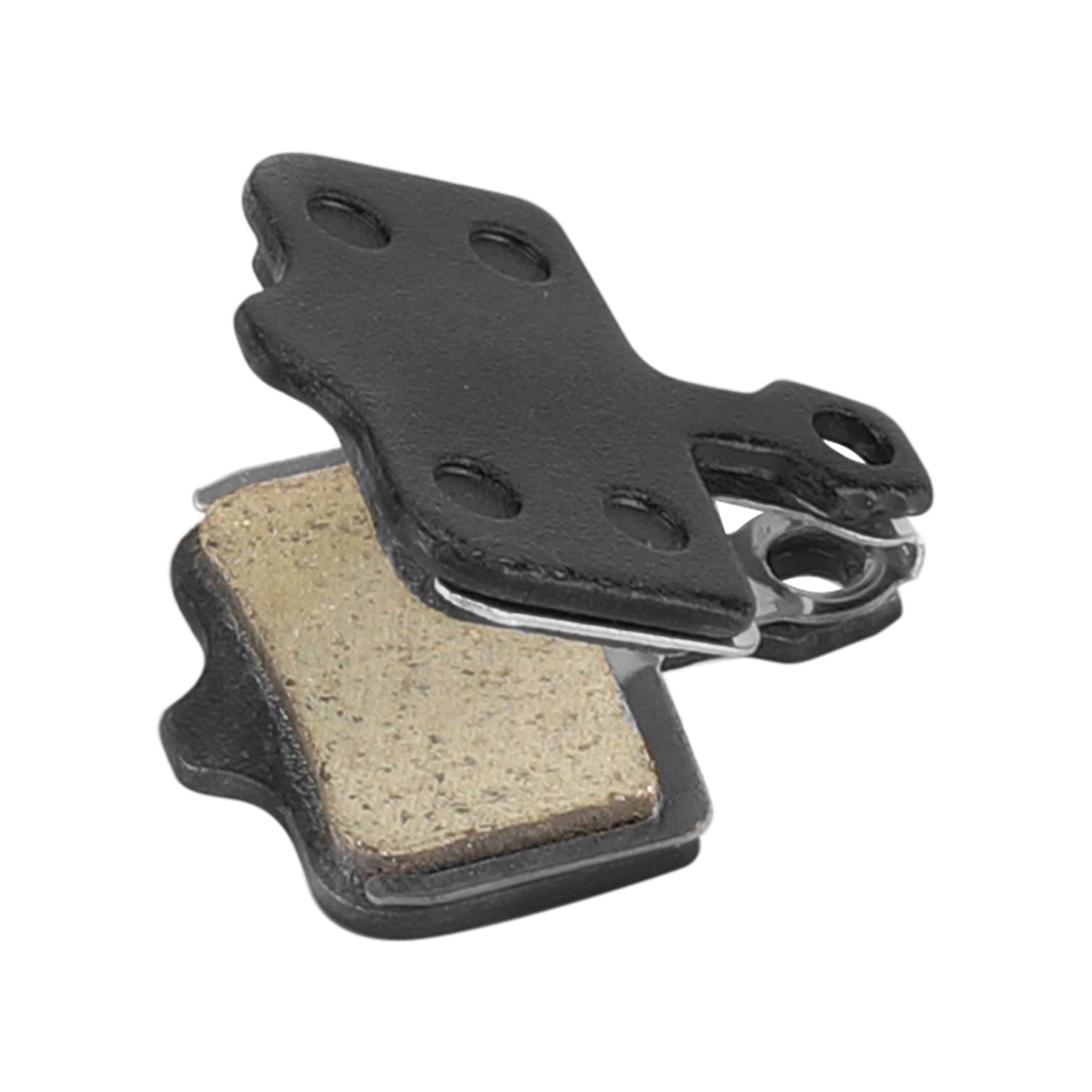

Two black plates with side tabs and a rectangular friction surface make up this pair of semi-metallic brake pads. The friction area measures approximately 30 × 17 mm; a spring and retaining clip are included.

Features and fitment

• Model: Kaabo Wolf King GT.
• Brake lining: semi-metallic.
• Black pads with a lining width of approximately 30 mm and height of 17 mm.

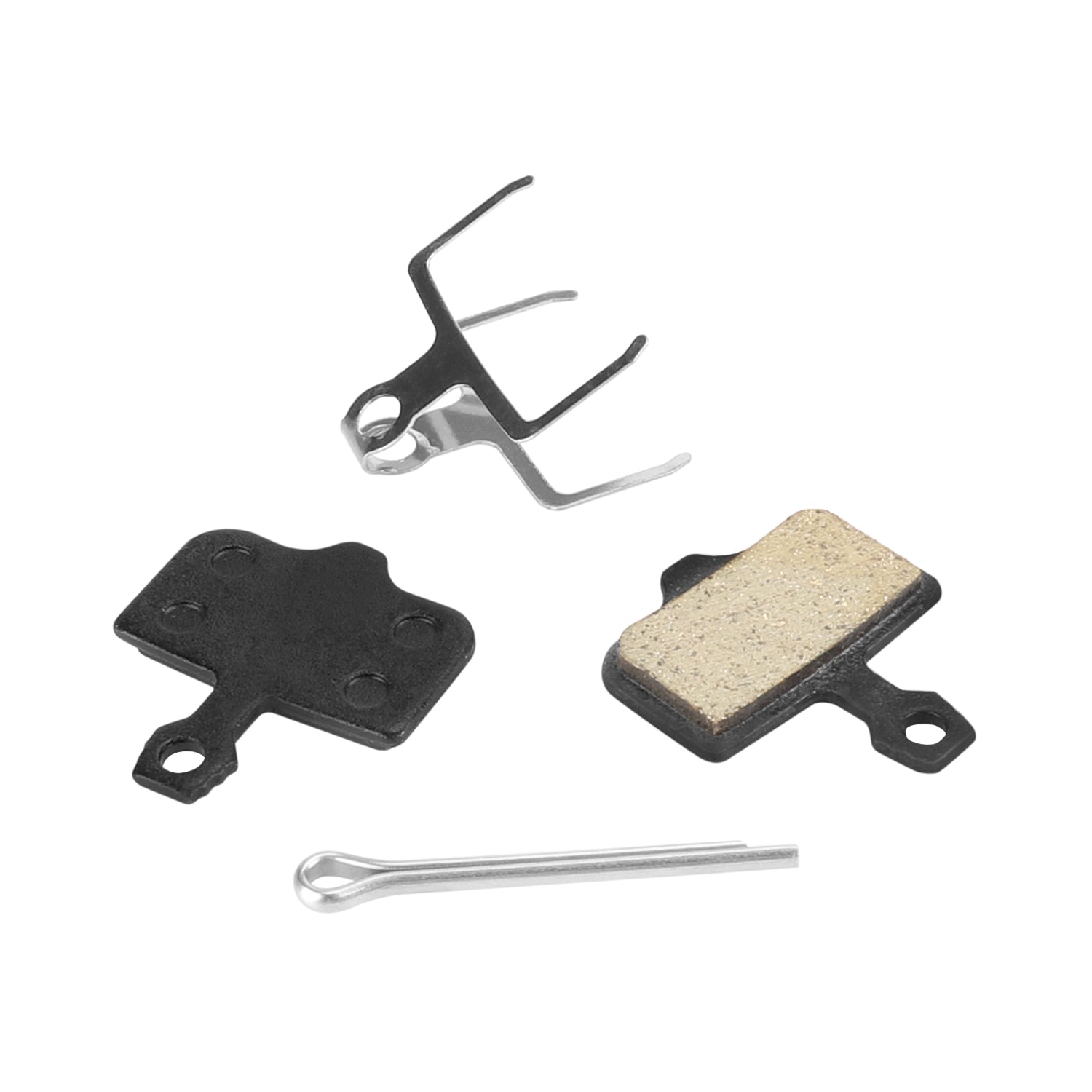

• Pair with spring and cotter pin; shape for compatible NUTT calipers.

Approximate dimensions

• Friction surface: 30 × 17 mm.

The 30 × 17 mm data refers to the friction surface, not the overall outline. Before replacing, check the installed caliper and the position of the mounting tabs, especially on vehicles with upgraded brakes.

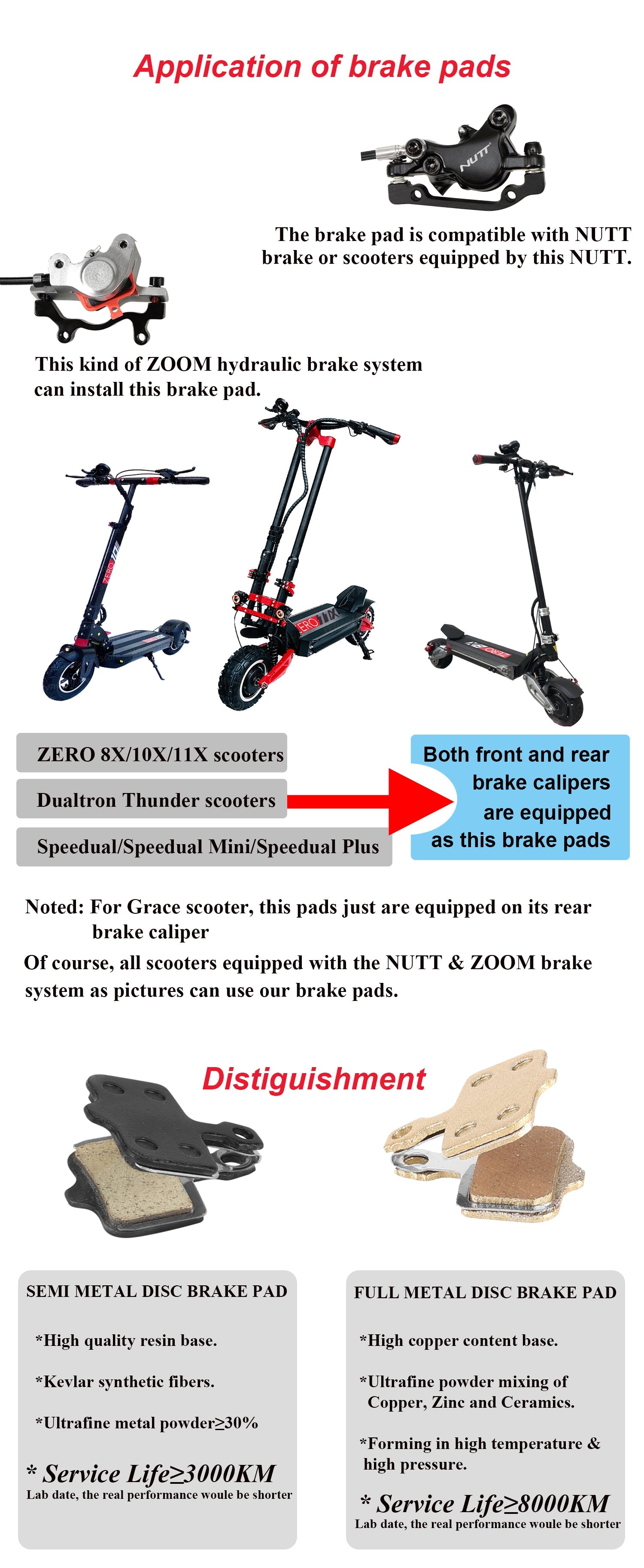

Use applies only to installed NUTT calipers with the corresponding shape and mounting style.

Brake lining

The semi-metallic lining combines metal particles and a resin binder. The compound represents a compromise between initial bite and heat load resistance. For even braking, a clean disc and gradual bedding-in of the new pair are important.

When to replace and how to start

• Inspect the pads if there is poor braking, uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manual.
• Remove the retaining clip and the old pair. According to the procedure for your caliper, prepare the space for the new pads, then insert the spring, the new pair, and the clip. Do not grease the friction surfaces.
• Check the free rotation of the wheel and the operation of the lever. Bed in the new pads with several gradual decelerations in a safe area, without locking the wheel.
