Brake disc 160 mm for Rovoron R7 – mounting bolt circle 50 mm

160 mm disc with 50 mm hole spacing

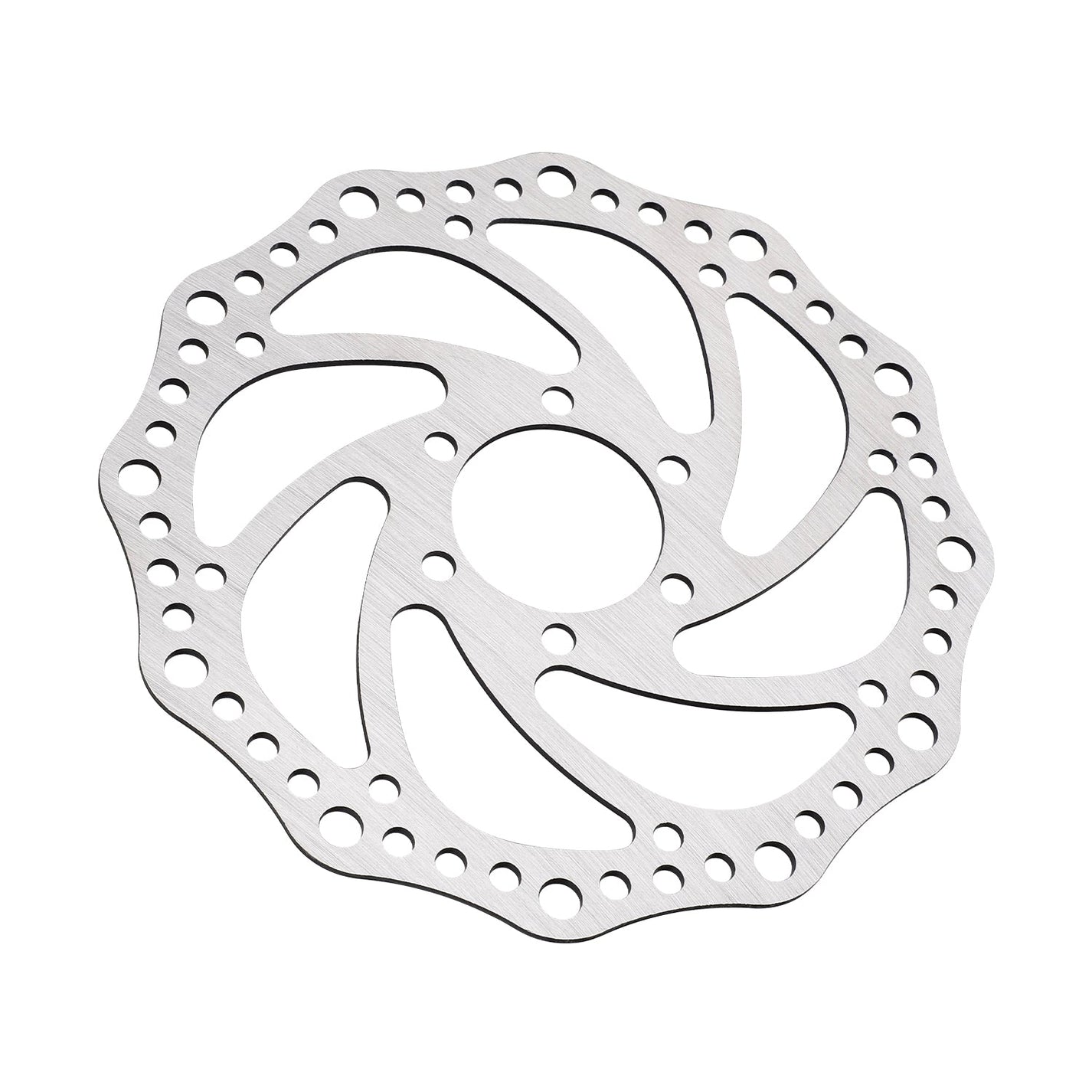

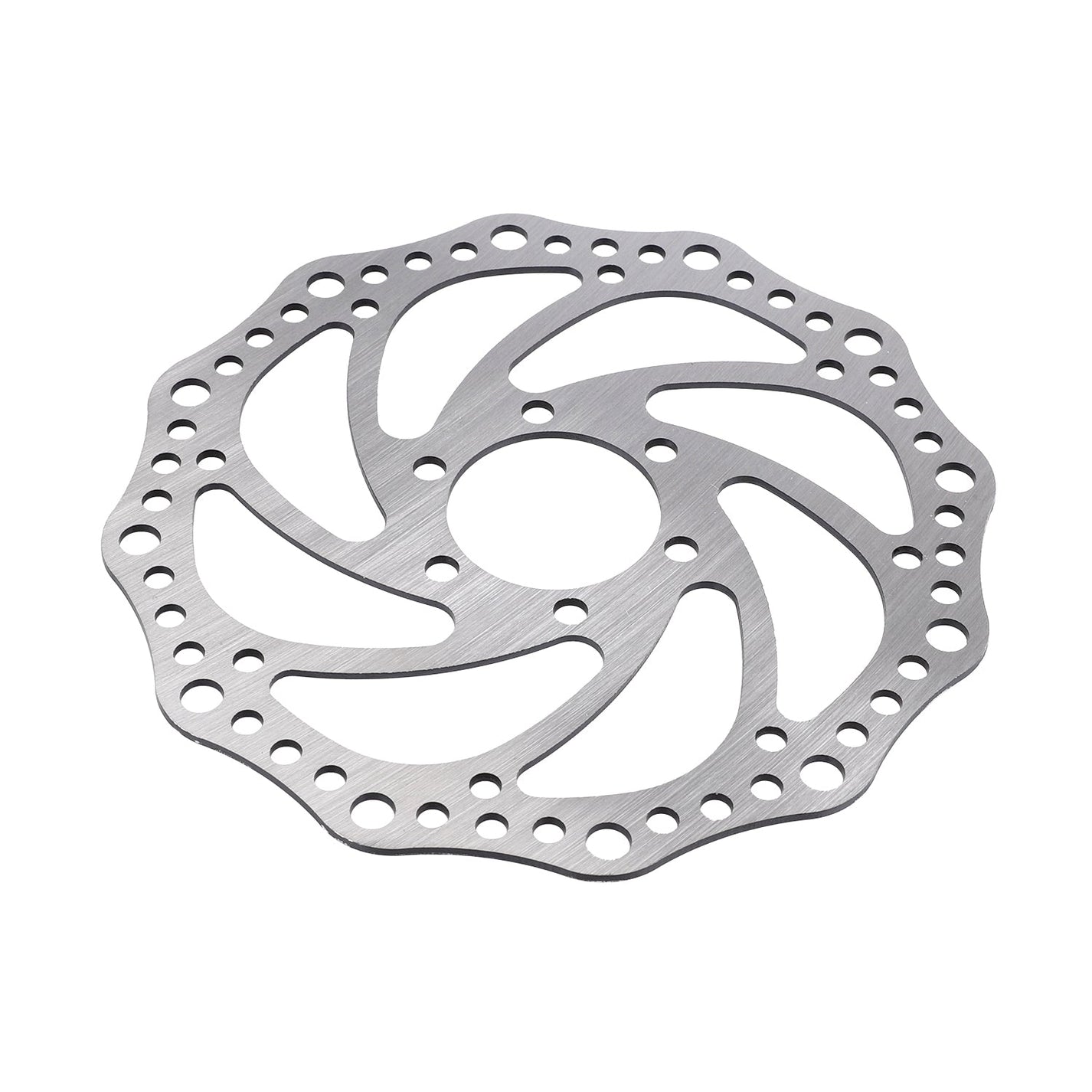

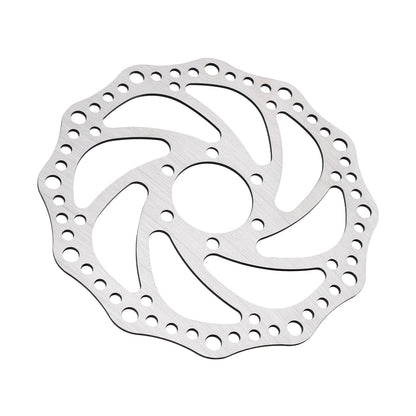

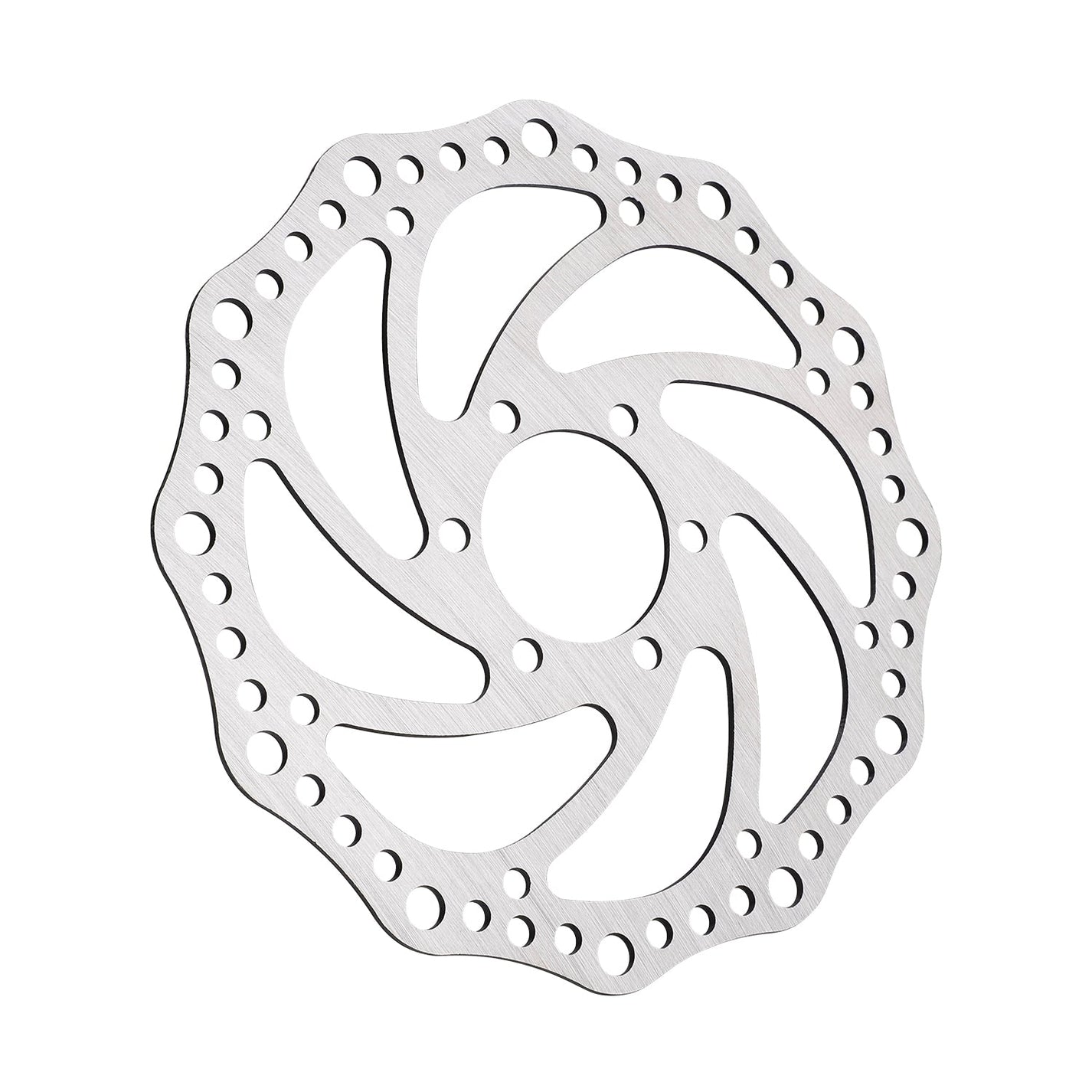

The 160 mm silver brake disc has six holes on a 50 mm mounting circle. A wavy outer edge and openings along the braking surface define its distinctive shape.

Features and compatibility

• Model: Rovoron R7.
• Diameter 160 mm; 6 holes; 50 mm bolt circle.

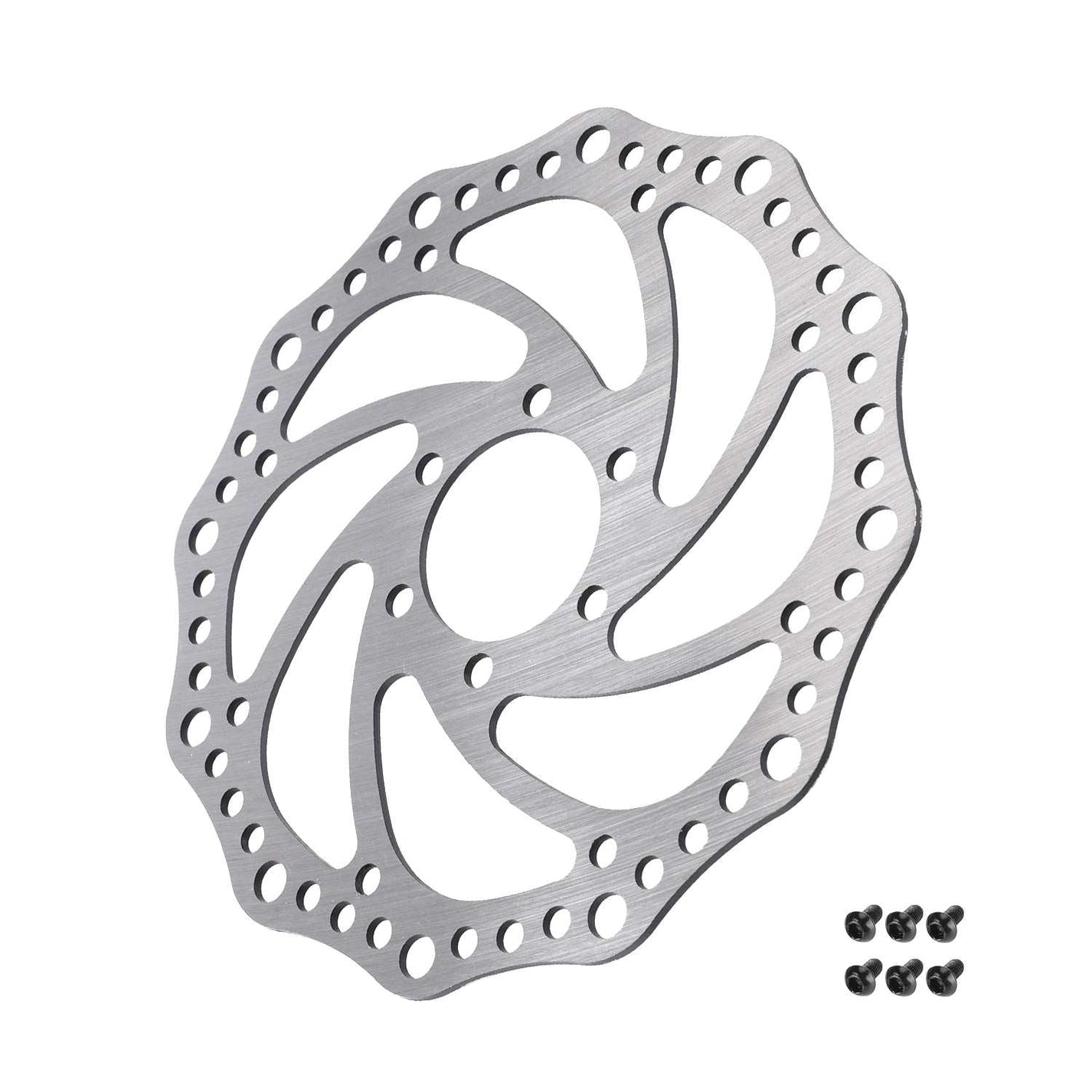

• Six bolts.

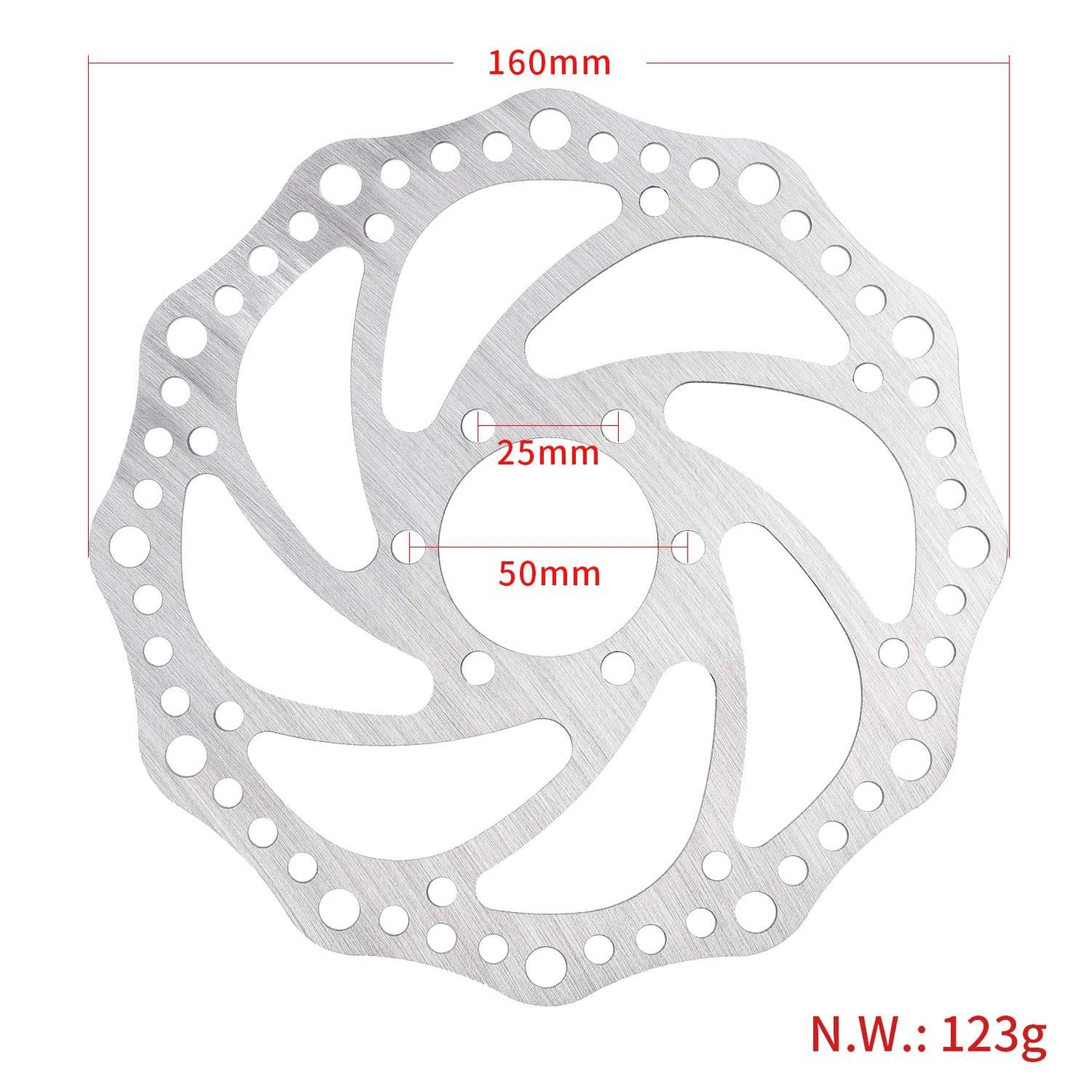

Approximate dimensions

• Disc diameter: 160 mm.
• Bolt circle: 50 mm.
• Spacing between adjacent holes: 25 mm.

The spacing between adjacent holes is 25 mm. The disc attaches to a suitable six-bolt hub with a 50 mm bolt circle.

Disc replacement and alignment

• Replace the disc if there are cracks, permanent deformation, or wear below the minimum thickness. If rubbing occurs, first check the caliper alignment.
• Clean the hub mounting surface and install the disc in the marked direction of rotation. Tighten the bolts gradually in a cross pattern to the specified torque.
• Keep the braking surface clean and free of oil. After assembly, check for free rotation and braking performance; a new disc and pads require proper bedding-in.
